NRS Healthcare S09347 User Instructions

S09347
General Safety Warning
Please make sure that you read and follow these
instructions carefully. Keep these instructions in
a safe place for future reference.
1.

INTENDED USE

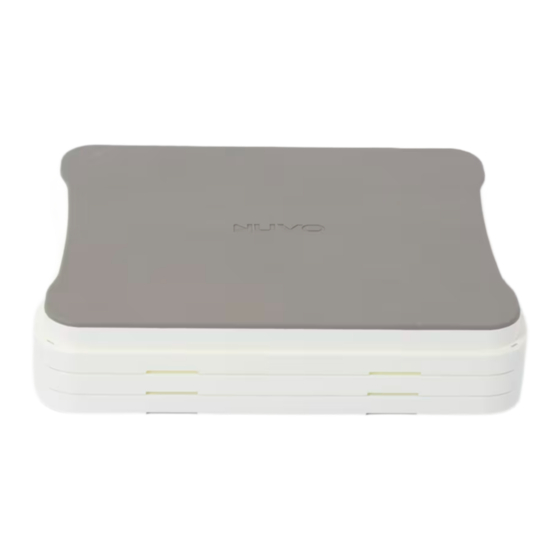

The NUVO Adjustable Bath-Step has been designed to assist users transferring into and out of the bath
by reducing the step-over height. It can also provide assistance when using the toilet or sink in a bathroom
environment.
2.

SAFETY

WARNING: The maximum user weight must not be
more than 317Kg (50st).
WARNING: The maximum step height is 175mm
(7") using 6 step sections (2 packs).
DO NOT: Stack more than 6 step sections together.
ALWAYS: Make sure the bottom section of the step
has 4 support pillars inserted into the base.
ALWAYS: Make sure the overmoulded section is
placed on the top.
3.

UNPACKING

Remove the packaging and check all parts carefully.
Contact your supplier immediately if parts are
missing or damaged and do not try and assemble.
3.1 Contents:
1. Overmould Step 50mm (2") x 1
2. Step 50mm (2") x 2
3. Support Pillar x 4
4.

ASSEMBLY/INSTALLATION

4.1 Single Step - 50mm (2") Step Height:
Use the single overmoulded step section.
1. Turn the overmoulded step section upside down
and lay fl at.
USER INSTRUCTIONS
ADJUSTABLE BATH-STEP RANGE
1 x Nuvo Bath Step, 2 x NRS Bath Steps & Pillars
Maximum User Weight
2. Push the four support pillars into position (see
Figure 1).
Figure 1: Insert Support Pillars
3. Turn the step over to stand on the pillars and
place in the desired location.
4.2 Two Steps - 75mm (3") Step Height:
1. Push the four support pillars into position on
one of the non-overmoulded step sections (see
Figure 1).
2. Place the overmoulded step section on top of
the fi rst.
3. Push down fi rmly to secure.
4.3 Three Steps - 100mm (4") Step Height:
1. Place a third step section inbetween the bottom
section and the overmoulded top section.
2. Push down fi rmly to secure.
1
50st
317kg
