NRS Healthcare NUVO S05883 User Instructions

S05883
General Safety Warning
Please make sure that you read and follow these
instructions carefully. Keep these instructions in
a safe place for future reference.
1.

INTENDED USE

The height adjustable NUVO Open Back Toilet Frame has been designed to assist those who have diffi culty
in lowering onto, or rising from a standard toilet. They can also be used in conjunction with a raised toilet
seat.
2.

SAFETY

WARNING: The maximum user weight must not be
more than 190Kg (30st).
MAKE SURE the fl oor surface is level and even to
avoid rocking.
MAKE SURE all legs are set at the same height to
avoid rocking.
DO NOT use if the rubber feet are damaged.
Inspect the product at regular intervals for signs of
wear or damage.
3.

UNPACKING

Remove the packaging and check all parts carefully.
Contact your supplier immediately if parts are
missing or damaged and do not try and assemble.
1
4
NUVO OPEN BACK TOILET FRAME

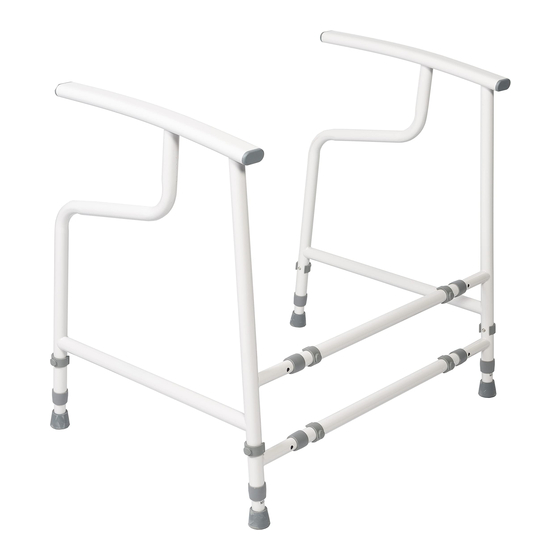

NUVO Open Back Toilet Frame
2
3
5
USER INSTRUCTIONS
3.1

Contents:

1. RH Side Frame Assembly x 1
2. LH Side Frame Assembly x 1
3. Connecting Crossbars x 2
4. E-clips x 8
5. Legs Extensions x 4
4.

ASSEMBLY

4.1

Fitting the Connecting Crossbars

1. Connect the 2 x connecting crossbars to the
side frame assemblies and set to the correct
width for the toilet and user.
2. Align the holes and secure with the 4 x e-clips.
Note: Make sure that the the side frames have been
set to the same width and the e-clips are fully secure.
1
Maximum User Weight
30st
190kg
