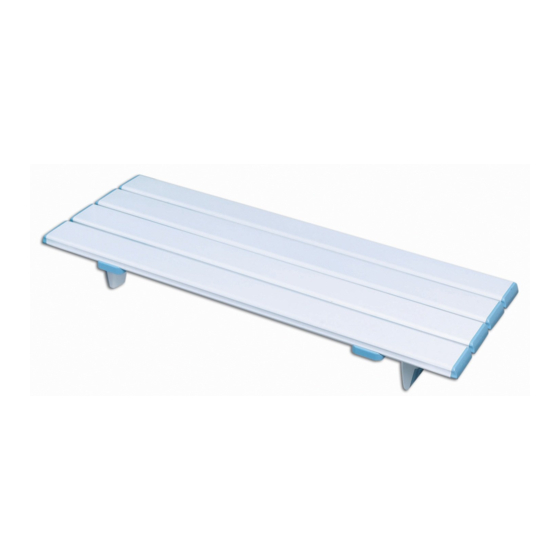

NRS Healthcare L71158 User Instructions

L71134 Bath Board 26½" (673 mm)
L71158 Bath Board 28½" (724 mm)
L71171 Shower Board 26½" (673 mm)
L71195 Shower Board 28½" (724 mm)
General Safety Warning
Please make sure that you read and follow
these instructions carefully. Keep these
instructions in a safe place for future reference.
1. INTENDED USE
To provide a safe seating or transfer platform for use
when bathing or showering. It can be used on its
own or in conjunction with the NuvoTM Bath Seat to
allow the user to sit lower in the bath.
2. SAFETY
Warning: The maximum user weight must not be
more than 190 kg (30 st).
Check the bath seat fits correctly inside the bath.
There should be a minimum of 1.5" (37 mm) of level
bath rim on each side to support the board.
Ensure the wing nuts are tight and the clamps are
secure prior to use.
Do not attempt to stand on the seat.
3. UNPACKING
Remove the packaging and check all parts carefully.
Contact your supplier immediately if parts are
missing or damaged and do not try and assemble.
3.1 Contents:
A. Bracket Pads x 8
B. Bracket Locators x 4
C. Wing Nuts x 4
USER INSTRUCTIONS
NUVO SLATTED BATH / SHOWER BOARDS
L71146 Bath Board 27½" (698 mm)
L71169 Bath Board 30" (762 mm)
L71183 Shower Board 27½" (698 mm
L71274 Grab Handle (optional)
Maximum User Weight

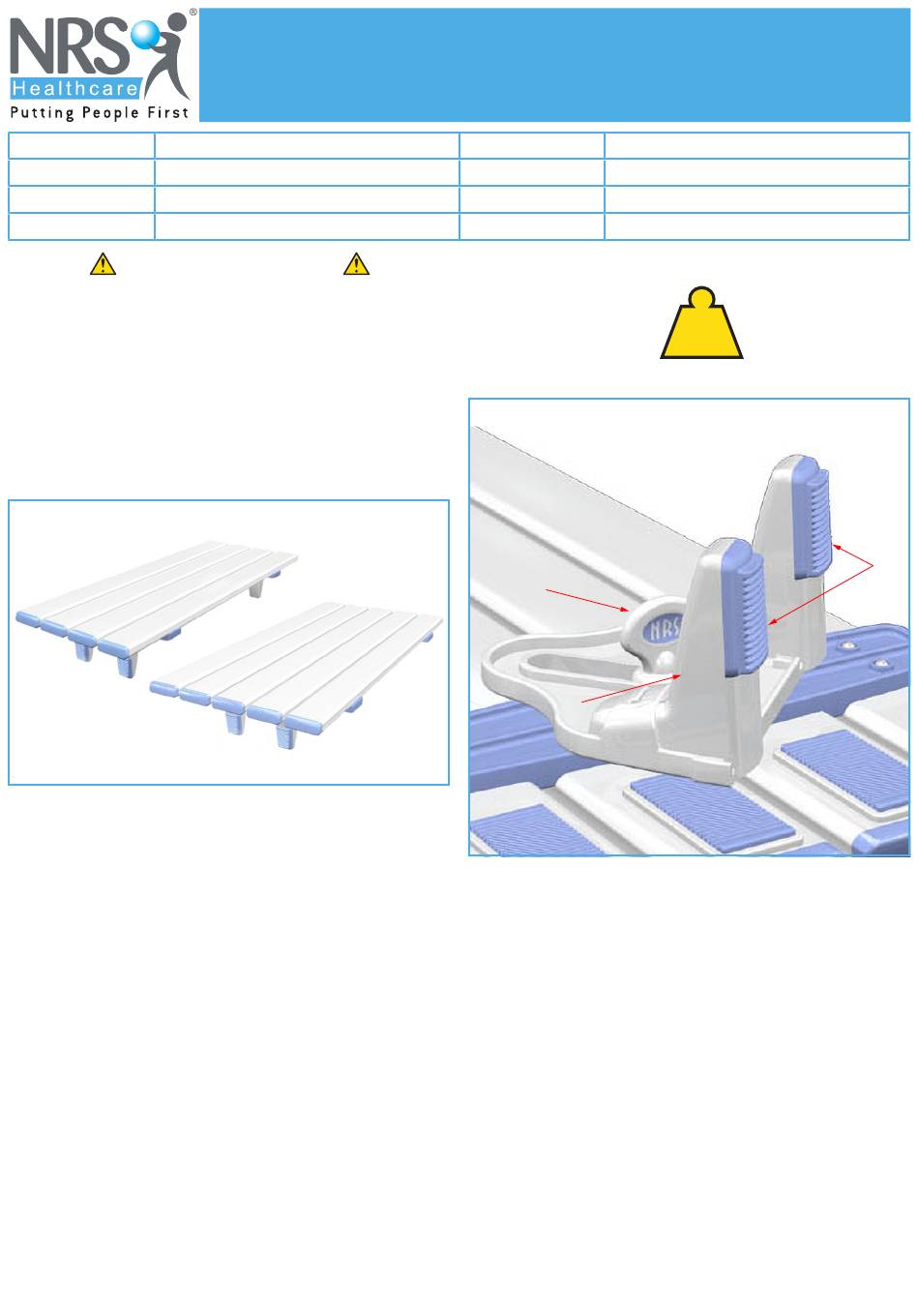

4. ASSEMBLY
C
B
Push the bracket pads (A) into the bracket locators
(B).
Screw the wing nut (C) through the central slot into
the corresponding screw thread to attach the clamp
bracket to the underside of the board.
5. INSTALLATION
1. Choose the desired position of the bath board.
The optimum position is at the end opposite the
taps.
2. Clean and dry the bath walls thoroughly in the
area where the board is to be fitted.
3. Place the board across the top of the bath with
the brackets facing upwards and the edge of the
board in line with the edge of the bath.
4. Slide one of the brackets such that the bracket
pad is in line with the inside edge of the bath and
secure by tightening the wing nut.
1
30st
190kg
A
