NRS Healthcare P05229 Product/Technical Bulletin

Product Range

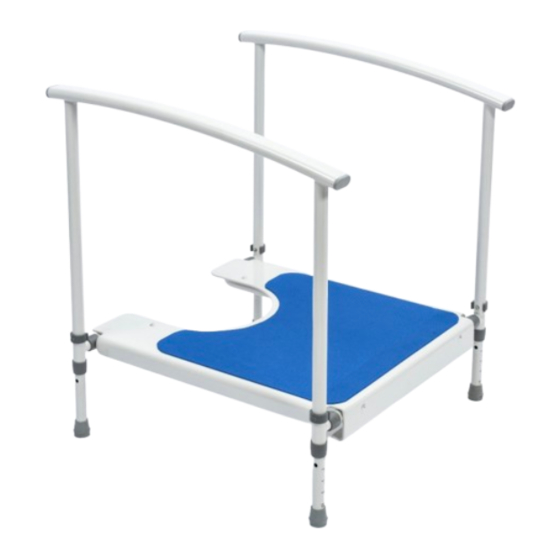

P05229 Children's Toilet Platform
Product Description & Intended Purpose
The Children's Toilet Platform is designed to enable
children who's feet cannot reach the floor when sat on a
standard toilet to be able to climb onto a platform and
then sit comfortably with their feet supported.

Product Features


Contemporary design with comfortable handles.

Lightweight steel frame, powder coated white.

Height adjustable platform.

Designed to provide optimum stability.

Soft mat for extra comfort and grip.

TECHNICAL SPECIFICATION

Installation Information: (Note: for detailed information refer to User Instructions)
Assembly:

Attach the platform to the LH & RH frame by depressing the button clips and sliding the platform
tubes over both the LH & RH frame side tubes. Ensure the button clip clicks back into place.

Insert the leg extensions by sliding into the frame legs to correct height and insert an 'e-clip'.
To adjust the Height:

Remove the 'e-clips' and slide the legs to the desired position and re-insert the 'e-clips'.

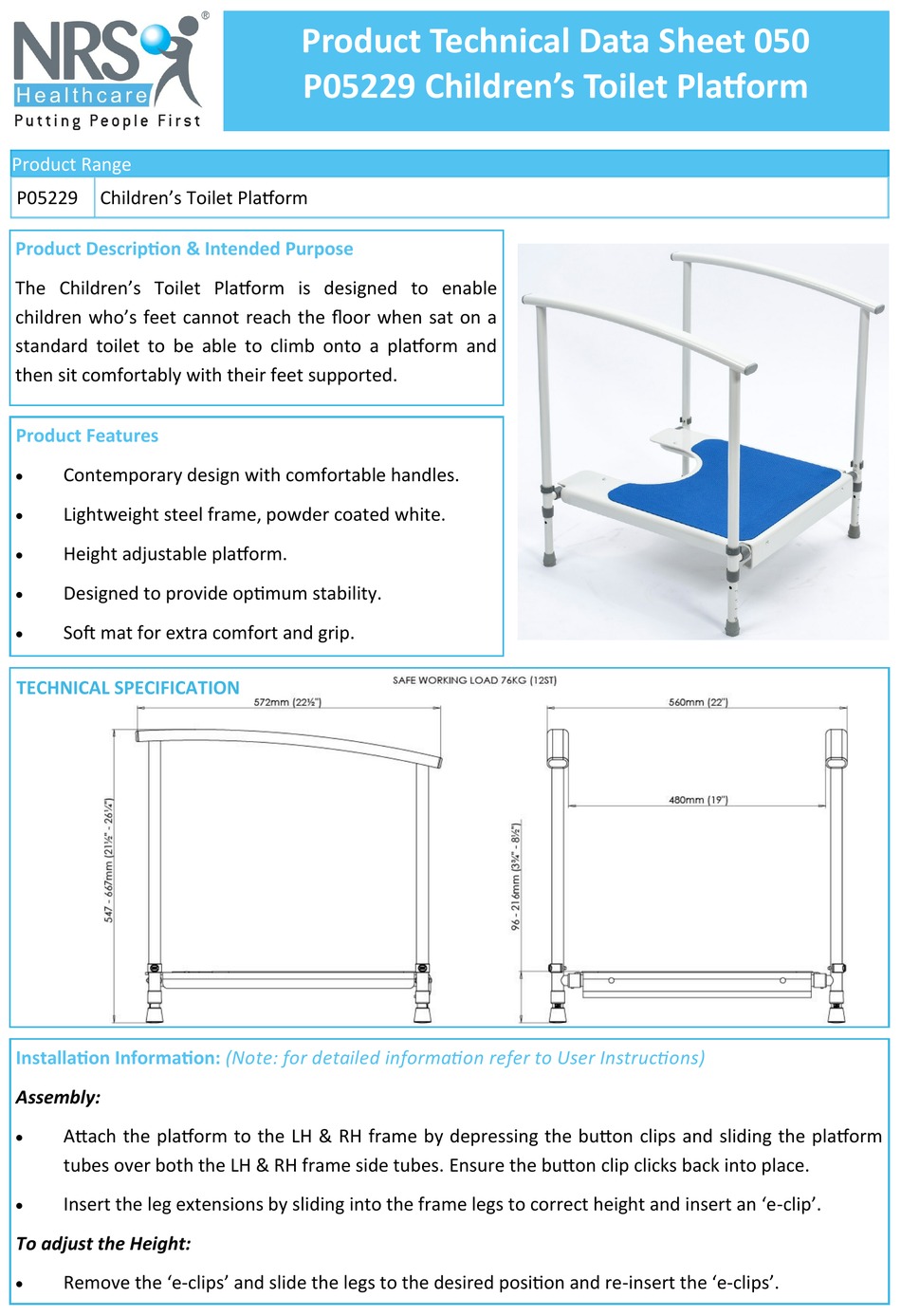

Product Technical Data Sheet 050
P05229 Children's Toilet Platform
