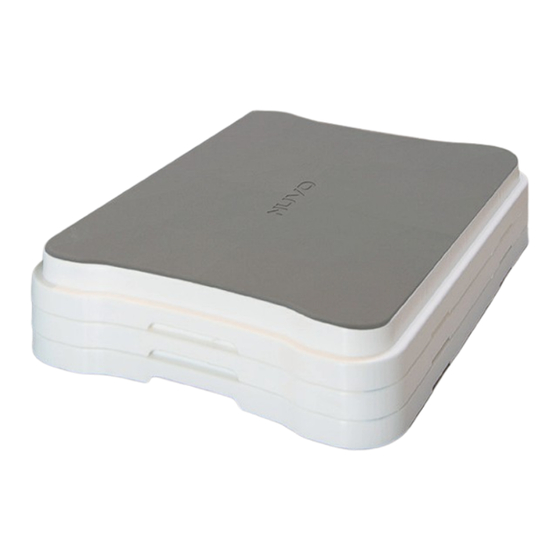

NRS Healthcare Nuvo S20677 User Instructions

S09347
S20677
General Safety Warning
Please make sure that you read and follow these
instructions carefully. Keep these instructions in
a safe place for future reference.
1. INTENDED USE
To assist users transferring into and out of the bath by reducing the step-over height. It can also provide
assistance when using the toilet or sink in a bathroom environment.
2. SAFETY
WARNING: The maximum user weight must not be
more than 317 kg (50 st).
WARNING: The maximum step height is 175 mm
(7") using 6 step sections (2 packs).
DO NOT: Stack more than 6 step sections together.
ALWAYS: Make sure the bottom section of the step
has 4 support pillars inserted into the base.
ALWAYS: Make sure the overmoulded section is
placed on the top.
3. UNPACKING
Remove the packaging and check all parts carefully.
Contact your supplier immediately if parts are
missing or damaged and do not try and assemble.
3.1 Contents:
1. Overmould Step 50 mm (2") x 1
2. Step 50 mm (2") x 2
3. Support Pillar x 4
4. ASSEMBLY/INSTALLATION
4.1 Single Step - 50 mm (2") Step Height:
Use the single overmoulded step section.
1. Turn the overmoulded step section upside down
and lay flat.
USER INSTRUCTIONS
ADJUSTABLE BATH-STEP RANGE
1 x Nuvo Bath Step, 2 x NRS Bath Steps & Pillars
1 x Nuvo Bath Step & Pillars
Maximum User Weight
2. Push the four support pillars into position (see
Figure 1).

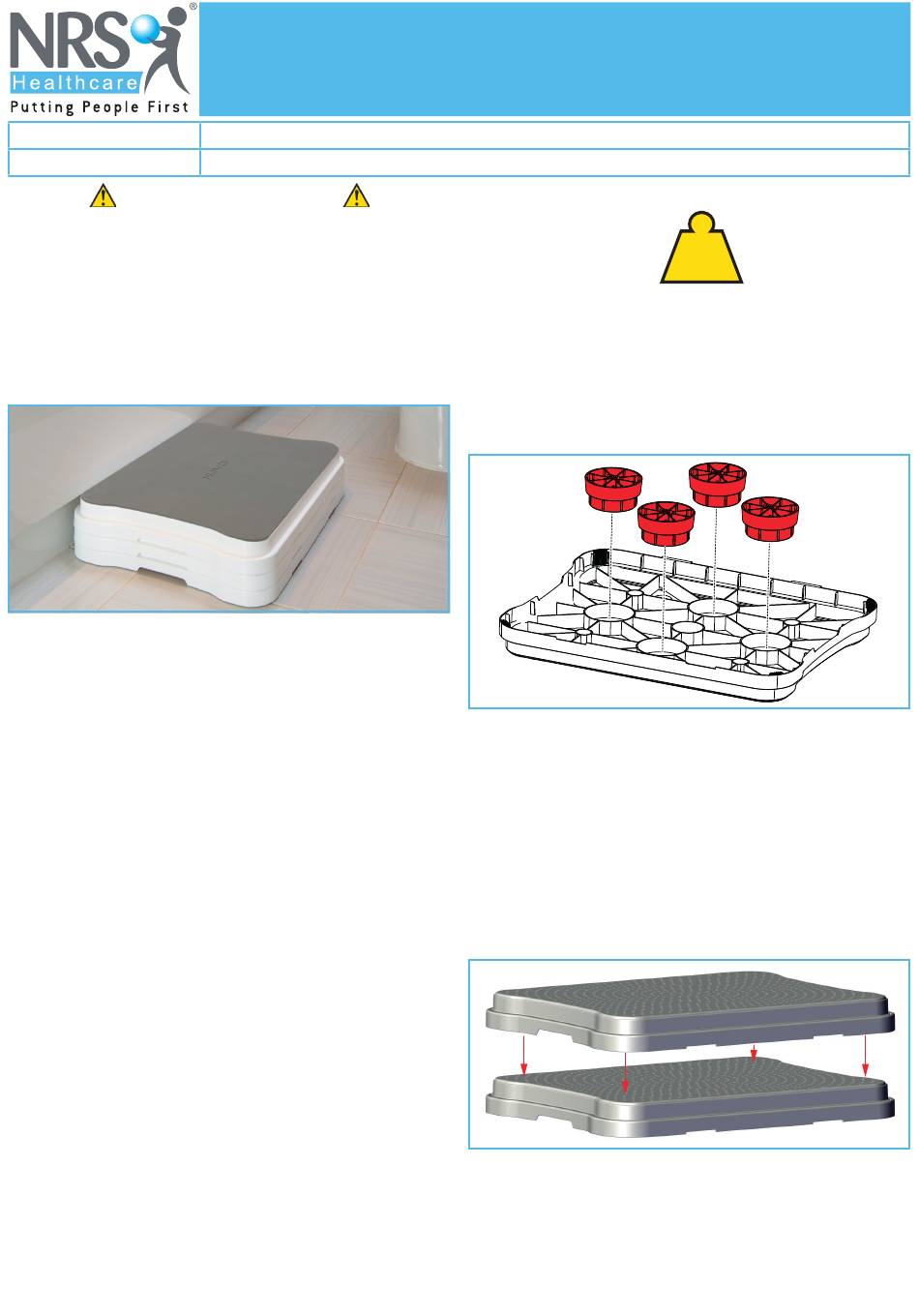

Figure 1: Insert Support Pillars
3. Turn the step over to stand on the pillars and
place in the desired location.
4.2 Two Steps - 75 mm (3") Step Height:
1. Push the four support pillars into position on
one of the non-overmoulded step sections (see
Figure 1).
2. Place the overmoulded step section on top of
the first.
3. Push down firmly to secure.
4.3 Three Steps - 100 mm (4") Step Height:
1. Place a third step section inbetween the bottom
section and the overmoulded top section.
2. Push down firmly to secure.
1
50st
317kg
