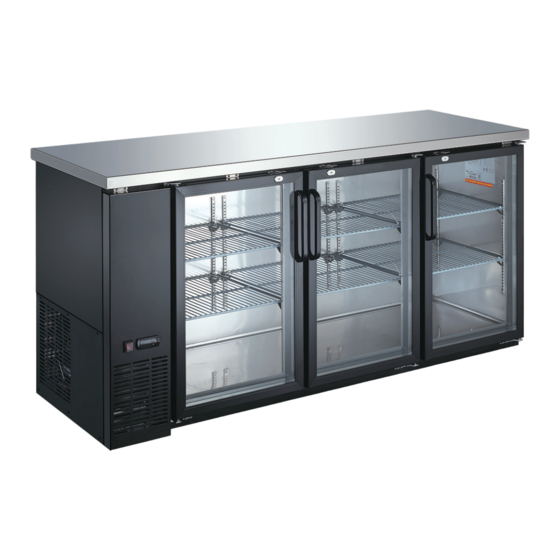

- Page 1 Aurora Back Bar Coolers Models BB-CN-0012E-SH, 0012E-GH, 0020E-SH, 0020E-GH Items 59057, 59058, 59061, 59062 Instruction Manual Revised - 02/10/2023 Toll Free: 1-800-465-0234 Fax: 905-607-0234 Email: service@omcan.com www.omcan.com...
-
Page 2: Table Of Contents
Table of Contents Model BB-CN-0012E-SH / Model BB-CN-0012E-GH Model BB-CN-0020E-SH / Model BB-CN-0020E-GH Section Page Disclaimer -------------------------------------------------------------------------------------------- 3 General Information --------------------------------------------------------------------------- 4 - 5 Safety and Warranty --------------------------------------------------------------------------- 5 - 7 Technical Specifications ---------------------------------------------------------------------- 8 - 9 Installation -------------------------------------------------------------------------------------- 9 - 10... -
Page 3: Disclaimer
Disclaimer OMCAN IS NOT RESPONSIBLE FOR ANY DAMAGES DUE TO WATER LEAKS. WARRANTY FOR WATER LEAKS IS VOID IF THE AMBIENT ROOM TEMPERATURE EXCEEDS 75°F AND 55% RELATIVE HUMIDITY, AND THE APPLIANCE DRAIN IS NOT CONNECTED DIRECTLY TO A FLOOR DRAIN. -
Page 4: General Information
If the package has suffered rough handling, bumps or damage (visible or concealed), please note it on the bill of lading before accepting the delivery and contact Omcan within 24 hours, so we may initiate a claim with the carrier. A detailed report on the extent of the damage caused to the machine must be filled out within three days, from the delivery date shown in the shipping documents. -
Page 5: Safety And Warranty
Si el paquete ha sufrido un manejo de poco cuidado, golpes o daños (visible o oculto) por favor anote en la factura antes de aceptar la entrega y contacte Omcan dentro de las 24 horas, de modo que podamos iniciar una reclamación con la compañia. - Page 6 5. Handle with caution during transportation, the unit can only be leaned a maximum of 45°. 6. When encountering problems, please refer to the Troubleshooting section or call Omcan. Danger: Flammable refrigerant used. Do not use mechanical devices to defrost the unit. Do not puncture the refrigerant tubing.
- Page 7 1 YEAR PARTS AND LABOUR WARRANTY Within the warranty period, contact Omcan Inc. at 1-800-465-0234 to schedule an Omcan authorized service technician to repair the equipment locally. Unauthorized maintenance will void the warranty. Warranty covers electrical and part failures, not improper use.
-
Page 8: Technical Specifications
Technical Specifications SOLID DOOR UNITS Model BB-CN-0012E-SH BB-CN-0020E-SH Temperature Range 0.6 - 4.4°C / 33 - 40°F Max Ambient Temp 24°C / 75°F Rating Power 346 W 396 W Refrigerant R290 Isolation Material Cyclopentane Cooling System Ventilated Defrosting Automatic Type of Controller... -
Page 9: Installation
Technical Specifications GLASS DOOR UNITS Model BB-CN-0012E-GH BB-CN-0020E-GH Temperature Range 0.6 - 4.4°C / 33 - 40°F Max Ambient Temp 24°C / 75°F Rating Power 273 W 396 W Refrigerant R290 Isolation Material Cyclopentane Cooling System Ventilated Defrosting Automatic Type of Controller Digital Self-Closing Door Current... -
Page 10: Maintenance
Installation • Make sure all accessories are installed (shelves, casters, ect.) before plugging in the unit. • Please read through the manual in its entirety. CABINET LOCATION GUIDELINES INSTALL THE UNIT ON A STRONG AND LEVELED SURFACE • Unit may make unpleasant noises if surface is uneven. •... -
Page 11: Troubleshooting
Maintenance CLEANING THE FAN BLADES AND MOTOR If necessary, clean the fan blades and motor with a soft cloth. If it is necessary to wash the fan blades, cover the fan motor to prevent moisture damage. CLEANING THE INTERIOR OF THE UNIT •... - Page 12 Troubleshooting Condensing unit runs for long Excessive amount of warm product Allow adequate time for product to periods of time. placed in cabinet. cool down. Prolonged door opening or door Ensure doors are closed when not ajar. in use. Avoid opening doors for long periods of time.
-
Page 13: Parts Breakdown
Parts Breakdown Model BB-CN-0012E-SH 59057... - Page 14 Parts Breakdown Model BB-CN-0012E-SH 59057 Item No. Description Position Item No. Description Position Item No. Description Position AF774 Right Door for 59057 AF778 Condenser Installation Board for 59057 AM180 Evaporator Fan Motor for 59057 AF775 Left Door for 59057 AA155...
- Page 15 Parts Breakdown Model BB-CN-0012E-GH 59058...
- Page 16 Parts Breakdown Model BB-CN-0012E-GH 59058 Item No. Description Position Item No. Description Position Item No. Description Position AA357 Right Glass Door for 59058 AF778 Condenser Installation Board for 59058 AM180 Evaporator Fan Motor for 59058 AA358 Left Glass Door for 59058 AA155 Condenser for 59058 AM181...
- Page 17 Parts Breakdown Model BB-CN-0020E-SH 59061...
- Page 18 Parts Breakdown Model BB-CN-0020E-SH 59061 Item No. Description Position Item No. Description Position Item No. Description Position AF800 Right Door for 59061 AA155 Condenser for 59061 AF824 Top Board for 59061 AF801 Left Door for 59061 AB595 Filter Fixer for 59061 AF764 Top Board Fixer for 59061 61468...
- Page 19 Parts Breakdown Model BB-CN-0020E-GH 59062...
- Page 20 Parts Breakdown Model BB-CN-0020E-GH 59062 Item No. Description Position Item No. Description Position Item No. Description Position AA462 Right Glass Door for 59023 AF778 Condenser Installation Board for 59023 68296 LED Light for 59023 AA463 Left Glass Door for 59023 AA155 Condenser for 59023 AF824...
-
Page 21: Electrical Schematics
Electrical Schematics Model BB-CN-0012E-SH 59057 Model BB-CN-0012E-GH 59058 Model BB-CN-0020E-SH 59061 Model BB-CN-0020E-GH 59062... -
Page 22: Notes
Notes ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________... -
Page 23: Warranty Registration
Warranty Registration Thank you for purchasing an Omcan product. To register your warranty for this product, complete the information below, tear off the card at the perforation and then send to the address specified below. You can also register online by visiting: Merci d’avoir acheté... - Page 24 Since 1951 Omcan has grown to become a leading distributor of equipment and supplies to the North American food service industry. Our success over these many years can be attributed to our commitment to strengthen and develop new and existing relationships with our valued customers and manufacturers.
