Omcan BB-CN-0012-DH Instruction Manual

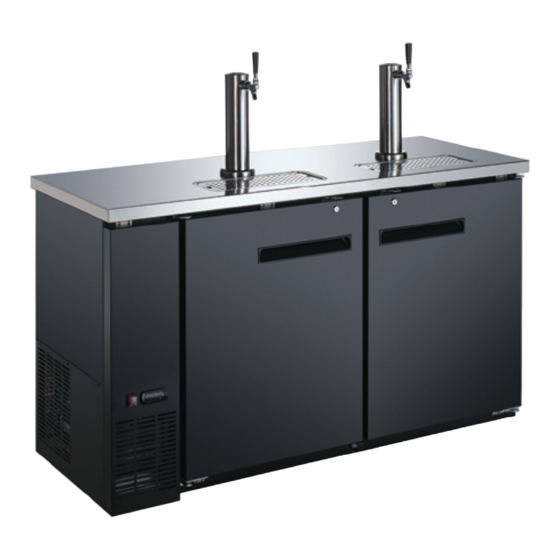

Back bar bottle coolers
Hide thumbs Also See for BB-CN-0012-DH:
Table of Contents

Advertisement

Quick Links

Download this manual
Back Bar Bottle Coolers
Models BD-CN-0007-HC, BB-CN-0012-DH, BD-CN-0019-HC,
BB-CN-0016-DH, BD-CN-0023-HC, BB-CN-0020-DH, BD-CN-0032-HC
Items 50066, 50063, 50067, 50064, 50068, 50065, 50069
Instruction Manual
Revised - 08/29/2019
Toll Free: 1-800-465-0234
Fax: 905-607-0234
Email: service@omcan.com
www.omcan.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BB-CN-0012-DH and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Omcan BB-CN-0012-DH

Summary of Contents for Omcan BB-CN-0012-DH

  • Page 1 Back Bar Bottle Coolers Models BD-CN-0007-HC, BB-CN-0012-DH, BD-CN-0019-HC, BB-CN-0016-DH, BD-CN-0023-HC, BB-CN-0020-DH, BD-CN-0032-HC Items 50066, 50063, 50067, 50064, 50068, 50065, 50069 Instruction Manual Revised - 08/29/2019 Toll Free: 1-800-465-0234 Fax: 905-607-0234 Email: service@omcan.com www.omcan.com...

  • Page 2: Table Of Contents

    Table of Contents Model BD-CN-0007-HC / Model BB-CN-0012-DH / Model BD-CN-0019-HC Model BB-CN-0016-DH / Model BD-CN-0023-HC / Model BB-CN-0020-DH Model BD-CN-0032-HC Section Page General Information --------------------------------------------------------------------------- 3 - 4 Safety and Warranty --------------------------------------------------------------------------- 4 - 6 Technical Specifications -------------------------------------------------------------------------- 7...

  • Page 3: General Information

    If the package has suffered rough handling, bumps or damage (visible or concealed), please note it on the bill of lading before accepting the delivery and contact Omcan within 24 hours, so we may initiate a claim with the carrier. A detailed report on the extent of the damage caused to the machine must be filled out within three days, from the delivery date shown in the shipping documents.

  • Page 4: Safety And Warranty

    Si el paquete ha sufrido un manejo de poco cuidado, golpes o daños (visible o oculto) por favor anote en la factura antes de aceptar la entrega y contacte Omcan dentro de las 24 horas, de modo que podamos iniciar una reclamación con la compañia.
  • Page 5 Safety and Warranty • Unplug the unit from the electrical outlet before cleaning or making repairs. • Setting the temperature controls to the 0 (zero) position does not remove power to the light circuit, perimeter heaters or evaporator fans. NOTE: It is strongly recommended that any servicing be performed by an authorized instructions before it is used.
  • Page 6 2 YEARS PARTS AND LABOUR / 5 YEARS PARTS ONLY ON COMPRESSOR WARRANTY Within the warranty period, contact Omcan Inc. at 1-800-465-0234 to schedule an Omcan authorized service technician to repair the equipment locally. Unauthorized maintenance will void the warranty. Warranty covers electrical and part failures, not improper use.

  • Page 7: Technical Specifications

    Technical Specifications Model BD-CN-0007-HC BB-CN-0012-DH BD-CN-0019-HC BB-CN-0016-DH Product Capacity 1 - 1/2 barrel 2 - 1/2 barrels Number of Doors Temperature Range 0.5 - 5°C / 33 - 41°F Capacity 184.1 L / 6.5 cu.ft 335 L / 11.8 cu.ft.

  • Page 8: Installation

    Installation Tools required: Phillips screw driver. • Use a Phillips screw driver to remove the four (4) screws from the L-bracket connecting the unit to the wood skid. Then remove the L-bracket from the unit. • Remove skid by unscrewing all base rail anchor brackets. Place skid to the side. •...
  • Page 9 Installation • Minnesota Mining #ECU1055 Bead. BEER DISPENSING SYSTEM • Minnesota Mining #ECU1202 Bead. • Armstrong Cork - Rubber Caulk. • Products Research Co #5000 Rubber Caulk. • GE Silicone Sealer. • Dow Corning Silicone Sealer. NOTE: Asphalt floors are very susceptible to chemical attack.

  • Page 10: Operation

    Installation REMOTE CO2 GAS CYLINDER INSTALLATION 1. Remove the plug on the right wall of the machine with a pair of pliers. 2. Drill and make hole through the wall. Holes can be located in two different areas. Reference above pictures for the position of the holes. 3.
  • Page 11 Operation not cover product loss. REPLACEMENT PARTS We maintains a record of the cabinet model number and serial number for your cooler. If at any time during the life of your cooler a replacement part is needed, call the factory office with the model number and serial number of your unit to place an order for the part.
  • Page 12 Operation Table of Functions activated by the buttons - Models S, X, Y, C (Table 2) Button Normal Operation Start Up Pressing the Button Alone Pressed Together More than 3 sec: toggle ON/ Start/Stop ON/OFF continuous cycle Down More than 3 sec: start/stop Pressed For 1 sec.

  • Page 13: Cleaning And Maintenance

    Operation 3. Scroll inside the parameter menu using UP/DOWN. • To display/set the values of the parameter displayed, press SET, then UP/DOWN and finally SET to confirm the changes (returning to the parameter menu). To save all the new values and exit the parameter menu, press SET for 3 sec. To exit the menu without saving the changed values (exit by timeout) do not press any button for at least 60 sec.
  • Page 14 Cleaning and Maintenance CLEANING THE CONDENSER COIL Required Tools: • Phillips screwdriver. • Stiff bristle brush. • Adjustable wrench When using electrical appliances basic safety precautions should be followed: • Disconnect power to unit. • Take off lower grill assembly by removing all screws. •...
  • Page 15 Cleaning and Maintenance 8 Steps that can help prevent rust on stainless steel 1. Use the correct cleaning tools. Use non-abrasive tools when cleaning your stainless steel products. The stainless steel’s passive layer will not be harmed by soft cloths and plastic scouring pads. 2.
  • Page 16 One Tap 6.5 cu ft / 186 L Capacity UDD-1-HC 110V/60HZ ETL cETLus INTERTEK Cooler Back Bar 11.8 cu ft Capacity Solid 50063 BB-CN-0012-DH Door with Beer Dispenser 115V/60/1 NSF UDD-24-48-HC ETL cETLus INTERTEK Beer Dispenser Double Solid Doors 50067...

  • Page 17: Parts Breakdown

    Parts Breakdown Model BD-CN-0007-HC 50066...
  • Page 18 Parts Breakdown Model BD-CN-0007-HC 50066 Item No. Description Position Item No. Description Position Item No. Description Position AA581 Outer Drain Pan for UDD-1-HC AA591 Stainless Steel Guard Rail for UDD-1-HC AA123 Thermostat for UDD-1-HC AA531 Rubber Pad for UDD-1-HC AA359 Upper Right Hinge for UDD-1-HC AA601 Caster without Brake for UDD-1-HC...
  • Page 19 Parts Breakdown Model BB-CN-0012-DH 50063...
  • Page 20 Parts Breakdown Model BB-CN-0012-DH 50063 Item No. Description Position Item No. Description Position Item No. Description Position AA508 Right Door for UDD-24-48-HC AA128 Condenser Fan Motor for UDD-24-48-HC AA385 K Clip for UDD-24-48-HC AA509 Left Door for UDD-24-48-HC AA371 Filter for UDD-24-48-HC...
  • Page 21 Parts Breakdown Model BD-CN-0019-HC 50067...
  • Page 22 Parts Breakdown Model BD-CN-0019-HC 50067 Item No. Description Position Item No. Description Position Item No. Description Position AA608 Right Door for UDD-2-HC AA128 Condenser Fan Motor for UDD-2-HC AA385 K Clip for UDD-2-HC AA609 Left Door for UDD-2-HC AA371 Filter for UDD-2-HC AA624 Shelf for UDD-2-HC AA359...
  • Page 23 Parts Breakdown Model BB-CN-0016-DH 50064...
  • Page 24 Parts Breakdown Model BB-CN-0016-DH 50064 Item No. Description Position Item No. Description Position Item No. Description Position AA535 Right Door for UDD-24-60-HC AA371 Filter for UDD-24-60-HC AA551 Upper Right Hinge for UDD-24-60-HC AA536 Left Door for UDD-24-60-HC 64167 Compressor for UDD-24-60-HC AA388 Axis Cover for UDD-24-60-HC AA359...
  • Page 25 Parts Breakdown Model BD-CN-0023-HC 50068...
  • Page 26 Parts Breakdown Model BD-CN-0023-HC 50068 Item No. Description Position Item No. Description Position Item No. Description Position AA633 Right Door for UDD-3-HC AA371 Filter for UDD-3-HC AA650 Upper Right Hinge for UDD-3-HC AA634 Left Door for UDD-3-HC 64167 Compressor for UDD-3-HC AA388 Axis Cover for UDD-3-HC AA359...
  • Page 27 Parts Breakdown Model BB-CN-0020-DH 50065...
  • Page 28 Parts Breakdown Model BB-CN-0020-DH 50065 Item No. Description Position Item No. Description Position Item No. Description Position AA558 Right Door for UDD-24-72-HC AA371 Filter for UDD-24-72-HC AA574 Upper Right Hinge for UDD-24-72-HC AA559 Left Door for UDD-24-72-HC 64173 Compressor for UDD-24-72-HC AA388 Axis Cover for UDD-24-72-HC AA359...
  • Page 29 Parts Breakdown Model BD-CN-0032-HC 50069...
  • Page 30 Parts Breakdown Model BD-CN-0032-HC 50069 Item No. Description Position Item No. Description Position Item No. Description Position AA657 Right Door for UDD-4-HC AA371 Filter for UDD-4-HC AA674 Upper Right Hinge for UDD-4-HC AA658 Left Door for UDD-4-HC 64173 Compressor for UDD-4-HC AA388 Axis Cover for UDD-4-HC AA359...

  • Page 31: Electrical Schematics

    Electrical Schematics Model BD-CN-0007-HC 50066...
  • Page 32 Electrical Schematics Model BB-CN-0012-DH 50063...
  • Page 33 Electrical Schematics Model BD-CN-0019-HC 50067...
  • Page 34 Electrical Schematics Model BB-CN-0016-DH 50064...
  • Page 35 Electrical Schematics Model BD-CN-0023-HC 50068...
  • Page 36 Electrical Schematics Model BB-CN-0020-DH 50065...
  • Page 37 Electrical Schematics Model BD-CN-0032-HC 50069...

  • Page 38: Notes

    Notes ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________...

  • Page 39: Warranty Registration

    Warranty Registration Thank you for purchasing an Omcan product. To register your warranty for this product, complete the information below, tear off the card at the perforation and then send to the address specified below. You can also register online by visiting: Merci d’avoir acheté...
  • Page 40 Since 1951 Omcan has grown to become a leading distributor of equipment and supplies to the North American food service industry. Our success over these many years can be attributed to our commitment to strengthen and develop new and existing relationships with our valued customers and manufacturers.
