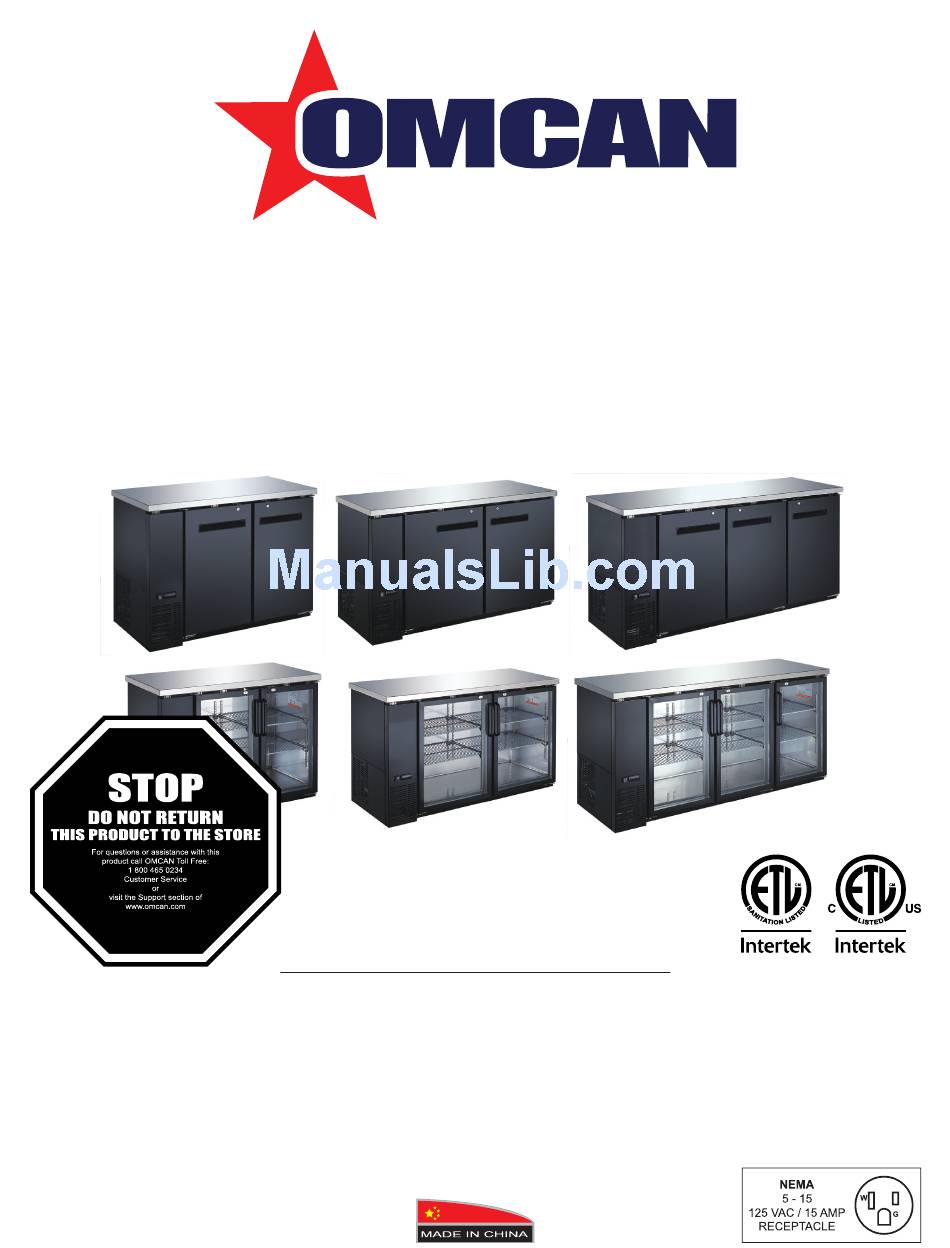

- Page 1 Back Bar Bottle Coolers Models BB-CN-0012-GH, 0012-SH, 0016-GH, 0016-SH, 0020-GH, 0020-SH Items 50058, 50057, 50060, 50059, 50062, 50061 Instruction Manual Revised - 05/30/2018 Toll Free: 1-800-465-0234 Fax: 905-607-0234 Email: service@omcan.com www.omcan.com...
-
Page 2: Table Of Contents
Table of Contents Model BB-CN-0012-GH / Model BB-CN-0016-GH / Model BB-CN-0020-GH Model BB-CN-0012-SH / Model BB-CN-0016-SH / Model BB-CN-0020-SH Section Page General Information --------------------------------------------------------------------------- 3 - 4 Safety and Warranty --------------------------------------------------------------------------- 4 - 6 Technical Specifications -------------------------------------------------------------------------- 7 Installation --------------------------------------------------------------------------------------- 8 - 9... -
Page 3: General Information
If the package has suffered rough handling, bumps or damage (visible or concealed), please note it on the bill of lading before accepting the delivery and contact Omcan within 24 hours, so we may initiate a claim with the carrier. A detailed report on the extent of the damage caused to the machine must be filled out within three days, from the delivery date shown in the shipping documents. -
Page 4: Safety And Warranty
Si el paquete ha sufrido un manejo de poco cuidado, golpes o daños (visible o oculto) por favor anote en la factura antes de aceptar la entrega y contacte Omcan dentro de las 24 horas, de modo que podamos iniciar una reclamación con la compañia. - Page 5 Install the cooler in a dry place to prevent rust from forming on the compartment body, which may affect the electrical insulation. Service must only be performed by an authorized service representative, please call Omcan for a local service company.
- Page 6 1 YEAR PARTS AND LABOUR / 5 YEARS PARTS ONLY ON COMPRESSOR WARRANTY Within the warranty period, contact Omcan Inc. at 1-800-465-0234 to schedule an Omcan authorized service technician to repair the equipment locally. Unauthorized maintenance will void the warranty. Warranty covers electrical and part failures, not improper use.
-
Page 7: Technical Specifications
326 lbs. / 148 kg. 355 lbs. / 161 kg. Item Number 50058 50060 50062 SOLID DOOR BOTTLE COOLERS Model BB-CN-0012-SH BB-CN-0016-SH BB-CN-0020-SH Number of Doors Temperature Range 33 - 41°F / 0.5 - 5°C Capacity 11.8 cu.ft. / 335 L 15.8 cu.ft. -
Page 8: Installation
Installation Tools required: Phillips screw driver. • Use a Phillips screw driver to remove the four (4) screws from the L-bracket connecting the unit to the wood skid. Then remove the L-bracket from the unit. • Remove skid by unscrewing all base rail anchor brackets. Place skid to the side. •... -
Page 9: Operation
Installation NSF APPROVED SEALANTS: • Minnesota Mining #ECU800 Caulk. • Minnesota Mining #ECU2185 Caulk. • Minnesota Mining #ECU1055 Bead. • Minnesota Mining #ECU1202 Bead. • Armstrong Cork - Rubber Caulk. • Products Research Co #5000 Rubber Caulk. • GE Silicone Sealer. •... - Page 10 Operation REPLACEMENT PARTS We maintains a record of the cabinet model number and serial number for your cooler. If at any time during the life of your cooler a replacement part is needed, call the factory office with the model number and serial number of your unit to place an order for the part.
- Page 11 Operation Table of Functions activated by the buttons - Models S, X, Y, C (Table 2) Button Normal Operation Start Up Pressing the Button Alone Pressed Together More than 3 sec: toggle ON/ Start/Stop ON/OFF continuous cycle Down More than 3 sec: start/stop Pressed For 1 sec.
-
Page 12: Cleaning And Maintenance
Operation • To display/set the values of the parameter displayed, press SET, then UP/DOWN and finally SET to confirm the changes (returning to the parameter menu). To save all the new values and exit the parameter menu, press SET for 3 sec. To exit the menu without saving the changed values (exit by timeout) do not press any button for at least 60 sec. - Page 13 Cleaning and Maintenance • Adjustable wrench When using electrical appliances basic safety precautions should be followed: • Disconnect power to unit. • Take off lower grill assembly by removing all screws. • Remove bolts anchoring compressor assembly to frame rails and carefully slide out -- tube connections are flexible.
- Page 14 Cooler Back Bar 19.6 cu ft Glass Door 50062 BB-CN-0020-GH UBB-24-72G-HC 115V/60/1 ETL cETLus INTERTEK Cooler Back Bar 11.8 cu ft Solid Door 50057 BB-CN-0012-SH UBB-24-48F-HC 115V/60/1 ETL cETLus INTERTEK Cooler Back Bar 15.8 cu ft Solid Door 50059 BB-CN-0016-SH UBB-24-60F-HC 115V/60/1 ETL cETLus INTERTEK Cooler Back Bar 19.6 cu ft Solid Door...
-
Page 15: Parts Breakdown
Parts Breakdown Model BB-CN-0012-GH 50058 Model BB-CN-0016-GH 50060 Model BB-CN-0012-SH 50057 Model BB-CN-0016-SH 50059... - Page 16 Parts Breakdown Model BB-CN-0012-GH 50058 Model BB-CN-0012-SH 50057 Item No. Description Position Item No. Description Position Item No. Description Position Top Board for UBB-48G-HC, UBB- Compressor R290 for UBB-48G-HC, Bottom Right Hinge for Solid Door for 37682 64167 37728 48F-HC...
- Page 17 Parts Breakdown Model BB-CN-0016-GH 50060 Model BB-CN-0016-SH 50059 Item No. Description Position Item No. Description Position Item No. Description Position Top Board for UBB-60G-HC, UBB- Compressor R290 for UBB-60G-HC, Bottom Right Hinge for Solid Door for 37683 64167 37728 60F-HC UBB-60F-HC UBB-60G-HC, UBB-60F-HC Inner Drain Pan for UBB-60G-HC,...
- Page 18 Parts Breakdown Model BB-CN-0020-GH 50062 Model BB-CN-0020-SH 50061...
- Page 19 Parts Breakdown Model BB-CN-0020-GH 50062 Model BB-CN-0020-SH 50061 Item No. Description Position Item No. Description Position Item No. Description Position Top Board for UBB-72G-HC, UBB- Condenser for UBB-72G-HC, UBB- Right Glass Door for UBB-72G-HC, 37684 37700 37725 72F-HC 72F-HC UBB-72F-HC Inner Drain Pan for UBB-72G-HC, Compressor R134a for UBB-72G-HC, Right Solid Door for UBB-72G-HC,...
-
Page 20: Electrical Schematics
Electrical Schematics Model BB-CN-0012-GH 50058 Model BB-CN-0012-SH 50057... - Page 21 Electrical Schematics Model BB-CN-0016-GH 50060 Model BB-CN-0016-SH 50059...
-
Page 22: Electrical Schematics
Electrical Schematics Model BB-CN-0020-GH 50062 Model BB-CN-0020-SH 50061... -
Page 23: Warranty Registration
Warranty Registration Thank you for purchasing an Omcan product. To register your warranty for this product, complete the information below, tear off the card at the perforation and then send to the address specified below. You can also register online by visiting: Merci d’avoir acheté... - Page 24 Since 1951 Omcan has grown to become a leading distributor of equipment and supplies to the North American food service industry. Our success over these many years can be attributed to our commitment to strengthen and develop new and existing relationships with our valued customers and manufacturers.
