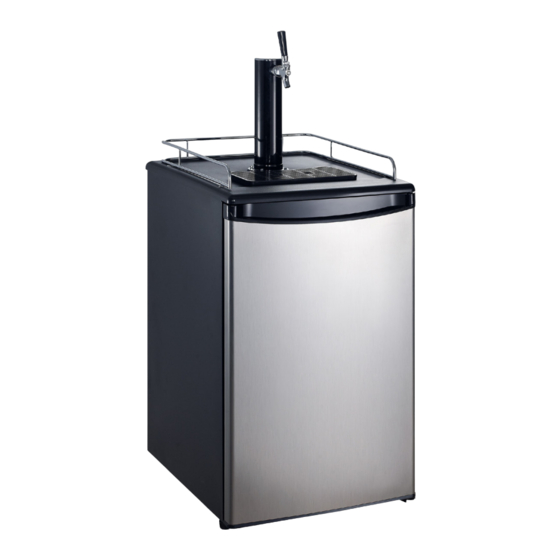

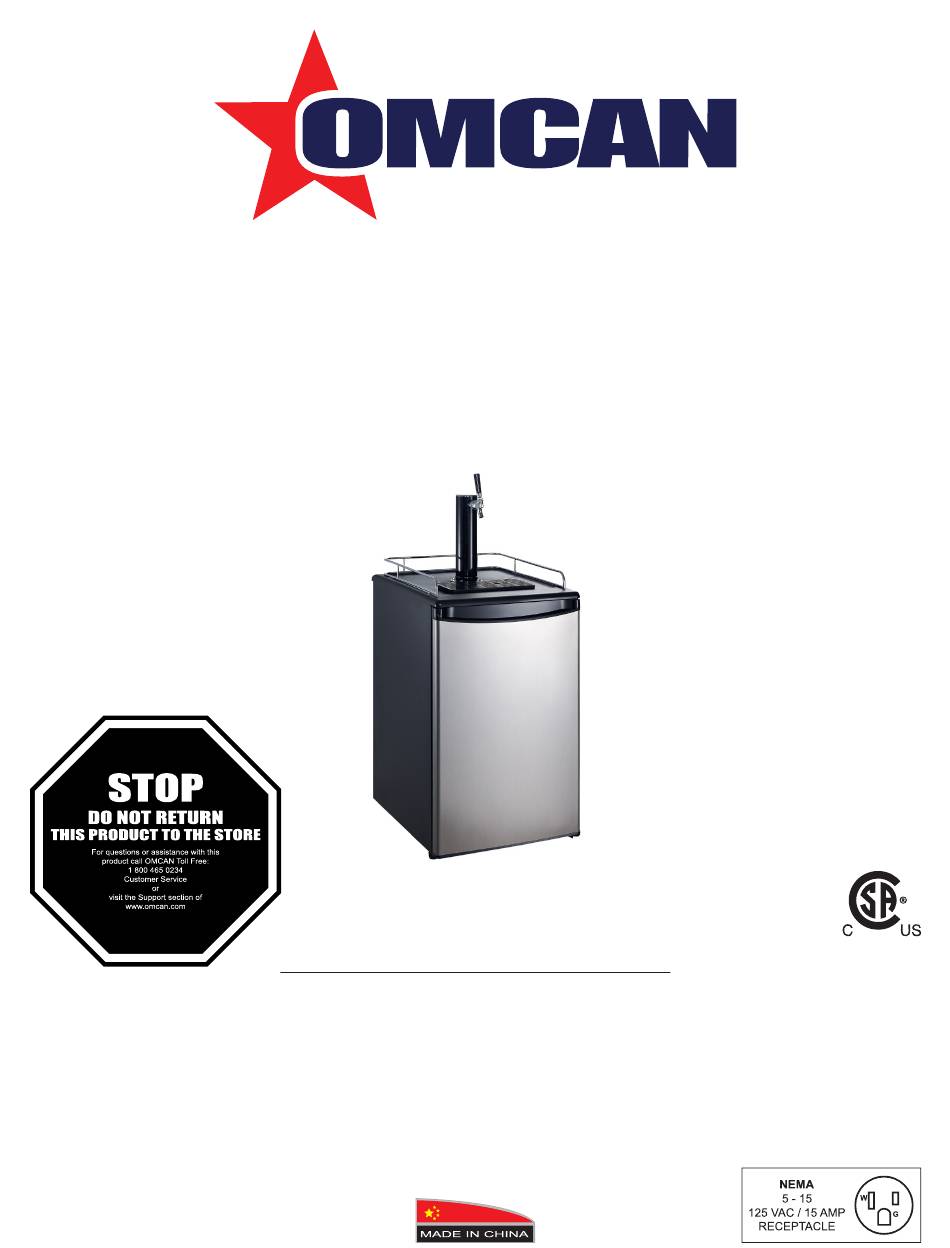

- Page 1 Beer Keg Cooler Model BC-CN-0152 Item 46500 Instruction Manual Revised - 08/05/2022 Toll Free: 1-800-465-0234 Fax: 905-607-0234 Email: service@omcan.com www.omcan.com...
-
Page 2: Table Of Contents
Table of Contents Model BC-CN-0152 Section Page Disclaimer -------------------------------------------------------------------------------------------- 3 General Information --------------------------------------------------------------------------- 4 - 5 Safety and Warranty --------------------------------------------------------------------------- 5 - 8 Technical Specifications -------------------------------------------------------------------------- 8 Installation -------------------------------------------------------------------------------------- 9 - 12 Operation ------------------------------------------------------------------------------------- 12 - 14 Maintenance --------------------------------------------------------------------------------------- 15... -
Page 3: Disclaimer
Disclaimer OMCAN IS NOT RESPONSIBLE FOR ANY DAMAGES DUE TO WATER LEAKS. WARRANTY FOR WATER LEAKS IS VOID IF THE WICKING PAD IS NOT REPLACED EVERY SIX MONTHS, AND IF THE AMBIENT ROOM TEMPERATURE EXCEEDS 75°F AND 55% RELATIVE HUMIDITY, AND THE APPLIANCE DRAIN IS NOT CONNECTED DIRECTLY TO THE FLOOR DRAIN. -
Page 4: General Information
If the package has suffered rough handling, bumps or damage (visible or concealed), please note it on the bill of lading before accepting the delivery and contact Omcan within 24 hours, so we may initiate a claim with the carrier. A detailed report on the extent of the damage caused to the machine must be filled out within three days, from the delivery date shown in the shipping documents. -
Page 5: Safety And Warranty
Si el paquete ha sufrido un manejo de poco cuidado, golpes o daños (visible o oculto) por favor anote en la factura antes de aceptar la entrega y contacte Omcan dentro de las 24 horas, de modo que podamos iniciar una reclamación con la compañia. - Page 6 Safety and Warranty • 1 CO2 Empty Cylinder(Box). • 1 CO2 Air Line Hose (Red). • 1 Beer Keg Coupler (Box). • 1 Beer Tower. • 1 Pull Handle (Beer Tower Faucet). • 4 Plugs: For Guard Rail Holes. • 1 Metal Plate For Cabinet Bottom.
- Page 7 1 YEAR PARTS AND LABOUR BENCH WARRANTY Within the warranty period, contact Omcan Inc. at 1-800-465-0234 to schedule a drop off to either an Omcan authorized service depot in the area, or to an Omcan Service warehouse to repair the equipment.
-
Page 8: Technical Specifications
In any case, for suitable recycling, we suggest disposing of the products separately (differentiated waste) according to the current norms. DO NOT DISCARD ANY PACKAGING MATERIALS IN THE ENVIRONMENT! Technical Specifications Model BC-CN-0152 Capacity 152 L / 5.37 cu.ft. Electrical 115V / 60Hz / 1 Temperature Range 2 - 8°C / 35.6 - 46.4°F... -
Page 9: Installation
Installation CASTOR BRAKE INSTALLATION Install the four castors (2 locking castors at front) into the units bottom (four screw holes pre-supplied) Figure (1) before installation. Figure (2) is the final version. INSTALLATION OF CO2 CYLINDER SUPPORT Install the metal support provided onto the 4 studs located on the exterior back wall. Align the holes in the support with the studs and push down firmly. - Page 10 Installation the cabinet front (6 o-clock position). You accomplish this by aligning the bottom of the beer tower to the 3 grooves on the top cabinet and tighten by hand clockwise to properly lock. • The plastic gasket, can be used to make the connection between the tower and the cooler tighter if needed. If Beer Tower will not turn to lock in place, try removing the plastic gasket.
- Page 11 Installation • Release adjustment lock nut marked 2. • Using a flat screwdriver, turn regulator screw marked 3. - To increase pressure, turn screw clockwise. - To decrease pressure, turn screw counter-clockwise. • Retighten lock nut marked 2. • Open secondary shut off valve to let CO2 flow into the keg. •...
-
Page 12: Operation
Installation Operation SETTING THE TEMPERATURE The temperature is controlled by adjusting/setting the thermostat control knob. To start the unit and achieve maximum cooling quickly; • Turn the temperature control knob clockwise to the furthest (maximum) setting on the blue (wide) section of the control dial. - Page 13 Operation AUTOMATIC DEFROSTING There is no need to defrost the Beer Dispenser. Defrost water collects and passes thru the drain outlet in the rear wall into a tray located above the compressor, where it evaporates. NOTE: If the unit is unplugged,power lost, or turned off; you must wait 3 to 5 minutes before restarting the unit.
- Page 14 Operation...
-
Page 15: Maintenance
Maintenance CLEANING YOUR BEER DISPENSER • Turn the temperature control to “OFF”, unplug the Beer Dispenser, and remove the contents. • Wash the inside surfaces with a warm water and baking soda solution. The solution should be about 2 tablespoons of baking soda to a quart of water. •... -
Page 16: Parts Breakdown
Parts Breakdown Model BC-CN-0152 46500... - Page 17 Parts Breakdown Model BC-CN-0152 46500...
- Page 18 Parts Breakdown Model BC-CN-0152 46500 Item No. Description Position Item No. Description Position Item No. Description Position AG054 Door Assembly for 46500 AG080 Big Steel Wire Shelf for 46500 AG106 CO2 Hose Bushing for 46500 AG055 Hinge Plug for 46500...
-
Page 19: Electrical Schematics
Electrical Schematics Model BC-CN-0152 46500... -
Page 20: Notes
Notes ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________... - Page 21 Notes ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________...
- Page 22 Notes ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________...
-
Page 23: Warranty Registration
Warranty Registration Thank you for purchasing an Omcan product. To register your warranty for this product, complete the information below, tear off the card at the perforation and then send to the address specified below. You can also register online by visiting: Merci d’avoir acheté... - Page 24 Since 1951 Omcan has grown to become a leading distributor of equipment and supplies to the North American food service industry. Our success over these many years can be attributed to our commitment to strengthen and develop new and existing relationships with our valued customers and manufacturers.
