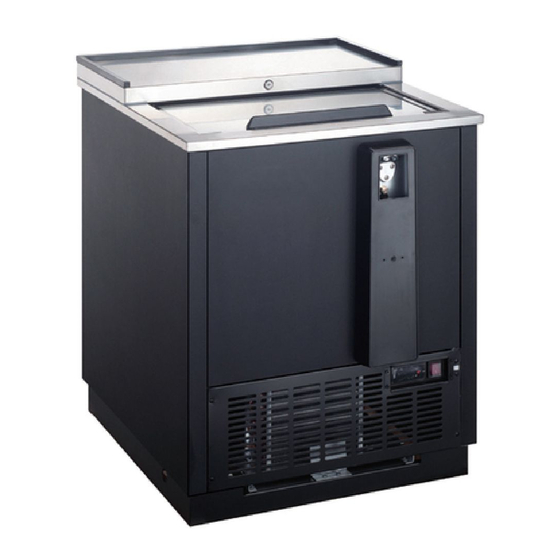

- Page 1 Reach In Bottle Coolers Models BB-CN-0005-HC, 0014-HC, 0017-HC, 0026-HC Items 50038, 50039, 50040, 50041 Instruction Manual Revised - 03/18/2021 Toll Free: 1-800-465-0234 Fax: 905-607-0234 Email: service@omcan.com www.omcan.com...
-
Page 2: Table Of Contents
Table of Contents Model BB-CN-0005-HC / Model BB-CN-0014-HC Model BB-CN-0017-HC / Model BB-CN-0026-HC Section Page Disclaimer -------------------------------------------------------------------------------------------- 3 General Information --------------------------------------------------------------------------- 4 - 5 Safety and Warranty --------------------------------------------------------------------------- 5 - 6 Technical Specifications -------------------------------------------------------------------------- 7 Installation / Operation ------------------------------------------------------------------------ 7 - 9... -
Page 3: Disclaimer
Disclaimer OMCAN IS NOT RESPONSIBLE FOR ANY DAMAGES DUE TO WATER LEAKS. WARRANTY FOR WATER LEAKS IS VOID IF THE WICKING PAD IS NOT REPLACED EVERY SIX MONTHS, AND IF THE AMBIENT ROOM TEMPERATURE EXCEEDS 75°F AND 55% RELATIVE HUMIDITY, AND THE APPLIANCE DRAIN IS NOT CONNECTED DIRECTLY TO THE FLOOR DRAIN. -
Page 4: General Information
If the package has suffered rough handling, bumps or damage (visible or concealed), please note it on the bill of lading before accepting the delivery and contact Omcan within 24 hours, so we may initiate a claim with the carrier. A detailed report on the extent of the damage caused to the machine must be filled out within three days, from the delivery date shown in the shipping documents. -
Page 5: Safety And Warranty
Si el paquete ha sufrido un manejo de poco cuidado, golpes o daños (visible o oculto) por favor anote en la factura antes de aceptar la entrega y contacte Omcan dentro de las 24 horas, de modo que podamos iniciar una reclamación con la compañia. - Page 6 2 YEARS PARTS AND LABOUR / 5 YEARS PARTS ONLY ON COMPRESSOR WARRANTY Within the warranty period, contact Omcan Inc. at 1-800-465-0234 to schedule an Omcan authorized service technician to repair the equipment locally. Unauthorized maintenance will void the warranty. Warranty covers electrical and part failures, not improper use.
-
Page 7: Technical Specifications
Technical Specifications Model BB-CN-0005-HC BB-CN-0014-HC BB-CN-0017-HC BB-CN-0026-HC Bottle Product 4.5 cases 16.5 cases 22 cases 37.5 cases Capacity Can Product 6 cases 24 cases 32 cases 55 cases Capacity Power 1/6 HP 1/4+ HP Net Volume 141 L / 5 cu.ft. -
Page 8: Installation / Operation
Installation / Operation CABINET LOCATION GUIDELINES • Install the unit on strong and leveled surfaces. - Unit may make unpleasant noises if surface is uneven. - Unit may malfunction if surface is uneven. • Install the unit in an indoor, well-ventilated area. - Unit performs more efficiently in a well-ventilated area. -
Page 9: Maintenance
Installation / Operation CAUTION Setting the temperature control to the coldest setting may cause the Evaporator coil to freeze and ice up. This will eventually result in a warmer Cabinet temperature. Temperature range from 7 (coldest) to 1 (warmest). Do not load Product above the top crossbar. Doing so will harm the Refrigeration. -
Page 10: Troubleshooting
Maintenance surface. • Wash door gaskets on a regular basis, preferably weekly. Simply remove door gasket from the frame of the door, soak in warm water and soap for thirty (30) minutes, dry with soft cloth, and replace. • Check door gaskets for proper seal after they are replaced. •... - Page 11 Troubleshooting Cabinet Temperature Is too warm. Thermostat set too warm. Set thermostat to lower Temperature. Blocking air flow. Re-arrange product to allow for Proper air flow. Make sure there Is at least four inches of clearance from evaporator. Excessive amount of warm product Allow adequate time for product to Placed in cabinet.
-
Page 12: Parts Breakdown
Parts Breakdown Model BB-CN-0005-HC 50038... - Page 13 Parts Breakdown Model BB-CN-0005-HC 50038 Item No. Description Position Item No. Description Position Item No. Description Position Compressor Unit Installation Board for AE966 AA197 Lock for 50038 AA209 Condenser Fan Motor for 50038 50038 Limited Block for Installation Board for...
- Page 14 Parts Breakdown Model BB-CN-0014-HC 50039...
- Page 15 Parts Breakdown Model BB-CN-0014-HC 50039 Item No. Description Position Item No. Description Position Item No. Description Position Compressor Unit Installation Board for AE987 AE994 Decoration Strip for 50039 AF841 Bottle Opener Board for 50039 50039 AE988 Base Board for 50039 AE995 Top Board for 50039 AA246...
- Page 16 Parts Breakdown Model BB-CN-0017-HC 50040...
- Page 17 Parts Breakdown Model BB-CN-0017-HC 50040 Item No. Description Position Item No. Description Position Item No. Description Position Compressor Unit Installation Board for AE987 AF847 Decoration Strip for 50040 AF841 Bottle Opener Board for 50040 50040 AE988 Base Board for 50040 AF848 Top Board for 50040 AA246...
- Page 18 Parts Breakdown Model BB-CN-0026-HC 50041...
- Page 19 Parts Breakdown Model BB-CN-0026-HC 50041 Item No. Description Position Item No. Description Position Item No. Description Position Compressor Unit Installation Board for AE987 AF854 Decoration Strip for 50041 AF841 Bottle Opener Board for 50041 50041 AE988 Base Board for 50041 AF855 Top Board for 50041 AA246...
-
Page 20: Electrical Schematics
Electrical Schematics Model BB-CN-0005-HC 50038... - Page 21 Electrical Schematics Model BB-CN-0014-HC 50039...
- Page 22 Electrical Schematics Model BB-CN-0017-HC 50040...
- Page 23 Electrical Schematics Model BB-CN-0026-HC 50041...
-
Page 24: Notes
Notes ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________... - Page 25 Notes ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________...
- Page 26 Notes ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________...
-
Page 27: Warranty Registration
Warranty Registration Thank you for purchasing an Omcan product. To register your warranty for this product, complete the information below, tear off the card at the perforation and then send to the address specified below. You can also register online by visiting: Merci d’avoir acheté... - Page 28 Since 1951 Omcan has grown to become a leading distributor of equipment and supplies to the North American food service industry. Our success over these many years can be attributed to our commitment to strengthen and develop new and existing relationships with our valued customers and manufacturers.
