OPERATION AND MAINTENANCE MANUAL
Attention!
RBNK90/RBNK120/RBNK180/RBNK120F/RBNK180F/RBNK250/
RBNK250F/RBNK350/RBNK500 is belonging to high torque series.
For safety consideration, please collaborate it with Auxiliary Arm
(KP-AUXA /KP-AUXA-500 Series).

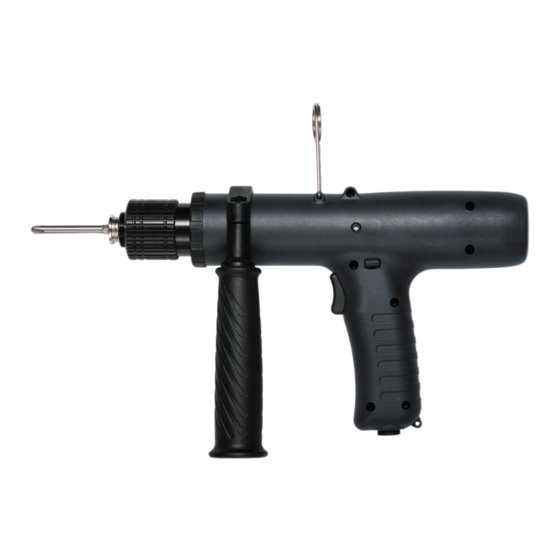

DC-TYPE Automatic Non Carbon-Brush Series
KILEWS INDUSTRIAL CO., LTD.
SKD-TBNK60L
SKD-TBNK120L
SKD-RBNK60L
SKD-RBNK90L
SKD-RBNK120L
SKD-RBNK120LF
SKD-RBNK180L
SKD-RBNK180LF
SKD-RBNK250L
SKD-RBNK350L
SKD-RBNK500L
http://www.kilews.com
SKD-TBNK90L
SKD-TBNK180L
SKD-RBNK60P
SKD-RBNK90P
SKD-RBNK120P
SKD-RBNK120PF
SKD-RBNK180P
SKD-RBNK180PF
SKD-RBNK250P
SKD-RBNK350P
SKD-RBNK500P
Y2F171A-E-010
Advertisement
Table of Contents
Related Manuals for Kilews SKD-TBNK60L
Summary of Contents for Kilews SKD-TBNK60L
- Page 1 SKD-RBNK180LF SKD-RBNK180PF SKD-RBNK250L SKD-RBNK250P SKD-RBNK350L SKD-RBNK350P SKD-RBNK500L SKD-RBNK500P Attention! RBNK90/RBNK120/RBNK180/RBNK120F/RBNK180F/RBNK250/ RBNK250F/RBNK350/RBNK500 is belonging to high torque series. For safety consideration, please collaborate it with Auxiliary Arm (KP-AUXA /KP-AUXA-500 Series). DC-TYPE Automatic Non Carbon-Brush Series KILEWS INDUSTRIAL CO., LTD. http://www.kilews.com Y2F171A-E-010...
- Page 2 NOTICE Metal Assembly Screwdrivers are designed for installing threaded fasteners in light industrial and appliance manufacturing applications. KILEWS is not responsible for customer modification of tools for applications on which KILEWS was not consulted. WARNING Important safety information enclosed. Read all these instructions before placing tool in service or operation this tool and save these instructions. It is the responsibility of the employer to place the information in this manual into the hands of the operator.
-
Page 3: Important Safety Rules
Important Safety Rules WARNING! Read all instructions Failure to follow all instructions listed below may result in electric shock fire and/or serious injure. The term “power tool” in all of the warning listed below refers to your mains operated (corded) power tool or battery operated (cordless) power tool. - Page 4 d) Store idle power tools out of reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users. Do not let visitors touch the tool or extension cord. All visitors should be kept away from work area. e) Maintain power tools.
- Page 5 7) Kindly note that SKD-RBNK60/90/120/180/120F/180F/250 will be enclosed with thetorque fixing ring. The torque fixing ring can protect the operator and avoid getting hurt by the threads on the screwdriver. And it can fix the torque and prevent the torque to be adjusted. In order to prevent getting hurt, kindly check if the torque fixing ring is fixed when using the screwdriver and adjusting the torque.
-
Page 6: Do Not Operate This Tool Without Protective Earth Connected
WARNING！ DO NOT OPERATE THIS TOOL WITHOUT PROTECTIVE EARTH CONNECTED Grounding Instructions 1、This tool should be grounded while in use to protect the operator from electric shock. NOTICE! To ensure the grounding result, the grounding conductor of the power cord must be well connected with the grounding terminal of power facility. This tool is equipped with grounding conductors. - Page 7 Operations Cautions 1)Before changing bits from RBNK Series screwdriver, make sure the Forward / Reverse switch stays at “OFF” position. Before changing bits from TBN Series screwdriver, make sure the Forward / Reverse switch stays at the middle position. The screwdriver must be unplugged. 2) To avoid damaging the housing of screwdriver, do not allow chemicals get in touch with housing of screwdriver.
-
Page 8: Description Of Operation
CAUTION ● Do not drop or abuse the tool. ● Whenever a tool is not being used, position the Power Switch to the “OFF” position and unplug the power cord. Description of Operation Attaching / detaching bit and bit type Push up the holder clamp by fingertip, and it will be unlocked. - Page 9 Servicing Maintenance and Inspection: 1. The screwdriver must be operated in top condition, one day working hour must be not more than eight hours. cording to operating frequency and torque loaded, we suggest adding lubricating oils in clutch per 3-6 months, and kindly contact with distributor when product's maintenance.
-
Page 10: Do Not Attempt To Repair This Electric Screwdriver
All repairs and maintenance of this tool and its word must be performed by an authorized service center. KILEWS is not responsible for customer modification of tools for applications on which KILEWS was not consulted. Repairs should be made only by authorized, trained personnel. Consult your nearest KILEWS authorized service center. -
Page 11: Specifications
Specifications MODEL (SKD-) TBNK60L TBNK90L TBNK120L TBNK180L Input voltage(DC) DC 40V Power Consumption hard joints 4~12 6~18 Torque (N.m) soft joints 2~4.8 3~7.2 4~9.6 6~14.4 80%↓ Unloaded Rotation Speed 1000 (R.p.m) )±10% RBNK60L RBNK90L RBNK120L RBNK180L MODEL (SKD-) RBNK60P RBNK90P RBNK120P RBNK180P Input voltage(DC) - Page 12 BIT 2 Pcs SKD-RBNK120F 180F 250 B with BIT 2 Pcs SKD-RBNK250F 350 with BIT 3 Pcs SKD-RBNK W Type Not attached Socket 2、Suspension rack and Torque fixing ring acceptable for use with the tool are available from KILEWS catalogue.
-
Page 13: Torque Adjustment Operation
7. If turn to “LO” on the power supplier, the screwdriver can’t offer high watt output, the torque on the screwdriver should be adjust under middle range to use. Please refer to Kilews website http://www.kilews.com for the detail component list. Our company reserves the right to modify...
