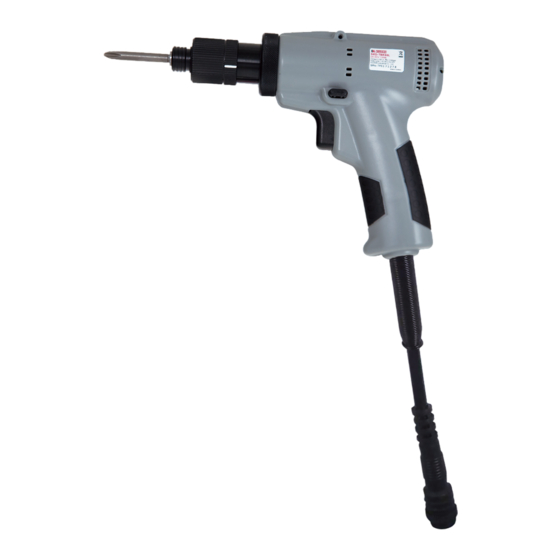

OPERATION AND MAINTENANCE MANUAL
Power source
on the bottom
SKD-TBK20L-D
SKD-TBK30L-D
SKD-TBK50L-D
SKD-TBK70L-D
SKD-TBK30LF-D
SKD-TBK35LF-D
SKD-TBK50LF-D
DC-TYPE Automatic Non Carbon-Brush Series
KILEWS INDUSTRIAL CO., LTD.
SKD-TBK20L-U
SKD-TBK30L-U
SKD-TBK50L-U
SKD-TBK70L-U
SKD-TBK30LF-U
SKD-TBK35LF-U
SKD-TBK50LF-U
http://www.kilews.com
Power source
on the top
Y2F184A-1-007
Advertisement
Table of Contents
Related Manuals for Kilews SKD-TBK20L-D
Summary of Contents for Kilews SKD-TBK20L-D

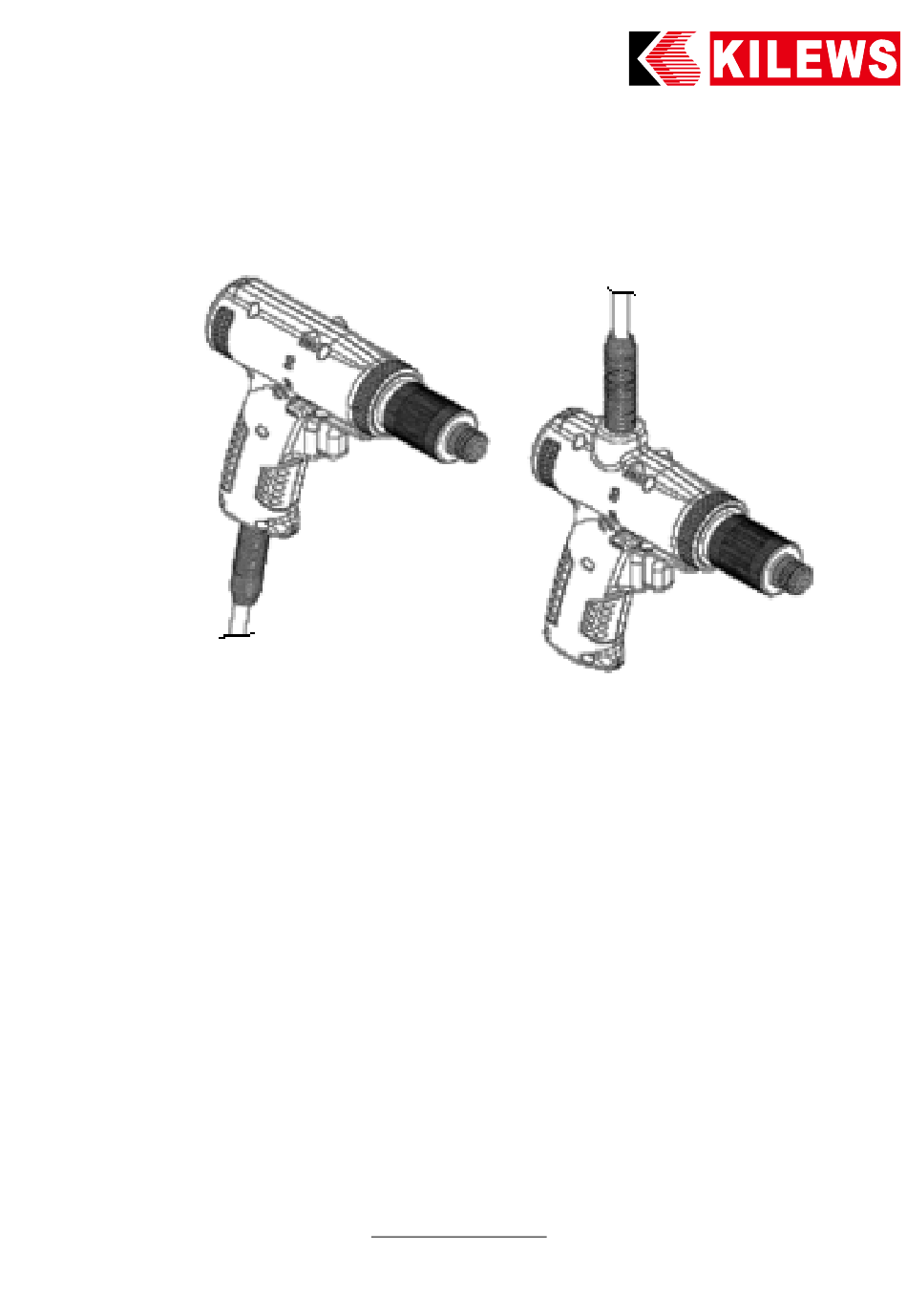

- Page 1 OPERATION AND MAINTENANCE MANUAL Power source Power source on the top on the bottom SKD-TBK20L-D SKD-TBK20L-U SKD-TBK30L-D SKD-TBK30L-U SKD-TBK50L-D SKD-TBK50L-U SKD-TBK70L-D SKD-TBK70L-U SKD-TBK30LF-D SKD-TBK30LF-U SKD-TBK35LF-D SKD-TBK35LF-U SKD-TBK50LF-D SKD-TBK50LF-U DC-TYPE Automatic Non Carbon-Brush Series KILEWS INDUSTRIAL CO., LTD. http://www.kilews.com Y2F184A-1-007...
- Page 2 NOTICE Metal Assembly Screwdrivers are designed for installing threaded fasteners in light industrial and appliance manufacturing applications. KILEWS is not responsible for customer modification of tools for applications on which KILEWS was not consulted. WARNING Important safety information enclosed. Read all these instructions before placing tool in service or operation this tool and save these instructions. It is the responsibility of the employer to place the information in this manual into the hands of the operator.
-
Page 3: Important Safety Rules
Important Safety Rules WARNING! Read all instructions Failure to follow all instructions listed below may result in electric shock fire and/or serious injure. The term “power tool” in all of the warning listed below refer to your mains operated (corded) power tool or battery operated (cordless) power tool. - Page 4 4) Power tool Use and Care a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed. b) Do not use power tool if switch does not turn it on or off.
- Page 5 Product Name Description Use Convenient Production Lines Able to Hook Hanging Device Balancers Work Suspension Hook Together With The Tools to be More Efficiently。 to connect to cable。 15 cm cord Fixed Bit Use。 Bit Ssleeve For Hex Adjust torque Use。 Torque Adjusting Ring Fixed upside-underside housing and clutch Use。...
-
Page 6: Grounding Instructions
Grounding Instructions 1、This tool should be grounded while in use to protect the operator from electric shock. NOTICE ! To ensure the grounding result, the grounding conductor of the power cord must be well connected with the grounding terminal of power facility. - Page 7 Operations Cautions 1) Before changing bits from TBK Series screwdriver, make sure the Forward / Reverse switch stays at the middle position The screwdriver must be unplugged. 2) To avoid damaging the housing of screwdriver, do not allow chemicals get in touch with housing of screwdriver. Ex.: Acetone, benzene, thinner, trichloroethylene ketone, and other similar chemicals.
-
Page 8: Description Of Operation
CAUTION ● Do not drop or abuse the tool. ● Whenever a tool is not being used, position the Power Switch to the “middle” position and unplug the power cord. Description of Operation Attaching / detaching bit and bit type Push down the holder clamp by finger tip, and it will be unlocked. -
Page 9: Do Not Attempt To Repair This Electric Screwdriver
2. All repairs and maintenance of this tool and its word must be performed by an authorized service center. 3. KILEWS is not responsible for customer modification of tools for applications on which KILEWS was not consulted. 4. Repairs should by made only by authorized, trained personnel. Consult your nearest KILEWS authorized service center. -
Page 10: Specifications
Specifications MODEL (SKD-) TBK20L TBK30L TBK50L TBK30LF TBK35LF TBK50LF TBK70L Input voltage (DC) DC 40V Power Consumption Hard Joint 0.3~2 0.8~3 1.0~3.0 1.2~3.5 2.5~7 Torque (N.m) Soft Joint 0.3~1.6 0.8~2.4 1.0~2.4 1.2~2.8 2.5~5.6 1200 1200 3300 1700 1000 Unloaded Rotation Speed (R.p.m) ±10% 2475 1275... -
Page 11: Torque Adjustment Operation
1. Please read the operation caution carefully before using our screwdriver, and follow the safety information to use this power supplier. 2. Please choose the applicable must work with KILEWS 6PIN power cord assembly and power controller according to the screwdriver model specifications shown.
