OPERATION AND MAINTENANCE MANUAL
Please scan the following QR code or download
the operation manual from KILEWS website
https://www.kilews.com.tw/tc/download-list.php

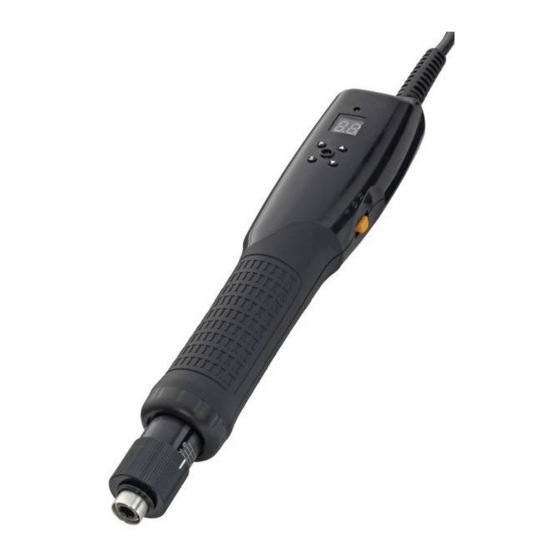

DC-TYPE Automatic Non-Carbon-Brush with Counter Series
Ver. 4.0
SKD-BE210P
KILEWS INDUSTRIAL CO., LTD.
http://www.kilews.com
SKD-BE203L
SKD-BE207L
SKD-BE210L
SKD-BE203LS5
SKD-BE203LS6
SKD-BE203LS7
Y2F141Q-4E-001
Advertisement
Table of Contents
Related Manuals for Kilews SKD-BE203L
Summary of Contents for Kilews SKD-BE203L
- Page 1 OPERATION AND MAINTENANCE MANUAL SKD-BE203L SKD-BE207L SKD-BE210L SKD-BE203LS5 SKD-BE203LS6 SKD-BE203LS7 Ver. 4.0 SKD-BE210P Please scan the following QR code or download the operation manual from KILEWS website https://www.kilews.com.tw/tc/download-list.php DC-TYPE Automatic Non-Carbon-Brush with Counter Series KILEWS INDUSTRIAL CO., LTD. http://www.kilews.com Y2F141Q-4E-001...
- Page 2 NOTICE Metal Assembly Screwdrivers are designed for installing threaded fasteners in light industrial and appliance manufacturing applications. KILEWS is not responsible for customer modification of tools for applications on which KILEWS was not consulted. WARNING Important safety information enclosed. Read all these instructions before placing tool in service or operation this tool and save these instructions. It is the responsibility of the employer to place the information in this manual into the hands of the operator.
-
Page 3: Important Safety Rules
Important Safety Rules WARNING! Read all instructions Failure to follow all instructions listed below may result in electric shock fire and/or serious injure. The term “power tool” in all of the warning listed below refers to your mains operated (corded) power tool or battery operated (cordless) power tool. - Page 4 d) Store idle power tools out of reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users. Do not let visitors touch the tool or extension cord. All visitors should be kept away from work area. e) Maintain power tools.
-
Page 5: Grounding Instructions
Grounding Instructions 1、 This tool should be grounded while in use to protect the operator from electric shock. NOTICE! To ensure the grounding result, the grounding conductor of the power cord must be well connected with the grounding terminal of power facility. This tool is equipped with grounding conductors. - Page 6 Operations Cautions 1) Whenever changing a bit, make certain the Forward / Reverse Switch is in the “OFF “position and tool is unplugged. 2) Do not allow chemicals such as acetone, benzene, thinner, trichloroethylene ketone, or other similar chemicals to come in contact with the screwdriver housing as damage will result.
-
Page 7: Description Of Operation
Description of Operation Attaching / detaching bit and bit type Push up the holder clamp by finger tip, and it will be unlocked. Thus, the bit can be freely attached and detached (single finger notion type) select such a bit whose shank is equal to the size shown below. ... -
Page 8: Do Not Attempt To Repair This Electric Screwdriver
2.All repairs and maintenance of this tool and its word must be performed by an authorized service center. 3.KILEWS is not responsible for customer modification of tools for applications on which KILEWS was not consulted. -
Page 9: Specifications
00# & 0# & 1# 1 Pcs. Each BE210 with BIT M3 Ø 4×40 1# & 2# 1 Pcs. Each 2.Suspension rack and Torque fixing ring acceptable for use with the tool are available from KILEWS catalogue./Torque Fixing Ring (KC-13C) 1 Pcs. -
Page 10: Panel Specifications
Panel Specifications Name Function Three-Color To Show operating is OK, N.G or in the mode condition. Light Panel To show set value, set screws number and other value Push five seconds: to disable COUNTING FUNCTION Power Switch CLEAR Push three seconds: CLEAR SELECT Key Push three seconds: Enter the system Up Key... - Page 11 ※SELECT (P+UP Enter into Menu) Sr Key Function Set up Time Factory default Description Buzz Time/ Light Name and Value settings OKALL display mode _Y: Small loop；N: Big loop Y or N ※Auto learning mode “Ln” (S+P Enter into Menu) SL=SC=At=RC=SP=Ht=P Key Function Set up Time Factory default...
- Page 12 ※SKD-BE PCB has three kinds of signal, OKALL、NG、OK and GATE and is an open collector type. ※Output users need input voltage to drive the buzzer, the input voltage can’t be over DC24V 10mA. ※There is a new judgment which is the screwdriver will judge a N.G.in the case of there is a start signal and it is OFF before Lt. ※If operator controls these functions from PLC close short circuit will take 500ms at least.
- Page 13 ※LED light flash in simulate-learning.( means under simulate- learning condition), push P key to record value after simulate -learning. ) ※As no use of screwdrivers: UP and push P key can set up waiting time. If three seconds are set, but no starting signal after set time, it will buzz. ※Push R key to restore to factory settings.
-
Page 14: Torque Adjustment Operation
User could test the torque output of the screwdriver by torque meter periodically and then adjust it to meet user’s requirement for the compensation of the torque decay. 5. Please refer to Kilews website http://www.kilews.com for the detail component list.
