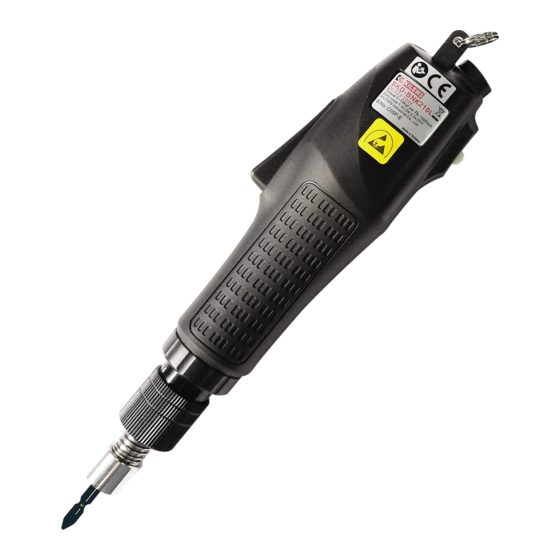

- Page 1 OPERATION AND MAINTENANCE MANUAL SKD-BNK203L SKD-BNK207L SKD-BNK210L SKD-BNK203LS5 SKD-BNK203LS6 SKD-BNK203LS7 SKD-BNK210P DC-TYPE Automatic Non-Carbon-Brush Series KILEWS INDUSTRIAL CO., LTD. http://www.kilews.com Y2F166A-E-004...
- Page 2 NOTICE Metal Assembly Screwdrivers are designed for installing threaded fasteners in light industrial and appliance manufacturing applications. KILEWS is not responsible for customer modification of tools for applications on which KILEWS was not consulted. WARNING Important safety information enclosed. Read all these instructions before placing tool in service or operation this tool and save these instructions. It is the responsibility of the employer to place the information in this manual into the hands of the operator.
-
Page 3: Important Safety Rules
Important Safety Rules WARNING! Read all instructions Failure to follow all instructions listed below may result in electric shock fire and/or serious injure. The term “power tool” in all of the warning listed below refers to your mains operated (corded) power tool or battery operated (cordless) power tool. - Page 4 d) Store idle power tools out of reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users. Do not let visitors touch the tool or extension cord. All visitors should be kept away from work area. e) Maintain power tools.
-
Page 5: Do Not Operate This Tool Without Protective Earth Connected
WARNING！ DO NOT OPERATE THIS TOOL WITHOUT PROTECTIVE EARTH CONNECTED Grounding Instructions 1、This tool should be grounded while in use to protect the operator from electric shock. NOTICE! To ensure the grounding result, the grounding conductor of the power cord must be well connected with the grounding terminal of power facility. This tool is equipped with grounding conductors. - Page 6 Operations Cautions 1) Whenever changing a bit, make certain the Forward / Reverse Switch is in the “ OFF “ position and tool is unplugged. 2) To avoid damaging the housing of screwdriver, do not allow chemicals get in touch with housing of screwdriver. Ex.: Acetone, benzene, thinner, trichloroethylene ketone, and other similar chemicals.
-
Page 7: Description Of Operation
Description of Operation Attaching / detaching bit and bit type Push up the holder clamp by fingertip, and it will be unlocked. Thus, the bit can be freely attached and detached (single finger notion type) select such a bit whose shank is equal to the size shown below. ... -
Page 8: Do Not Attempt To Repair This Electric Screwdriver
All repairs and maintenance of this tool and its word must be performed by an authorized service center. KILEWS is not responsible for customer modification of tools for applications on which KILEWS was not consulted. Repairs should be made only by authorized, trained personnel. Consult your nearest KILEWS authorized service center. -
Page 9: Specifications
Ø4×40 1# & 2# 1 Pce. Each SKD-BNK210P with BIT M3 Ø4×40 1# & 2# 1 Pce. Each 2.Suspension rack and Torque fixing ring acceptable for use with the tool are available from KILEWS catalogue. 3.Torque Fixing Ring 1 Pcs... -
Page 10: Torque Adjustment Operation
1. Please read the operation manual before you use and follow safety rules to operate the power controller. 2. The power controller must be used with original KILEWS 6-pin Electric Screwdrivers. 3. BNK203 Series electric screwdriver collocates with SKP-BE32HL additional.
