montpellier MIWM84-1 Installation And Operating Instructions Manual

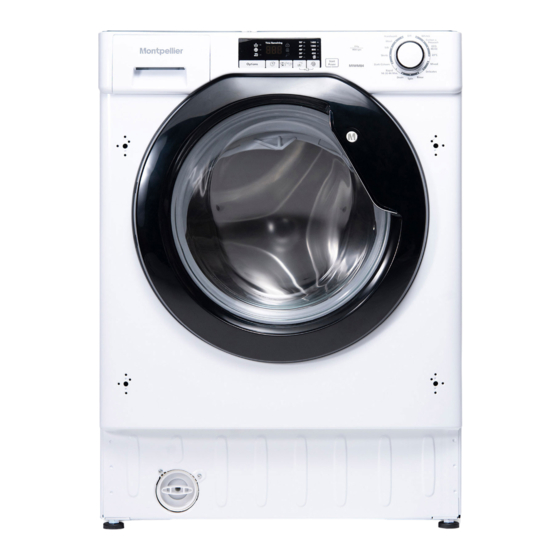

Built-in washing machine
Hide thumbs

Advertisement

Quick Links

THE PERFECT BALANCE OF FUNCTION AND STYLE
LAUNDRY - DISHWASHING - COOKING - COOLING
Installation and Operating Instructions
Built-In Washing Machine
MIWM84-1
Please read these instructions carefully before attempting to install or use this appliance.
We recommend that you keep these instructions in a safe place for future reference.

Advertisement

loading
Need help?

Need help?

Do you have a question about the MIWM84-1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for montpellier MIWM84-1

Summary of Contents for montpellier MIWM84-1

  • Page 1 LAUNDRY - DISHWASHING - COOKING - COOLING Installation and Operating Instructions Built-In Washing Machine MIWM84-1 Please read these instructions carefully before attempting to install or use this appliance. We recommend that you keep these instructions in a safe place for future reference.
  • Page 2 Welcome Thank you for choosing this Montpellier appliance. Our appliances have been designed to provide you with the best combination of style, reliability and performance to give you years of trouble-free use. You may be familiar with a similar product, but please take time to read these instructions carefully before installing or using your appliance to ensure you get the most from your purchase.

  • Page 3: Table Of Contents

    Carefully read this manual for correct and Contents safe appliance use and for helpful tips on efficient maintenance. 1. GENERAL SAFETY RULES 2. INSTALLATION Only use the washing machine after 3. DETERGENT DRAWER carefully reading these instructions. We recommend you always keep this manual on 4.

  • Page 4: General Safety Rules

    in a safe way and understand the 1. GENERAL SAFETY hazards involved. RULES Children shall not play with the This appliance is intended l appliance. Cleaning and user for domestic household use maintenance shall not be made only. by children without supervision. Your Washing machine conforms l...
  • Page 5 Do not expose the washing l Electrical connections machine to rain, direct sunlight safety instructions or other weather elements. Protect from possible freezing. The technical details (supply l voltage and power input) are When moving, do not lift the indicated on the product rating l...

  • Page 6: Installation

    2. INSTALLATION l Remove the 2 or 4 transportation bolts (A) on the back and remove the 2 or 4 flat washers, rubber bungs and plastic spacer tubes (B) as illustrated in figure 1. l If the washing machine is built-in, unscrew the 3 or 4 transportation bolts (A) and remove the 3 or 4 flat washers, rubber bungs and...
  • Page 7 Instructions for mounting the furniture door Position the template onto the reverse of the furniture door. It is possible to mount the hinges and closure magnet on the right or left-hand side depending on your requirements. Mark the screw hole positions, then drill out these positions.
  • Page 8 l Mount the furniture door to the front of the washer using the hinges. Fix the spacers (I) in place with the 2 screws (J) and then fix the hinges with 2 screw (H). We suggest mounting the furniture door so that it opens towards the left, which is the same direction as the porthole door.
  • Page 9 Hydraulic connections l Connect the water hose to the water supply tap (fig. 3) only using the hose supplied with the appliance (do reuse old hose-sets). l SOME MODELS may include one or more of the following features: l HOT&COLD (fig. 4): water mains connection settings with hot and cold water for higher energy savings.
  • Page 10 Setting l The washing machine should be installed in its final position such that the water fill hose is not kinked or trapped. The corrugated drain hose should be inserted into suitable drain pipe of between 50 cm and 85 cm height above the floor using the curved drain hose support.

  • Page 11: Detergent Drawer

    3. DETERGENT DRAWER detergent draw split into compartments as illustrated in figure 9: l compartment "1": for prewash detergent; l ” : for special additives, compartment “ softeners, starch fragrances, etc.; WARNING: only use liquid products; the washing machine is set to automatically dose additives at each cycle during the last rinse.

  • Page 12: Practical Hints

    Maximise the load size 4. PRACTICAL HINTS l Achieve the best use of energy, water, Load tips detergent time using recommended maximum load size. When sorting laundry, make sure: Save up to 50% energy by washing a full load instead of 2 half loads. - have eliminated metallic objects such as hair clips, pins, coins, from laundry;...
  • Page 13 The use of ecological detergents without When washing heavily soiled whites, phosphates cause following we recommend using cotton programs of effects: 60°C or above and a normal washing powder (heavy duty) that contains - cloudier rinse drain water: This effect is bleaching agents that at medium/high tied to the suspended zeolites which do temperatures provide excellent results.

  • Page 14: Cleaning And Maintenance

    l 5. CLEANING AND Remove and clean the filter; when finished, replace it turning it clockwise. MAINTENANCE The filter handle will be locked when it is not possible to turn any further and the Looking after your appliance correctly can extend its lifespan.

  • Page 15: Quick User Guide

    6. QUICK USER GUIDE 7. CONTROLS AND PROGRAMS This washing machine automatically adjusts the level of the water to the type and quantity of washing. This system gives a reduction in energy consumption and a saving in washing times. Program selection l...
  • Page 16 l Press to start the selected cycle. Opening the door When the START/PAUSE button has A special safety device prevents the been pressed, the appliance can take door from being opened immediately few seconds before it starts working. after the end of the cycle. Wait for 2 minutes after the wash cycle has finished and the "Door PAUSING THE MACHINE...
  • Page 17 time the button is pressed, until h24 - EASY IRON appears on the display, at which point This function allows you to minimizes pressing the button again will reset the creases as much as possible, eliminating delay start to zero. the intermediate spins or reducing the intensity of the last one.
  • Page 18 l The key lock can be simply cancelled by SPIN SPEED button pressing the two buttons simultaneously again or turning off the appliance. l By pressing this button, it is possible to reduce the maximum speed, and if you wish, the spin cycle can be cancelled. Digital Display l...
  • Page 19 l - adjusts the spin speed according to the When START/PAUSE is pressed on load, thus avoiding any imbalance. the machine with the door closed, the indicator will flash momentarily and then illuminate. 5) KEY LOCK INDICATOR LIGHT The indicator light show that the keys are If the door is not properly closed, locked.
  • Page 20 Table of programmes (MAX.) PROGRAMME (see control panel) (MAX.) Whites 90° Cottons + 60° Prewash Eco 40-60 60° 20°C 20° Mixed 60° Delicates 40° Rinse Spin Drain 30° 30° Rapid 14-30-44 Min. 40° Dark Colours 40° Shirts 30° Silk 30° Wool 40°...
  • Page 21 Please read these notes: INFORMATION FOR THE TEST Maximum load capacity of dry clothes, LABORATORIES according to the model used (see control panel). STANDARD PROGRAMMES ACCORDING TO When a programme is selected, on the display is shown the (EU) No 1015/2010 e No 1061/2010 display shows the recommended ECO 40-60 PROGRAMME...
  • Page 22 Rinse Programmes selection This program performs 3 rinses with an intermediate spin (which can be reduced or To clean different types of fabrics and excluded by using the appropriate button). It various levels of dirt, the washing machine is used for rinsing any type of fabric, for has specific programs to meet every need example after a wash carried out by hand.

  • Page 23: Troubleshooting And Warranty

    8. TROUBLESHOOTING AND WARRANTY If you believe the washing machine is not working correctly, consult the quick guide provided below which includes some practical tips on how to fix the most common problems. ERROR CODE FORMAT l Models with a display: the error is shown by a number preceded by the letter “E” (example: E2 = Error 2).
  • Page 24 OTHER ANOMALIES Problem Possible causes and practical solutions Make sure the product is plugged into a working supply socket. The washing machine Make sure power is on. does not work / start Make sure the wall socket is working, testing it with another appliance such as a lamp.
  • Page 25 It is always recommended to use original By placing the mark on this spare parts, that are available at our product, we are confirming compliance Authorised Customer Service Centres. to all relevant European safety, health and environmental requirements which are applicable in legislation for this Warranty product.
  • Page 26 MIWM84-1 Model identifier: General product parameters: Parameter Value Parameter Value Rated capacity (kg) Dimensions in cm Height Width Depth 80.0 Energy efficiency class Washing efficiency 1.04 Rinsing effectiveness index (g/kg) Energy consumption 0.727 Water consumption in fk hldsk in kWh per cycle,...
  • Page 27 Your 2 year Manufacturer's guarantee THIS DOES NOT AFFECT YOUR STATUTORY RIGHTS. Your new Montpellier appliance carries a free guarantee which protects you against the cost of repairs during the first 24 months from date of purchase provided that: Any claim is accompanied by evidence of the model reference, model serial number and proof of purchase, such as a Sales Receipt, showing that the appliance was purchased within the 24 months prior to the date of claim.
  • Page 28 Montpellier Domestic Appliances Ltd. Unit 1, Tewkesbury Retail Park, Northway Lane, Tewkesbury, Gloucestershire GL20 8JU www.montpellier-appliances.com The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.
