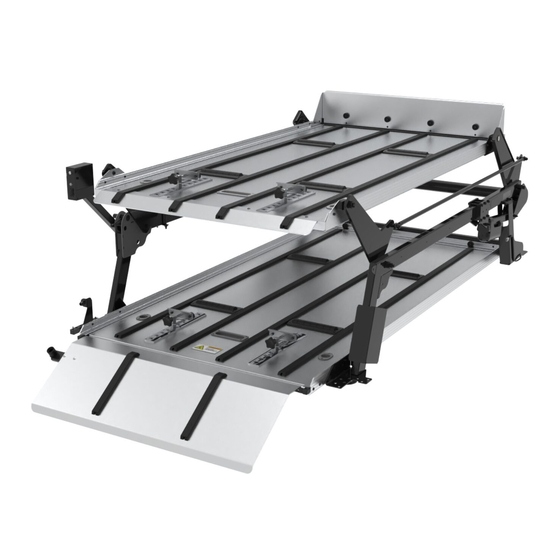

- Page 1 OPERATION & MAINTENANCE MANUAL DD2000-XLC 7226A000 Link Mfg. Ltd. 223 15th St. N.E. Sioux Center, IA USA 51250-2120 www.linkmfg.com QUESTIONS? CALL CUSTOMER SERVICE 1-800-222-6283 72262112 JAN 24, 2023...
-
Page 2: Safe Working Practices
We want to help you to get the best results from the deck and to operate it safely. This manual Link products must be installed by a trained technician contains information to introduce you to the Link when being placed into an Electric Vehicle (EV). Electric... -
Page 3: Operation
5. OPERATION 5.2 Loading / Unloading Procedure 1. With the vehicle in park and the parking brake WARNING secured, open the rear door of the vehicle. Make certain the vehicle is in park and the park- 2. Fold down the rear ramp. ing brake is engaged before loading / unloading the vehicle. -
Page 4: Maintenance
Perform maintenance work from outside the deck, whenever possible. The DD2000-XLC is designed to last for many years without any major maintenance. Periodically, check the following items: Each Time the System is Used: Listen for unusual noises and watch to ensure proper movement of the system. If there is a prob- ... - Page 5 7. SERVICE Procedure for replacing an inoperative actuator: 1. If the deck is lowered, or can be lowered, skip to step 6. If the deck is raised and stuck, complete steps 2 through 5 before proceeding. CAUTION Park the vehicle in a level, flat area, and apply the parking brake before performing any maintenance. ...
- Page 8 ITEM DESCRIPTION ITEM DESCRIPTION 1/4 X 1 1/4 UNC HEX CAP SCR 30 PIN-BIER, ADJUSTABLE 3/8 X 1 UNC HEX CAP SCR 31 BIER PIN HOLDER 3/8 X 2 1/2 UNC HEX CAP SCR 32 TUBE-MOUNT, RAMP 3/8 X 3 1/4 UNC HEX CAP SCR 33 WASHER-FLOOR SUPPORT 7/16 X 1 1/2 UNC HEX CAP SCR 34 TUBE-MOUNT, RAMP...
- Page 10 LINK MANUFACTURING, LTD. 223 15TH ST. NE, SIOUX CENTER, IA 51250 1-800-222-6283 www.linkmfg.com...
