Pump/Motor Specifications - DeWalt DXCMSAC260 Instruction Manual

Air Compressor
A. Pump Air Intake Filter
B. Auto (-) / Off (O) Switch
C. Air Tank Pressure Gauge
D. Regulated Pressure Gauge
E. Pressure Regulator
F. Quick Connect
G. Safety Valve
H. Air Tank Drain Valve
I. Check Valve
J. Wheel
K. Isolator

Pump/Motor Specifications

Oil Free
Direct Drive
4.0 SCFM @ 90 PSI
Voltage: Single Phase 120V
Minimum Branch Circuit Requirement: 15A
Fuse Type: Time Delay
Specifications
MODEL
WEIGHT
HEIGHT
WIDTH
LENGTH
AIR TANK CAPACITY
APPROX. CUT-OUT PRESSURE 175 PSI
DXCMSAC260
122 lbs (55.4KG)
49"
20.1"
23"
26 gallons (98,4 liters)
2

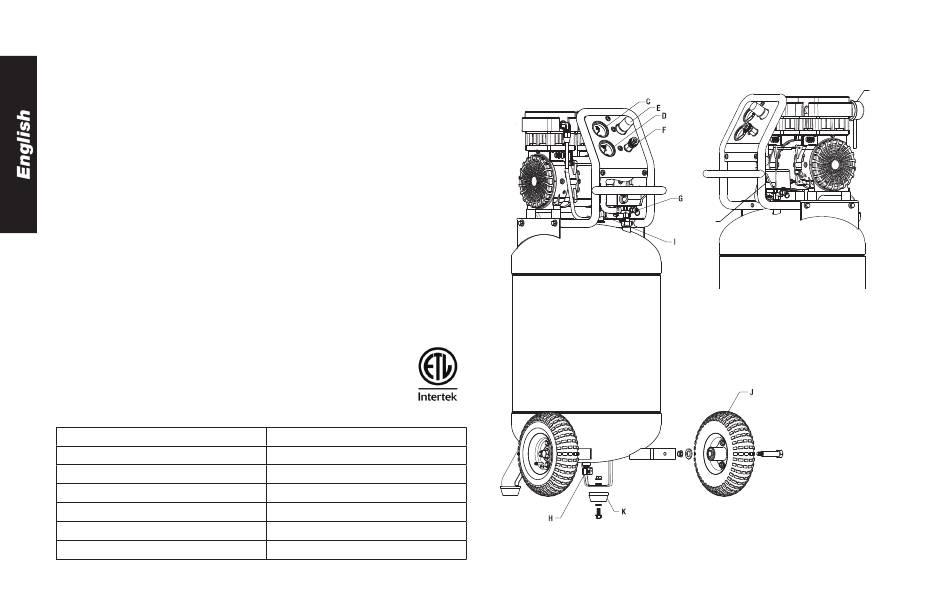

FIG. 1
A
B
