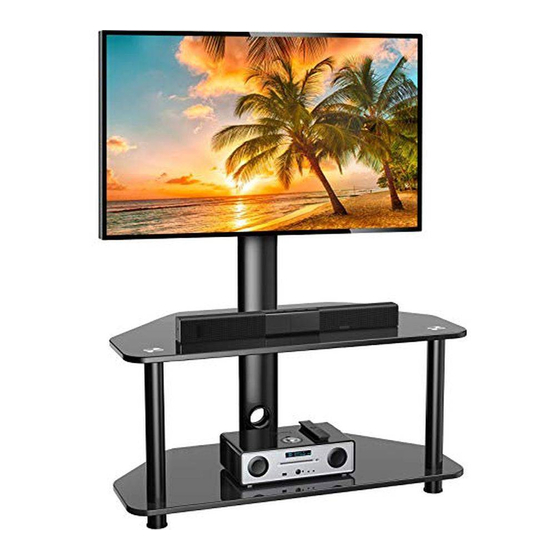

TV Stand Instruction Manual
Website:
www.perlesmith.com
Model: PSFS03
Thank you for choosing this PERLESMITH product! At PERLESMITH we
strive to provide you with the best quality products and services in the
industry. Please share your experience of our product with others at
www.perlesmith.com/pages/reviews if you are satisfied. Should you have
any issues, please don't hesitate to contact us.
Technical Support:
1-800-556-6806 Mon-Fri 10am - 5pm (PST) (USA) (CAN)
Other Info:
supportus@perlesmith.com (US)
supportca@perlesmith.com (CA)
V2.0
Advertisement
Related Manuals for Perlesmith PSFS03
Summary of Contents for Perlesmith PSFS03
- Page 1 TV Stand Instruction Manual V2.0 Model: PSFS03 Thank you for choosing this PERLESMITH product! At PERLESMITH we strive to provide you with the best quality products and services in the industry. Please share your experience of our product with others at www.perlesmith.com/pages/reviews if you are satisfied.
- Page 2 We hereby disclaim any liability for injury or damage arising from incorrect assembly, incorrect mounting, or incorrect use of this product. • Please check www.perlesmith.com for more products and company information. Tip over Warning Serious or fatal crushing injuries can occur from tip over. To help prevent tip over: ●...
- Page 3 Supplied Parts and Hardware Supplied Parts Tempered Glass Tempered Glass Support Pillar Foot Support Pillar Base Base M6x450mm M8x445mm Foot Support Pillar Support Pillar Connecting Rod Connecting Rod M10x620mm Connecting Rod Foot Cover Transfer Plate TV Bracket TV Plate Supplied Hardware for Assembling the TV stand M8x22mm 13/64 in.
- Page 4 Step 1 Screw the Connecting Rods [9 and 10] to the Tempered Glass Base [1] Tempered Glass M6x450mm Base Connecting Rod M8x445mm Connecting Rod Step 2 Slide the Support Pillars to the Connecting Rods Support Pillar Support Pillar Note: Make sure the two connecting rods can pass through the two holes at the top of the support pillar [5] Back Front...
- Page 5 Step 3 Secure Tempered Glass Base [2] and the Feet [4 and 6] to the Connecting Rods Tempered Glass Foot Base Foot Cover Foot M8x22mm 13/64 in. (5mm) Bolt Allen Key Make sure matte side of tempered glass base [2] Down faces upward as shown in this figure...
- Page 6 Step 5 Secure Support Pillar [7 and 8] to the Tempered Glass Base [1] Support Pillar Support Pillar Transfer Plate Wrench M10 Nut Decorative Cover Please don’t fully tighten nuts [D1] until Step 7 to fix all the bolts in the right holes.
- Page 7 Step 7 Secure the TV Plate [15] Support Pillar M8x16mm Bolt 13/64 in. (5mm) Wrench Allen Key Make sure all the bolts are fully tightened before putting on your TV. The hole on the TV Plate [15] should be aligned with the hole on the Transfer Plate [13].
- Page 8 Step 8 Secure the TV Brackets [14] to TV TV Bracket TV Bolts (Only one bolt size fits your TV) Note: The bolts are shown in accordance with the actual size M4x30mm M6x15mm M6x30mm M8x20mm M8x50mm Note: The spacers are shown in accordance with the actual size M6/M8 L16mm...
- Page 9 Please Note: When using the spacers it is important to note that they can be used in multi-layers (meaning stacked). If you have any difficulty understand- ing how to install the TV bolts or spacers, please contact customer service at supportus@perlesmith.com (US)/ supportca@perlesmith.com (CA). CAUTION: Ensure the TV brackets [14] are EQUALLY CENTERED on your TV and securely fastened in place.
- Page 10 Option B (For Round Back TV) S7/S2/S4 (If needed) S6-1/S6-2 Alternate Spacer Setups Option C (For TV with A “Bump”) Spacers may be necessary for 2 holes ONLY. S7/S1/S3 S7/S2/S4 (If needed) (If needed) S6-1 (If needed) S6-1/S6-2 Alternate Spacer Setups Option D For cable interference or inset holes, use spacers [S6-1] and [S6-2] to create extra...
- Page 11 Step 9 Secure TV to TV Plate [15] and Manage the Wires Cable Clip TV brackets are two-height-adjustable. You can choose the proper height. The First Choice The Second Choice Step 9-1 Hang the TV with brackets to the TV plate Step 9-2 Push the bottom of the TV to TV plate Step 9-3 Tighten the bolts until the bolts touch the TV plate.
- Page 12 Step 10 Adjust the Swivel Angle If necessary, the TV plate or TV can be swivelled manually.
- Page 13 Step 11 Attach the TV Stand to the Wall (Optional) Mounting Bracket Steel Cable Long Screw Short Bolt Plastic Anchor Note: It is recommend to use this tipping restraint to attach this unit to the wall to prevent possible accidents and/or injuries. WALL Solid Concrete or Concrete Block...
- Page 14 Thank you again choosing this PERLESMITH product! All of us at PERLESMITH do appreciate your product purchase. We hope that you are as happy with your product as we are designing and manufacturing it for you. We strive to provide you with the best quality products and services in the industry.
- Page 16 Perlesmith offers products in these categories Anti-tip Straps TV Stands AV Shelves Speaker Stands TV Carts Full Motion Mounts Tilt Mounts Corner Mounts Please remember us when you need one.
