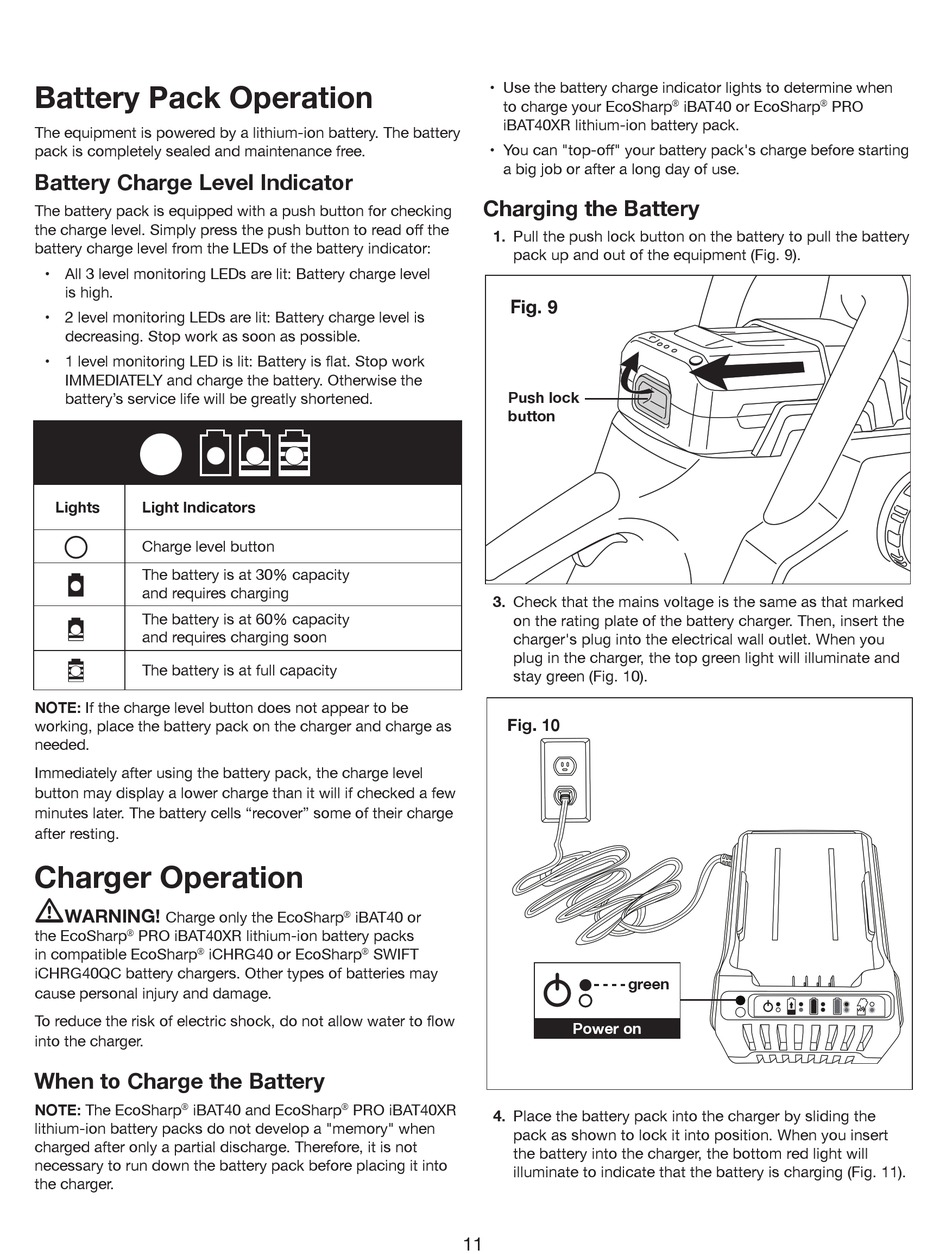

Battery Pack Operation

The equipment is powered by a lithium-ion battery. The battery
pack is completely sealed and maintenance free.
Battery Charge Level Indicator
The battery pack is equipped with a push button for checking
the charge level. Simply press the push button to read off the
battery charge level from the LEDs of the battery indicator:
• All 3 level monitoring LEDs are lit: Battery charge level
is high.
• 2 level monitoring LEDs are lit: Battery charge level is
decreasing. Stop work as soon as possible.
• 1 level monitoring LED is lit: Battery is flat. Stop work
IMMEDIATELY and charge the battery. Otherwise the
battery's service life will be greatly shortened.
Lights Light Indicators
Charge level button
The battery is at 30% capacity
and requires charging
The battery is at 60% capacity
and requires charging soon
The battery is at full capacity
NOTE: If the charge level button does not appear to be
working, place the battery pack on the charger and charge as
needed.
Immediately after using the battery pack, the charge level
button may display a lower charge than it will if checked a few
minutes later. The battery cells "recover" some of their charge
after resting.

Charger Operation

m
WARNING!
Charge only the EcoSharp
the EcoSharp PRO iBAT40XR lithium-ion battery packs
®
in compatible EcoSharp iCHRG40 or EcoSharp
®
iCHRG40QC battery chargers. Other types of batteries may
cause personal injury and damage.
To reduce the risk of electric shock, do not allow water to flow
into the charger.
When to Charge the Battery
NOTE: The EcoSharp
iBAT40 and EcoSharp
®
lithium-ion battery packs do not develop a "memory" when
charged after only a partial discharge. Therefore, it is not
necessary to run down the battery pack before placing it into
the charger.
• Use the battery charge indicator lights to determine when
to charge your EcoSharp
iBAT40XR lithium-ion battery pack.
• You can "top-off" your battery pack's charge before starting
a big job or after a long day of use.
Charging the Battery
1. Pull the push lock button on the battery to pull the battery
pack up and out of the equipment (Fig. 9).
Fig. 9
Push lock
button
3. Check that the mains voltage is the same as that marked
on the rating plate of the battery charger. Then, insert the
charger's plug into the electrical wall outlet. When you
plug in the charger, the top green light will illuminate and
stay green (Fig. 10).
Fig. 10
iBAT40 or
®
SWIFT
®
PRO iBAT40XR
®
4. Place the battery pack into the charger by sliding the
pack as shown to lock it into position. When you insert
the battery into the charger, the bottom red light will
illuminate to indicate that the battery is charging (Fig. 11).
11
iBAT40 or EcoSharp
®
green
Power on
PRO
®
