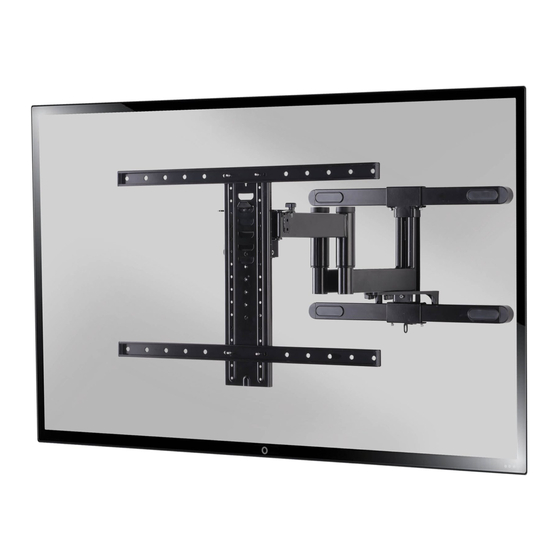

VODLF125-B2

INSTRUCTION MANUAL

Texto en español, página 14

Texte français page 16

Summary of Contents for LEGRAND SANUS VODLF125-B2

Page 1 VODLF125-B2 INSTRUCTION MANUAL 中文文字说明请参见第 26 页 Texto en español, página 14 Deutscher Text Seiten 18 Svensk text sida 22 日本語は 28 ページ Texte français page 16 Nederlandse tekst op pagina 20 Русский текст: стр. 24 WE’RE HERE TO HELP Want to watch a video that Get it right the ﬁrst time.
Page 2: Wall Construction
IMPORTANT SAFETY INSTRUCTIONS – PLEASE READ MANUAL PRIOR TO USE – SAVE THESE INSTRUCTIONS Please read through these instructions completely to be sure you’re comfortable with this easy install process. Check your TV owner’s manual to see if there are any special requirements for mounting your TV. If you do not understand these instructions or have doubts about the safety of the installation, assembly or use of this product, contact Customer Service at +1-800-359-5520 (EMEA: +31 (0) 495 580 852;...
Page 3: Before You Begin
Dimensions 23.62in 600mm 15.75in 400mm 3.94in 100mm 3.94in 100mm 7deg 16.00in 406.4mm 13deg DOWN 25.0in 1.77in 634mm 45mm 44deg 44deg 10.36in 263.1mm SIMULATED 65" FLAT SCREEN TV 26.97in 2.74in 685.1mm 69.5mm 17.01in 432mm BEFORE YOU BEGIN Remove the stand Install any accessories Protect the face from your TV —...
Page 4: Supplied Parts And Hardware
Supplied Parts and Hardware WARNING: This product contains small items that could be a choking hazard if swallowed. Before starting assembly, verify all parts are included and undamaged. If any parts are missing or damaged, do not return the damaged item to your retailer; contact Customer Service. Never use damaged parts! NOTE: Not all hardware included will be used.
Page 5 STEP 1 Attach TV Bracket to TV 1.1 Select TV Screw Diameter Only one screw size fits your TV. NOTE: If your TV included inset spacers or adapters, use them UNDER the mount hardware. 1.2 Select TV Screw Length and Spacers NO SPACER SPACER NEEDED •...
Page 6 1. 3 Attach Horizontal TV Brackets to Your TV NO SPACER SPACER NEEDED Position vertical TV brackets over your TV hole pattern - making sure the brackets are vertically centered and level. Install using the screw /washer /spacer combination you selected for your TV. 1.4 Attach Vertical TV Bracket to Horizontal Brackets and Tighten All Screws CAUTION: Avoid potential personal injuries and property damage! DO...
Page 7 1.5 Attach Padlock Assembly (optional) IMPORTANT: Install Padlock Assembly higher to hang your TV lower (see example ), or install lower to hang your TV higher (see example TV LOWER ON ARM TV HIGHER ON ARM...
Page 8: Wood Stud Installation
STEP 2A Attach Wall Plate Wood Stud Installation CAUTION: Avoid potential personal injury or property damage! ● Drywall covering the wall must not exceed 5/8 in. (16 mm) ● Minimum wood stud size: nominal 2 x 4 in. (51 x 102 mm) actual 1½ x 3½ in. (38 x 89 mm) ●...
Page 9 STEP 2B Attach Wall Plate Solid Concrete or Concrete Block Installation CAUTION: Avoid potential personal injury or property damage! Concrete Anchor Kit CMK1 is not included Contact Customer Service at +1-800-359-5520 ● Mount arm assembly directly onto concrete surface (no wall covering) (EMEA: +31 (0) 495 580 852;...
Page 10 STEP 3 Attach TV to Arm Assembly HEAVY! You may need assistance with this step. Height Adjust Selection IMPORTANT: For the best fit, select the height slot that corresponds with where the Padlock Assembly was installed. See example Example...
Page 11: Manage Cables
STEP 3 Attach TV to Arm Assembly Height Adjust Use two people to hang the TV, to visually ensure TV bracket is hung onto arm assembly at your desired height slot. To adjust the leveling of your TV, loosen the roll screw , level your TV, then tighten the roll screw CAUTION: Avoid potential personal injury or property damage! Locking screw...
Page 12 Secure TV with Padlock Assembly Retract Arm Assembly with TV attached. Secure the Padlock Assembly with a padlock to keep TV and mount in place. Packlock should have a minimum shackle of 2 ½ inches to prevent interference with wall plate. TV Adjustments TILT ADJUSTMENT Your TV should adjust easily when moved, then stay in place.
Page 13 LEVEL ADJUSTMENT 2. Level your TV. 3. Retighten screw using 1. Loosen screw hex key using hex key CAUTION: Avoid potential personal injury or property damage! Locking screw must be installed to secure the TV to the arm assembly HEIGHT HEAVY! You may need assistance with this step.
Page 14: Antes De Comenzar
INSTRUCCIONES IMPORTANTES DE SEGURIDAD: ESPAÑOL GUARDE ESTAS INSTRUCCIONES Y LEA TODO EL MANUAL ANTES DE UTILIZAR ESTE PRODUCTO. Antes de empezar, asegúrese de que este es el soporte adecuado para usted. ¿Su televisor pesa No — ¡Perfecto! (accesorios incluidos) 54,4 kg Sí...
Page 15 PASO 2A Cómo fijar la placa a la pared Colocación sobre montantes de madera PÁGINA 8 PRECAUCIÓN: Evite posibles lesiones personales o daños materiales. • • Los paneles de yeso que cubren la pared no deben superar los 1,5 cm (5/8 pulg.) Tamaño mínimo de los montantes de madera: nominal 5,1 x 10,2 cm (2 x 4 pulg.), real 3,8 x 8,9 •...
Page 16: Avant De Commencer
INFORMATIONS IMPORTANTES CONCERNANT LA SÉCURITÉ FRANÇAIS – CONSERVEZ CES INSTRUCTIONS – VEUILLEZ LIRE ATTENTIVEMENT LE MANUEL AVANT D'UTILISER CE PRODUIT Avant de commencer, assurons-nous que ce support vous convient parfaitement ! Non — Parfait ! Votre téléviseur Oui — Ce support n'est PAS compatible. Visitez le site MountFinder.Sanus.com ou appelez le 54,4 kg (accessoires compris) [US]: +1 (800)-359-5520 [EMEA]: +31 (0) 495 580 852 [RU]:+44 (0) 800 056 2853pour trouver un support...
Page 17 ÉTAPE 2A Fixation de la plaque murale au mur Installation sur des montants en bois PAGE 8 • • ATTENTION : Évitez les risques de blessures corporelles ou de dommages matériels ! L'épaisseur du revêtement de cloison sèche ne doit pas excéder 1,5 cm (5/8 po). Taille minimum des •...
Page 18 WICHTIGE SICHERHEITSHINWEISE DEUTSCH – BEWAHREN SIE DIESE HINWEISE SORGFÄLTIG AUF – LESEN SIE VOR DEM GEBRAUCH DES PRODUKTS BITTE DAS GESAMTE HANDBUCH Stellen Sie vor Montagebeginn sicher, dass diese Halterung für Sie geeignet ist! Wiegt Ihr Fernseher Nein – Perfekt! Ja –...
Page 19 Montage an Holzbalken SCHRITT 2A Anbringen der Wandplatte an der Wand SEITE 8 VORSICHT: Vermeiden Sie Verletzungen und Sachschäden! • • Die Gipsschicht der Wand darf 1,5 cm (5/8") nicht überschreiten. Mindestmaße der Holzbalken: Nenngröße 5,1 x 10,2 cm (2 x 4"), tatsächlich 3,8 x 8,9 cm (1½ x 3½"). •...
Page 20: Voordat U Begint
BELANGRIJKE VEILIGHEIDSINSTRUCTIES NEDERLANDS – BEWAAR DEZE INSTRUCTIES – LEES DE VOLLEDIGE HANDLEIDING VOORAFGAAND AAN HET GEBRUIK Controleer voor u begint of deze wandbevestiging ook voor u geschikt is! Weegt uw tv Nee: Prima! (inclusief accessoires) Ja: Deze wandbevestiging is NIET geschikt. Raadpleeg MountFinder.Sanus.com of bel 54,4 kg MEER dan [US]: +1 (800)-359-5520 [EMEA]: +31 (0) 495 580 852 [VK]:+44 (0) 800 056 2853...
Page 21 Installatie met houten dragers STAP 2A Wandplaat aan de wand bevestigen PAGINA 8 LET OP: Voorkom lichamelijk letsel of materiële schade! • • Gipsplaten die de muur bedekken, mogen niet dikker zijn dan 1,5 cm (5/8 in.). Minimale grootte houten drager: nominaal 5,1 x 10,2 cm (2 x 4 in.), werkelijk 3,8 x 8,9 cm (1½ x 3½ in.). •...
Page 22: Innan Du Börjar
VIKTIGA SÄKERHETSANVISNINGAR SVENSKA – SPARA DESSA ANVISNINGAR – LÄS HELA BRUKSANVISNINGEN INNAN DU ANVÄNDER DENNA PRODUKT Innan du börjar bör du se till att det här monteringsfästet är perfekt för dig! Nej – Perfekt! Väger TV:n (inklusive Ja – Det här monteringsfästet är INTE kompatibelt. Gå in på MountFinder.Sanus.com eller ring tillbehör) 54,4 kg MER än 54,4 kg...
Page 23 STEG 2A Montera väggplatta på vägg Installation på träregel SIDAN 8 FÖRSIKTIGHET: Undvik eventuella personskador och materiella skador! • • Gipsskiva som täcker väggen får inte överstiga 1,5 cm (5/8 tum). Minsta storlek på träregel: nominell 5,1 x 10,2 cm (2 x 4 tum) effektiv 3,8 x 8,9 cm (1½ x 3½ tum). •...
Page 24: Перед Началом Работы
ВАЖНЫЕ ИНСТРУКЦИИ ПО ТЕХНИКЕ БЕЗОПАСНОСТИ РУССКИЙ – СОХРАНИТЕ ЭТИ ИНСТРУКЦИИ – ПЕРЕД ЭКСПЛУАТАЦИЕЙ ИЗДЕЛИЯ ПОЛНОСТЬЮ ПРОЧТИТЕ ДАННОЕ РУКОВОДСТВО Перед началом установки необходимо убедиться, что это крепление подходит для вашего телевизора! Ваш телевизор Нет — Прекрасно! (включая 54,4 кг принадлежности) Да — Это крепление НЕ подходит. Посетите веб-сайт MountFinder.Sanus.com или позвоните по телефону [US]: +1 (800)-359- весит...
Page 25 ШАГ 2A Присоединение настенной пластины к стене Установка на деревянные стойки СТР. 8 ВНИМАНИЕ! Соблюдайте осторожность во избежание получения травм или повреждения имущества! • • Толщина гипсокартона, покрывающего стену, не должна превышать 1,5 см (5/8 дюйма). Минимальный размер деревянной стойки: общий 5,1 х 10,2 см (2 х 4 дюйма); номинальный 3,8 х 8,9 см (1 ½ x 3 ½ дюйма). •...
Page 26 中文重要安全说明 – 保存这些说明 – 使用本产品之前，请阅读完本说明书在开始安装之前，我们首先来确认此支架是否适合您！您的电视机否 — 适合！ 54.4 kg （包括配件）此支架不兼容。访问 MountFinder.Sanus.com 或致电 [US]: +1 (800)-359-5520 [EMEA]: +31 (0) 495 — 是的重量是否超过（120 磅） 580 852 [イギリス]:+44 (0) 800 056 2853 查找兼容的支架。 54.4 kg（120 磅）？有木墙柱的...
Page 27 步骤 2A 木墙柱安装将壁板安装到墙壁上第 8 页 • • 注意：墙上覆盖的干式墙不能超过 1.5 cm (5/8 in.)。最小木墙柱尺寸：标称 5.1 x 10.2 cm (2 x 4 in.) 实际 3.8 x 8.9 cm (1½ x 3½ in.)。避免潜在人身伤害或财产损毁！ • • 扣件之间的最小水平间隔：40.6 cm (16 in.) 。确保安装在墙柱中间...
Page 28 安全のための重要な説明日本語 – この説明書を保管しておいてください – 本製品を使用する前に、説明書全体をよくお読みください作業を始める前に、このマウントがお使いのテレビに適しているかどうかを確認します。設置するテレビいいえ — 最適です！（アクの重量セサリを含む）はい — このマウントは、適合しません。 MountFinder.Sanus.comをご覧になるか、 54.4 kg が、 54.4 kg (120 ポン [US]: +1 (800)-359-5520 [EMEA]: +31 (0) 495 580 852 [英国]:+44 (0) 800 056 2853で適合するマウント（120 ポンド）...
Page 29 木製スタッド壁への取り付け手順2A ウォールプレートを壁に取り付ける 8 ページ • • 注意：負傷したり壁面を傷付けたりしないように注意してください。壁面を覆う石膏ボードは1.5 cm （5/8 インチ）を超えてはいけない。木製スタッドの最小寸法： • • 名目 5.1 x 10.2 cm （2 x 4 インチ）、実寸 3.8 x 8.9 cm （1½ x 3½ インチ）。...
Page 32 Nor does it provide for every possible contingency in connection with the installation or use of this product. The information contained in this document is subject to change without notice or obligation of any kind. Legrand makes no representation of warranty, expressed or implied, regarding the information contained herein.
