CDN SD0202 Operating Instructions

FOR PRECISE & GENERAL WEIGHING
• Precise to 0.01 oz/0.1 g
• Tare function
• Removable stainless steel platform
• Selectable units
• Overload indication
• Low battery indication
• On/off button
• Auto-off after 4 minutes
• Food-safe ABS plastic
• Platform Size:
4.45 x 4.45 D (in)/11.3 x 11.3 (cm), removable
• Resolution: 0.01 oz, 0.1 g
• Product Dimensions:
4.45 W x 0.94 H x 7.13 D (inches)/
11.3 W x 2.4 H x 18.1 D (cm)
• Two AAA carbon zinc batteries (WERCSmart)
included
Note: Clean the scale before each use.
Important: DO NOT IMMERSE IN LIQUID.
Tel 800 338-5594 Fax 800 879-2364 Web CDNmeasurement.com

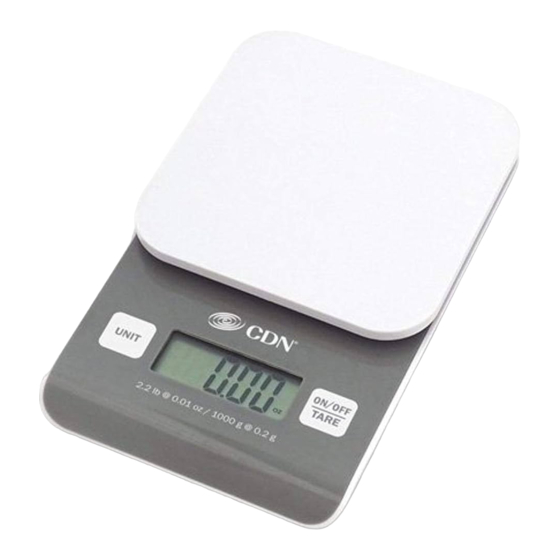

DIGITAL HIGH PRECISION SCALE
2.2 POUNDS/1000 GRAMS by ounces and grams
Note:
In the following instructions, names of the control
buttons are shown in CAPS. Function information that
appears on the display is shown in BOLD CAPS.

BATTERY INSTALLATION

Replace battery when LCD becomes dim.
on the display when battery status is low and needs
to be replaced.
1. Power off the unit before installing the batteries.
2. Remove battery cover on the bottom by pressing
the latch toward the battery cover and lifting up.
3. Install two AAA carbon zinc batteries observing
polarity shown in compartment.
4. Replace the battery cover until it clicks shut.
OPERATING INSTRUCTIONS
Place the scale gently on a hard and flat surface and
make sure it is steady before use to obtain accurate
measurements.
A. On/Off
1. Press the ON/OFF button to turn on. The display
8888
flashes and then returns to zero within
3 seconds.
2. Press and hold the ON/OFF button for
2 seconds to turn off.
B. Auto Off
The scale automatically turns off after 4 minutes of
inactivity.
C. Unit Selection
Press the UNIT button to select the desired unit.
The display switches between
D. Weighing Mode
Place an item on the scale platform. The weight
of the item appears on the display after the item
is stable.
Note: The minimum measurable weight is 0.04 oz/1.0 g.
Model: SD0202
Lo appears
oz and g.
