voltage regulator circuit and therefore the input current level
will decrease slightly as the input voltage in increased and
will increase slightly as the input voltage is reduced. The 12V
units do not have a voltage regulator and therefore their input
current will increase when the input voltage is increased.
LED Beacon Section
The input current to the beacon section will vary according to
the voltage input level. The current levels shown above are
for nominal input voltages of 12V, 24V and 48V DC the units
have a converter circuit and therefore the input current level
will decrease slightly as the input voltage in increased and
will increase slightly as the input voltage is reduced.
8)

Cable Selection

When selecting the cable size consideration must be given to
the input current that each unit draws (see table above), the
number of units on the line and the length of the cable runs.
The cable size selected must have the necessary capacity to
provide the input current to all of the units connected to the
line.
SAFETY WARNING: If the unit is used at high ambient
temperatures, i.e. over +40ºC, then the cable entry
temperature may exceed +70ºC and therefore suitable heat
resisting cables must be used, with a rated service
temperature of at least 110ºC.
9)

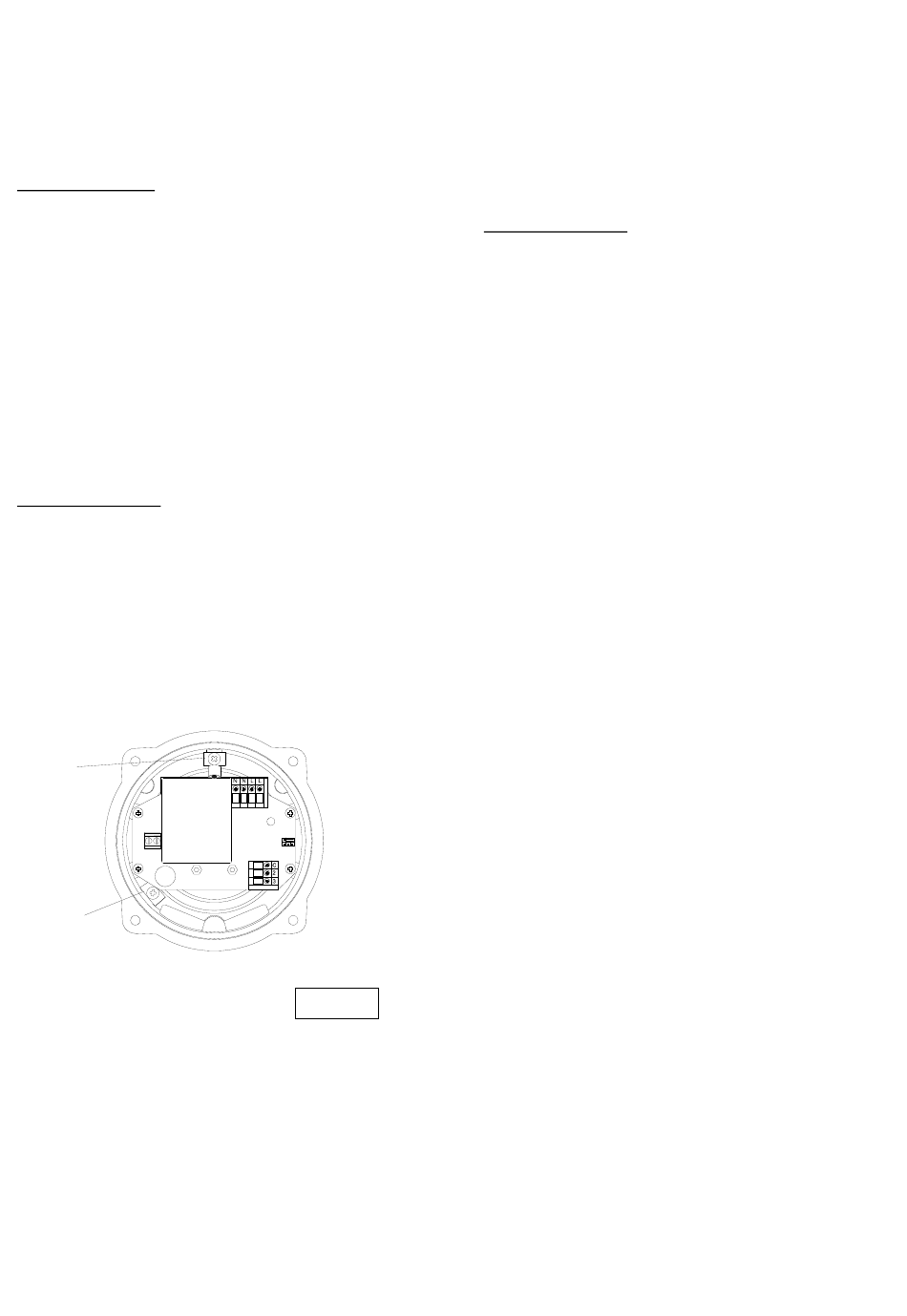

Earthing
Both AC and DC units must be connected to a good quality
earth. The units are provided with internal and external
earthing terminals, which are both, located on the beacon
section of the unit (see figures 2 and 3).
Internal Bonding
Wire Terminal
N L
Internal Earth Terminal
When using the external earth terminal a cable crimp lug
must be used. The cable lug should be located between the
two M5 stainless steel flat washers. The M5 stainless steel
spring washer must be fixed between the outer flat washer
and the M5 stainless steel nut to ensure that the cable lug is
secured against loosening and twisting.
The internal earth bonding wire ensures that a good quality
earth is maintained between the sounder section casting and
the beacon section casting.
_______________________________________________________________________________________________________________________________
European Safety Systems Ltd. Impress House, Mansell Road, Acton, London W3 7QH
Document No. IS 2469-P
2 off M20
Cable Entries
Figure 3
Issue C 23-04-10
10)

Cable Glands

The BExDCS110-L1D unit has dual cable gland entries which
have an M20 x 1.5 entry thread as standard. Only cable
glands approved for Ex 'd' applications can be used, which
must be suitable for the type of cable being used and also
meet the requirements of the Ex 'd' flameproof installation
standard EN60079-14:2008 / IEC60079-14.
SAFETY WARNING: If the unit is used at high ambient
temperatures, i.e. over +40ºC, then the cable entry
temperature may exceed +70ºC and therefore suitable heat
resisting cable glands must be used, with a rated service
temperature of at least 110ºC.
When only one cable entry is used the other one must be
closed with an Ex 'd' flameproof blanking plug, which must be
suitably approved for the installation requirements.
For combustible dust applications, the cable entry device and
blanking elements shall be in type of explosion protection
increased safety "e" or flameproof enclosure "d" and shall
have an IP 6X rating according to EN60529:1992.
11)

Cable Connections

The combined sounder LED beacon unit BExDCS110-L1D
has separate printed circuit boards in the sounder and LED
beacon sections. The terminals for the sounder are on the
printed circuit board in the sounder section and the terminals
for the beacon are on the printed circuit board in the beacon
section (see figures 4&5 and 6&7). See section 8 of this
manual for access to the enclosure and the wiring diagrams
at the end of this manual.
The sounder and LED beacon sections can be wired to the
same input supply so that they operate simultaneously or
they can be wired to separate input supplies so they can be
operated independently (see diagrams on page 6 of this
manual). If the sounder and beacon sections are connected
to the same input supply, the incoming cables should be
connected to the input terminals on the LED beacon board
and the two connecting wires, that are supplied with the unit,
should be used to link the supply from the interconnecting
terminals on the beacon board down to the supply terminals
on the sounder board.
SOUNDER SECTION CONECTIONS
On the AC units a two-way terminal block is provided for the
live and neutral mains supply wires and a three way terminal
block is provided for linking the second and third stages, (see
figure 7). On the DC units a four way terminal block is
provided for +ve and –ve supply input and second and third
stage modes of operation, (see figure 6).
A single wire with a cross sectional area of up to 4mm² can
be connected to each terminal way or if an input and output
wire is required two 2.5mm² wires can be connected to each
terminal way. When connecting wires to the terminals great
care should be taken to dress the wire so that when the
beacon section is inserted into the chamber the wires do not
exert excess pressure on the terminal blocks. This is
particularly important when using cables with large cross
sectional areas such as 2.5mm² and above. If the sounder is
wired to the same power supply as the beacon always use
the flexible interconnecting wires provided.
