ZP755BV-4P Addressable Base Sounder with
Visual Indicator Installation Sheet
Description
The ZP755BV-4P is an addressable base sounder with visual
indicator, designed for use in Ziton addressable fire detection
and alarm systems.
Note:
The visual indicator of this product does not comply with
EN 54-23 and must not be used in fire alarm installations
where fire notification beacons are required.
The sounder includes a volume control, an address-setting
switch, programmable tone settings, and a pair of jumpers to
select the operating power — from the addressable loop or an
external supply. The device plugs into a base that is purchased
separately. See Table 1 for a list of model numbers.
Table 1: Models
Model
Description
ZP755BV-4P
Base sounder/Visual indicator, Polar white
ZP755-COV-P
Cover for ZP755B Base sounder
with no detector, Polar white
ZP755-COV-R
Cover for ZP755B Base sounder
with no detector, Red
SPB–2P
Mounting base, Polar white
Installation
To install the device:
1.
Wire the base
2.
Set the operating power
3.
Set the address
4.
Set the operating mode
5.
Set the tone
© 2021 Carrier. All rights reserved.
6.
Set the volume
7.
Mount the sounder onto the base
The details of each step are given below
Wiring the base
Connect the loop wiring for the base as shown in Figure 1.
There is no wiring between the sounder and base.

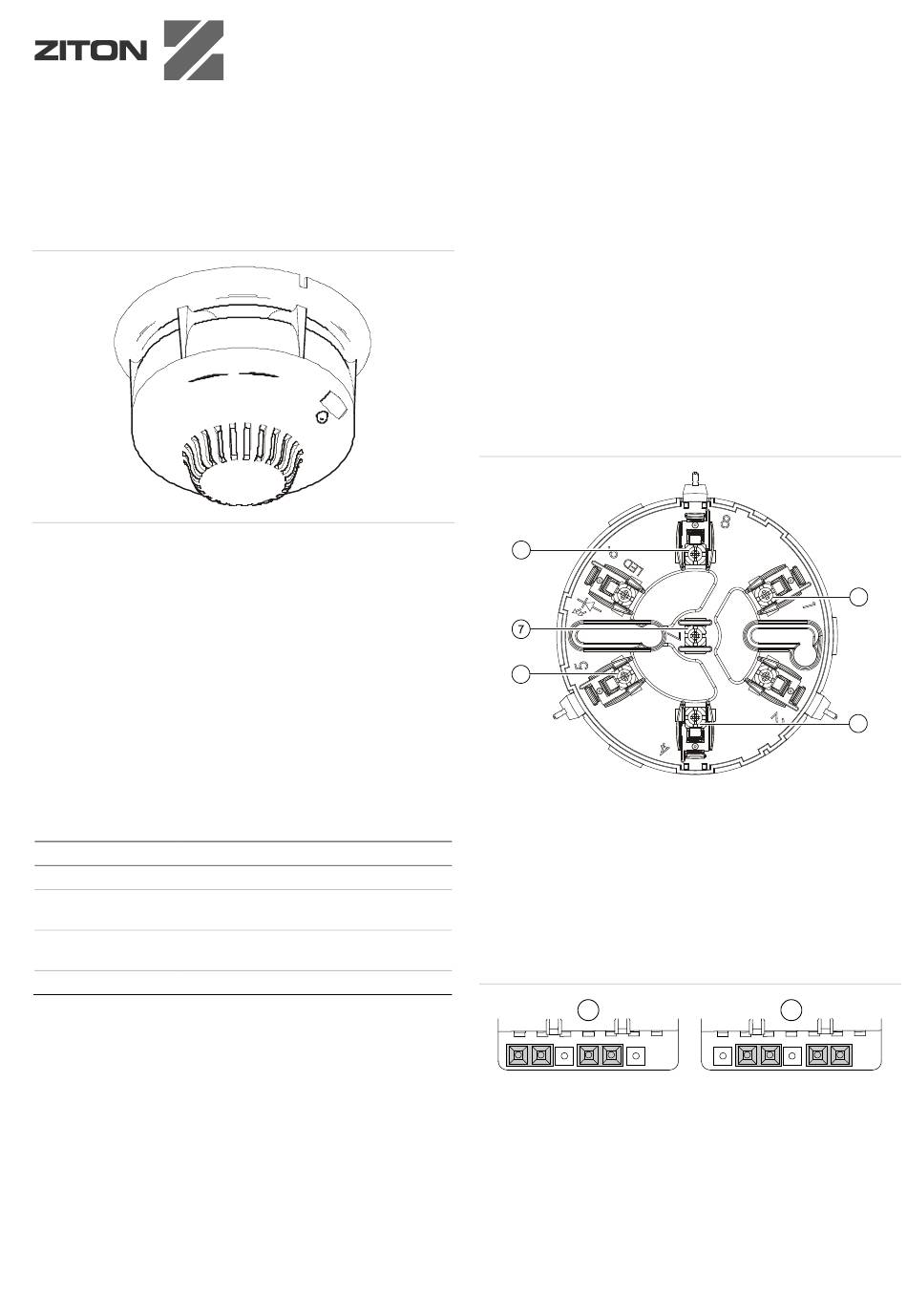

Figure 1: Loop wiring for the base
8
5
1.
Ext. 24 VDC+ IN/OUT
4.
Ext. 24 VDC ground IN/OUT
5.
Loop+ IN/OUT
Setting the operating power
The sounder includes a pair of power selection jumpers, J1
and J2. To select the source of the sounder operating power,
position the jumpers as shown in Figure 2.
Figure 2: Power-selection jumper configuration
1
J1
J2
1.
Loop powered
Note:
When using an external power supply, use only one that
is CE and EN 54-4 compliant to power all the sounders on the
same loop. Ensure connection to number 1 and number 4 in
addition to the loop wiring number 5 and number 8.
1 / 4
7.
Shield
8.
Loop − IN/OUT
2
J1
J2
2.
External 24 VDC
P/N 10-5202-501-ZV01-12 • ISS 05OCT21
1
4
