- Page 1 ZP787-3 Addressable Outdoor Manual Call Point Installation Sheet © 2016 UTC Fire & Security. All rights reserved. 1 / 4 P/N 20-8030-501-2103-05 • ISS 12JUL16 D 1073-1...

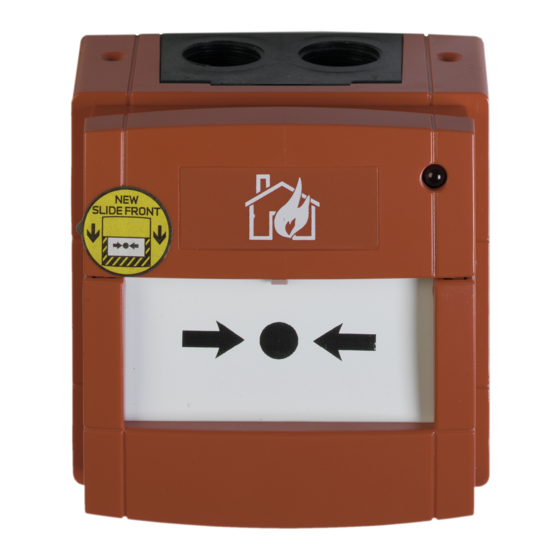

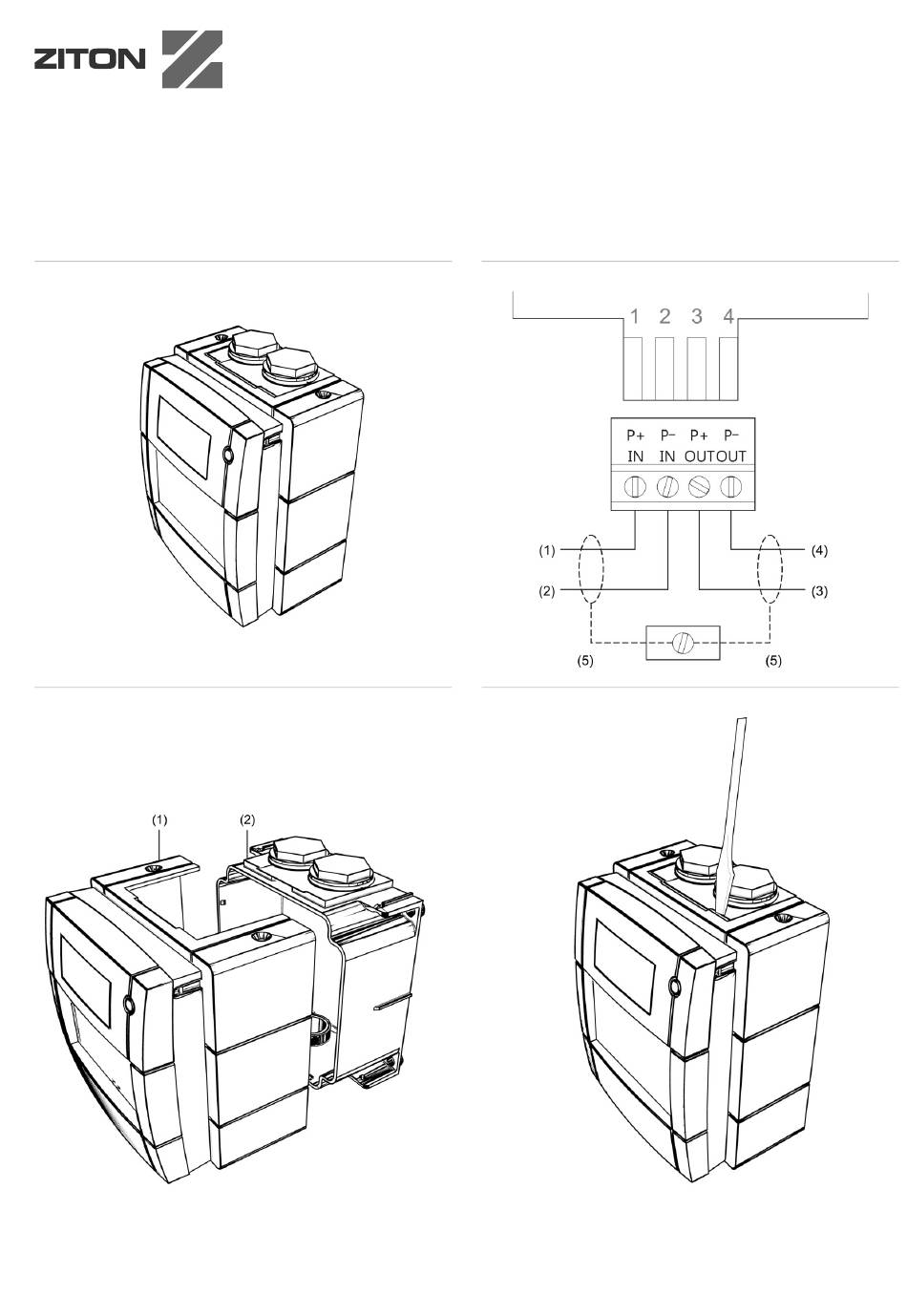

- Page 2 Description Figures The ZP787-3 Addressable Outdoor Manual Call Point (MCP) is Figure 1: Product illustration used to manually initiate a fire alarm. It is designed for outdoor use and features an IP67 enclosure. Figure 2: Wiring diagram (4) Loop − OUT (1) Loop + IN Available models are shown in the table below.
- Page 3 To install the MCP, follow these general steps. Maintenance Set the device address Figure 5, item 1 illustrates how to perform a test and reset for the device. Use the supplied test key to perform routine testing Install the backbox without breaking the glass element.
- Page 4 2012/19/EU (WEEE Directive): Products marked with this symbol cannot be disposed of as unsorted municipal waste in the European Union. For proper recycling, return this product to your local supplier upon the purchase of equivalent new equipment, or dispose of it at designated collection points. For more information see: http://www.recyclethis.info.
