Ziton ZP700 Series Installation Sheet

ZP700 Series Addressable Detector
Installation Sheet
1
3
EN: Installation Sheet

Description

ZP700 Series Addressable Detector models are shown in
Table 1.
Table 1: Models
Number Description
ZP720-3P Addressable Thermal Sensor, Polar White
ZP730-2P Addressable Optical Smoke Sensor, Polar White
ZP730-2B Addressable Optical Smoke Sensor, Black
ZP730-2S30 Addressable Optical Smoke Sensor, Chubb
ZP732-2P Combination Smoke and Heat Detector, Polar White
ZP732-2S30 Combination Smoke and Heat Detector, Chubb
www.acornfiresecurity.com
2
4
Figures

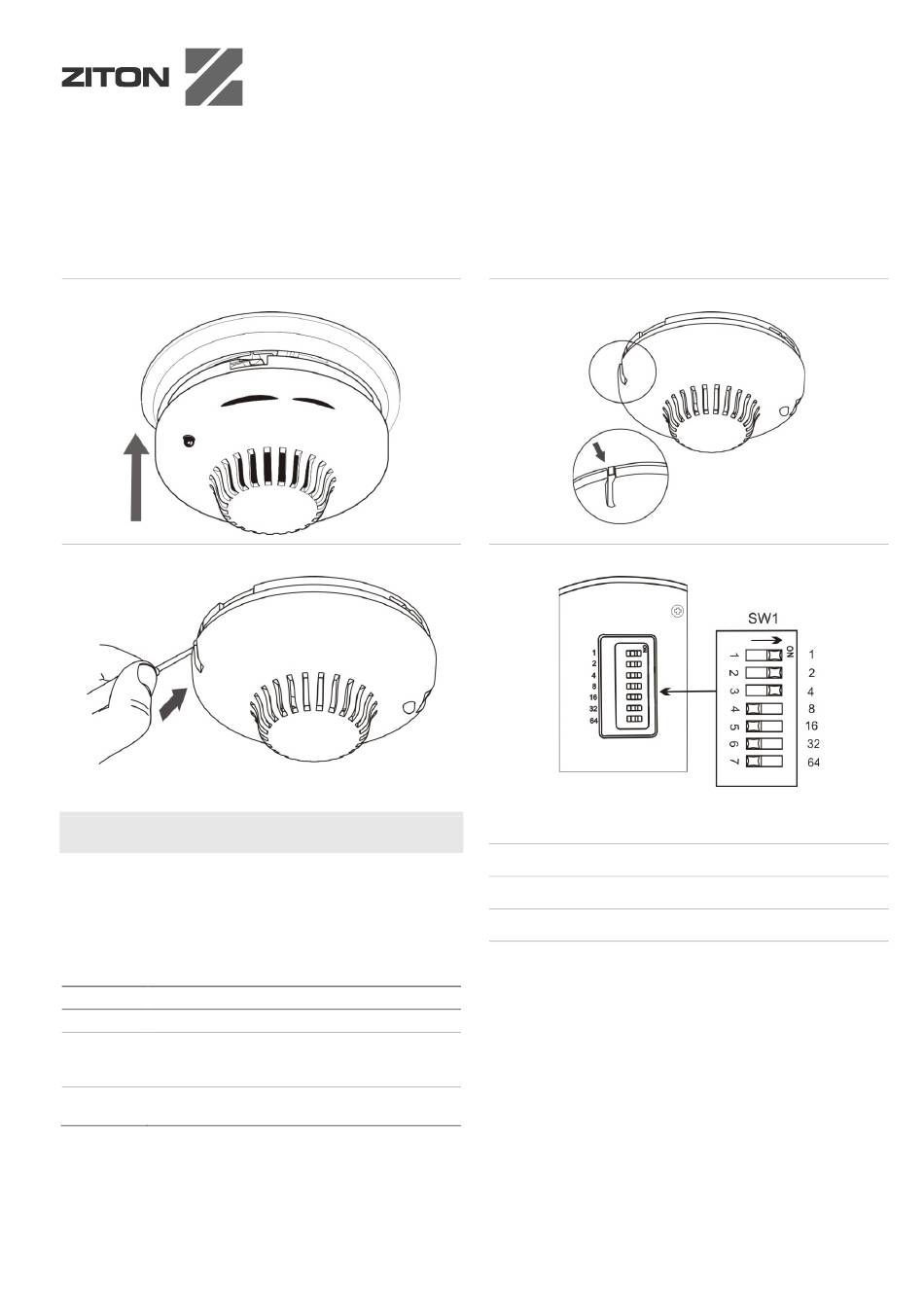

Figure 1: Inserting the detector
Figure 2: Position of the locking tab
Figure 3: Removing a locked detector
Figure 4: Setting the address

Installation

Note:
installation, commissioning, use and maintenance, refer to the
EN 54-14 standard and local regulations.
To install a detector:
Insert the detector head into the mounting base and rotate it
clockwise until it clicks into place (Figure 1).
The detector may be locked into the mounting base if required.
To do this, remove the locking tab before installation shown in
Figure 2.
www.acornfiresecurity.com
For general guidelines on system planning, design,
