MSX-E1701: Incremental counter

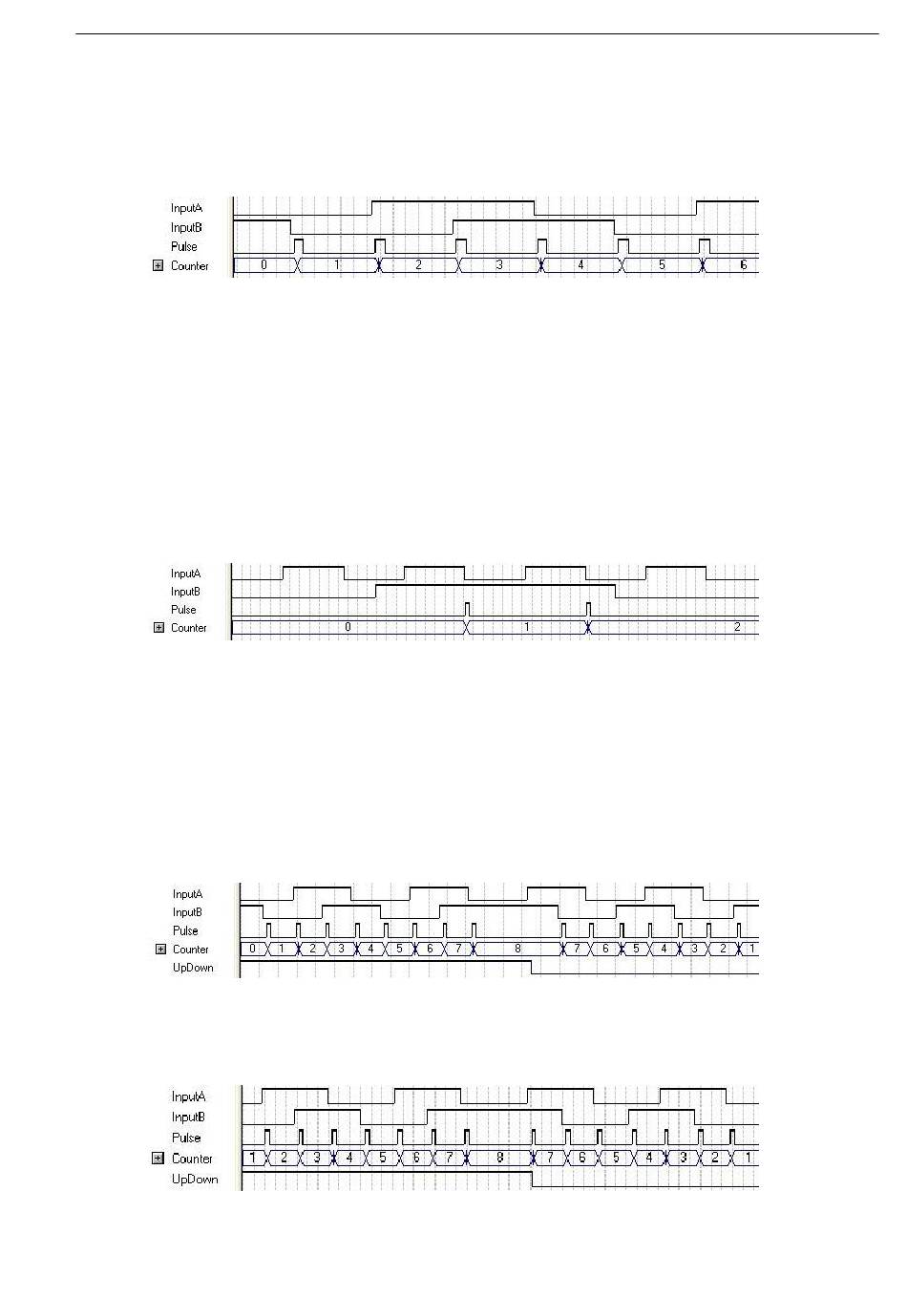

Quadruple mode

In the quadruple mode with each falling and rising edge of track A and track B of
the incremental signal is counted.

Direct mode

In the direct mode with each falling edge of input A is counted, whereas input B
serves as gate input. It is counted only as long as input B is on the high level.
Furthermore, in the direct mode the counting direction can be programmed via
software.
Example: Direct mode, increment counter

8.3.2 Hysteresis function

The hysteresis function can be used in the single, double and quadruple mode. At
hysteresis „ON" the first counting pulse after a change in rotation is not evaluated.

Fig. 8-3: Example: Quadruple mode, hysteresis ON

Fig. 8-4: Example: Quadruple mode, hysteresis OFF

Functions of the module
41
