MSX-E1701: Incremental counter
5.2.2 Connecting Ethernet ports
♦ Plug the Ethernet cable in Ethernet port 0
5.2.3 Connecting trigger and synchro signals
♦ Plug the cable into the plug Trig/Sync In

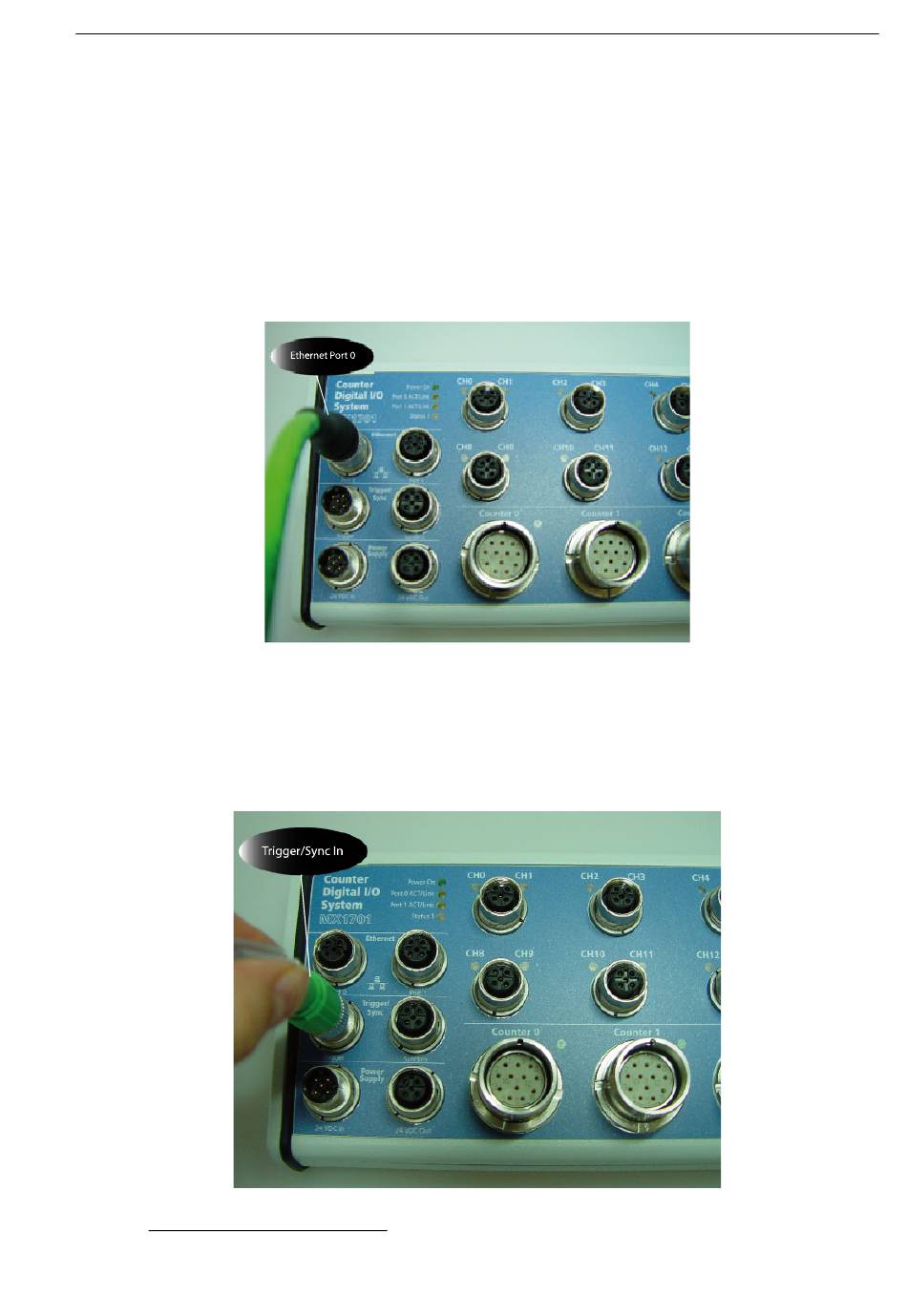

Fig. 5-9: Connecting trigger and synchro signals
4
If you want to connect several Ethernet I/O modules, please do observe chapter 5.3.
Fig. 5-8: Connecting Ethernet ports
4
1
Use
19
