Use
5.2.4 Connecting to the current supply
♦ Plug the cable into the input (24 VDC In)
5.3
Connecting several Ethernet I/O modules
You can connect several Ethernet I/O modules. Hereto please observe the
following steps:
♦ Connect the first Ethernet I/O module as described above
♦ Connect the components as shown in the figure (see next page)
5
If you want to connect several Ethernet I/O modules please do observe chapter 5.3.
20

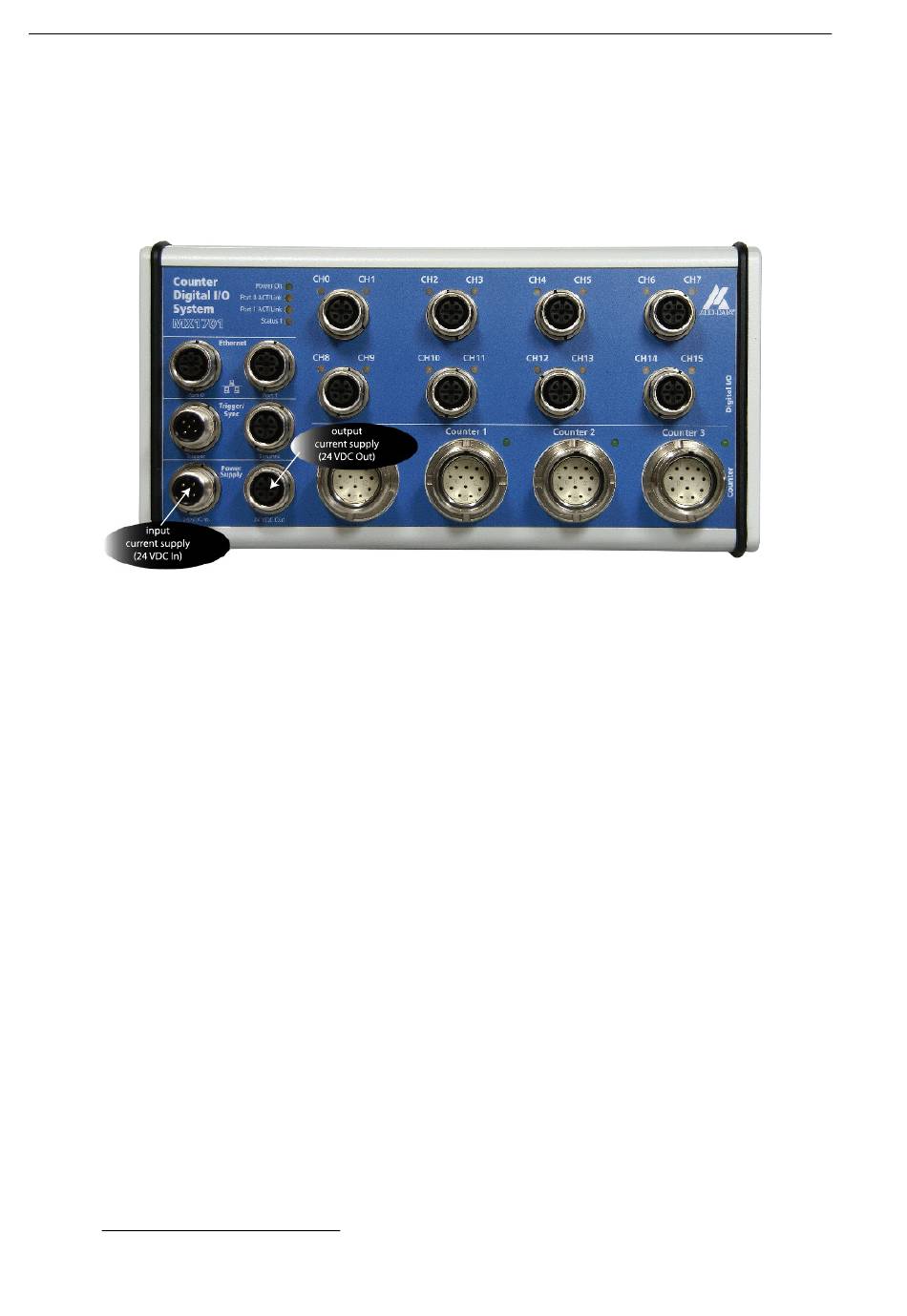

Fig. 5-10: Connecting the current supply
MSX-E1701: Incremental counter
5
