CONTROL AND MAINTENANCE MANUAL

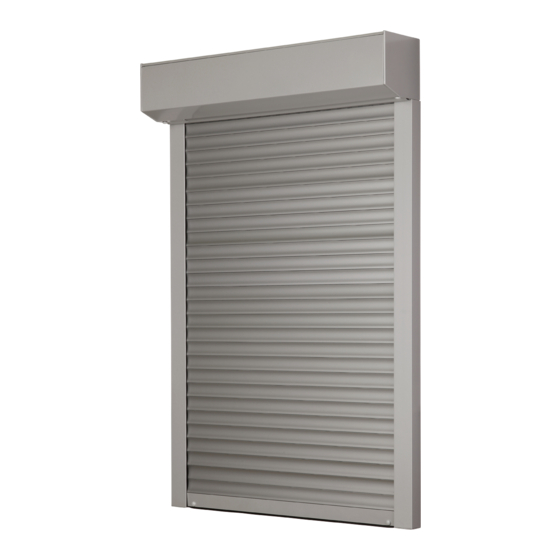

OUTSIDE ROLLER-BLINDS – VIVERA, HELUZ
1. CONTROL
Handle
Strap/Cord
Engine
DESCRIPTION OF THE CONTROL USING THE LEVER:
Grasp the lever, hold the lower part for better control and tilt the whole lever away from the wall. The blind
is lifted by turning the lever in an upward direction and downward in the opposite direction. After the blind
reaches the lower position, the lower bar is supported by the windowsill. After manipulation, put the level
into the original position and fix the lever into the holder.
DESCRIPTION OF CONTROL USING THE STRAP/CORD:
The blind is lifted by drawing the strap/cord in a downward direction to the roller. The strap/cord is
automatically wound into the winding unit by the spring. The blind is lowered by drawing the strap/cord
perpendicularly from the winding unit in the inward direction. The light holes are opened by slightly drawing
the strap/cord into the winding unit.
DESCRIPTION OF THE CONTROL USING THE ELECTRIC ENGINE:
Blinds can be lowered and rolled using the electric drive with the remote-control unit or the switch. In the
case of an electric drive, it is possible to use automatic control, such as the wind and solar sensor, depending
on the weather. In this case, an engine with a remote control is required. To set the electric control of the
blinds, follow the manual for this device that was delivered by the supplier.
Validity of the manual: 1. 4. 2023
1
Advertisement
Table of Contents
Related Manuals for Isotra VIVERA
Summary of Contents for Isotra VIVERA
- Page 1 CONTROL AND MAINTENANCE MANUAL OUTSIDE ROLLER-BLINDS – VIVERA, HELUZ 1. CONTROL Handle Strap/Cord Engine DESCRIPTION OF THE CONTROL USING THE LEVER: Grasp the lever, hold the lower part for better control and tilt the whole lever away from the wall. The blind is lifted by turning the lever in an upward direction and downward in the opposite direction.
- Page 2 CONTROL AND MAINTENANCE MANUAL Control using a push-button switch without the OFF position After pressing and holding the respective button (UP/DOWN) or rotating the switch (LEFT/RIGHT), the shutter will move in the required direction. The shutter movement will stop after releasing the button/switch.
- Page 3 CONTROL AND MAINTENANCE MANUAL Duration of the motor run The motors used are not intended for long, uninterrupted operation. The integrated thermal protection will deactivate the motor after approx. 4 minutes. The motor will return to the stand-by mode in 10–15 minutes. Incorrect control Do not control the shutter in a manner other than specified in this technical manual.
- Page 4 CONTROL AND MAINTENANCE MANUAL Operating the shutter at high temperatures Sufficient ventilation of the curtain must be ensured if the shutter is used as sun protection. In this case, lighting openings of the shutter must be left open to prevent overheating, otherwise there is a risk of permanent damage, especially in case of plastic slats.
- Page 5 CONTROL AND MAINTENANCE MANUAL 2. MAINTENANCE During common cleaning regularly wipe the surface with a cloth or a wet soft textile or sponge. Only use soap solutions without chemical ingredients at a temperature of up to 30şC. Do not use aggressive detergents, such as organic solvents, cleaning sand, cleaning pastes, developing steams and strong alkali cleaning detergents We recommend regularly inspecting and maintaining the blinds.
- Page 6 CONTROL AND MAINTENANCE MANUAL REGULAR INSPECTION OF THE CONDITION: • permanent functions of blinds (lifting and lowering), • condition and rate of dirtying of blinds, • wearing of control equipment, • condition of guiding, guiding bars and unloader, • correct function of end switches, •...
