SMART-AVI SKM-04-PLUS Quick Start Manual

TECHNICAL SPECIFICATION
USB
Signal Type USB 2.0, 1.1, and 1.0 w/ internal hub
CPU Ports (4) USB Type B (female)
User Control (2) USB Type-A for KM connection only;
Interface (2) USB Type-A for USB 2.0 transparent
CONTROL
Front Panel Buttons
RS-232 Via control @ 115200 bps
Hot Keys Via keyboard
PASS Technology and Mouse Gesture
Mouse
Switching
OTHER
Power Adapter External 100-240 VAC/5VDC2A @ 24W
Dimensions 12.57" W x 1.76" H x 6.69" D
Weight 4.2 lbs
Approvals UL, CE, ROHS Compliant
Operating Temp. +32 to +104°F (0 to +40°C)
Storage Temp. -4 to 140°F (-20 to +60°C)
Humidity 5 to 90% (No Condensation)
Emulation Keyboard and Mouse
WHAT'S IN THE BOX
PART NO. Q-TY DESCRIPTION
4-Port KM Switch with USB
SKM-04-PLUS 1
2.0 Sharing
PS5VDC2A 1 5VDC 2A Power Supply
Quick Start Guide 1
NOTICE
The information contained in this document is
subject to change without notice. SmartAVI makes
no warranty of any kind with regard to this material,
including but not limited to, implied warranties of
merchantability and fitness for particular purpose.
SmartAVI will not be liable for errors contained
herein or for incidental or consequential damages in
connection with the furnishing, performance or use of
this material.
No part of this document may be photocopied,
reproduced, or translated into another language
without prior written consent from SmartAVI
Technologies, Inc.
888.994.7427, 702.800.0005
2455 W Cheyenne Ave, Suite 112
North Las Vegas, NV 89032
SmartAVI.com

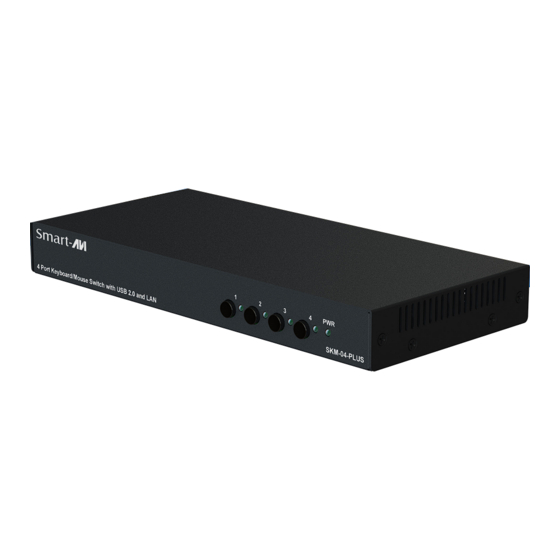

SKM-04-PLUS
4-Port KM Switch
with USB 2.0 with LAN
MANAGE KEYBOARD AND
MOUSE OPERATIONS
ON FOUR COMPUTERS
FROM A SINGLE WORKSTATION
WITH SUPPORT FOR USB 2.0
SHARING
Quick Start Guide
