SMART-AVI SKM-08-S Quick Start Manual

TECHNICAL SPECIFICATION

USB
Signal Type USB 2.0, 1.1 and 1.0 w/ internal hub
CPU Ports (8) USB Type B (female)
(2) USB Type-A for KM
User Control connection only
Interface (2) USB Type-A for USB 2.0
transparent
CONTROL
Front Panel Buttons
RS-232 Via control @ 9600 bps
Hot Keys Via keyboard
PASS Technology and Mouse
Mouse
Gesture Switching
OPTICAL
Power External 5VDC4A
Dimensions 12.6" W x 1.75" H x 6.6" D
Weight 10 lbs
Approvals UL, CE, ROHS Compliant
Operating Temp. 32-131°F (0-55 °C)
Storage Temp. -4-185 °F (-20-85 °C)
Humidity Up to 95%
Emulation Keyboard and mouse
WHAT'S IN THE BOX
PART NO. Q-TY DESCRIPTION
8-Port KM Switch with USB
SKM-08-S 1
2.0 Sharing
PS5VD4A 1 PS5VD4A Power Supply
Quick Start Guide 1

NOTICE

The information contained in this document is
subject to change without notice. SmartAVI makes
no warranty of any kind with regard to this material,
including but not limited to, implied warranties of
merchantability and fitness for particular purpose.
SmartAVI will not be liable for errors contained
herein or for incidental or consequential damages in
connection with the furnishing, performance or use of
this material.
No part of this document may be photocopied,
reproduced, or translated into another language
without prior written consent from SmartAVI
Technologies, Inc.
800.AVI.2131, 702.800.0005
2455 W Cheyenne Ave, Suite 112
North Las Vegas, NV 89032
SmartAVI.com

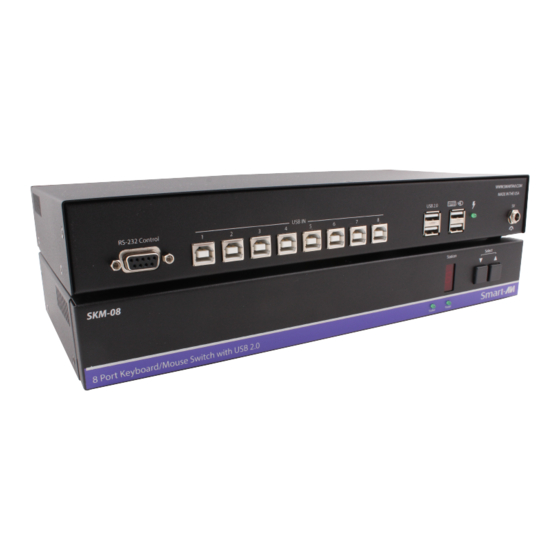

SKM-08
8-Port KM Switch
with USB 2.0 Sharing
MANAGE KM OPERATIONS
ON EIGHT COMPUTERS
FROM A SINGLE WORKSTATION
WITH SUPPORT
FOR USB 2.0 SHARING
Quick Start Guide
