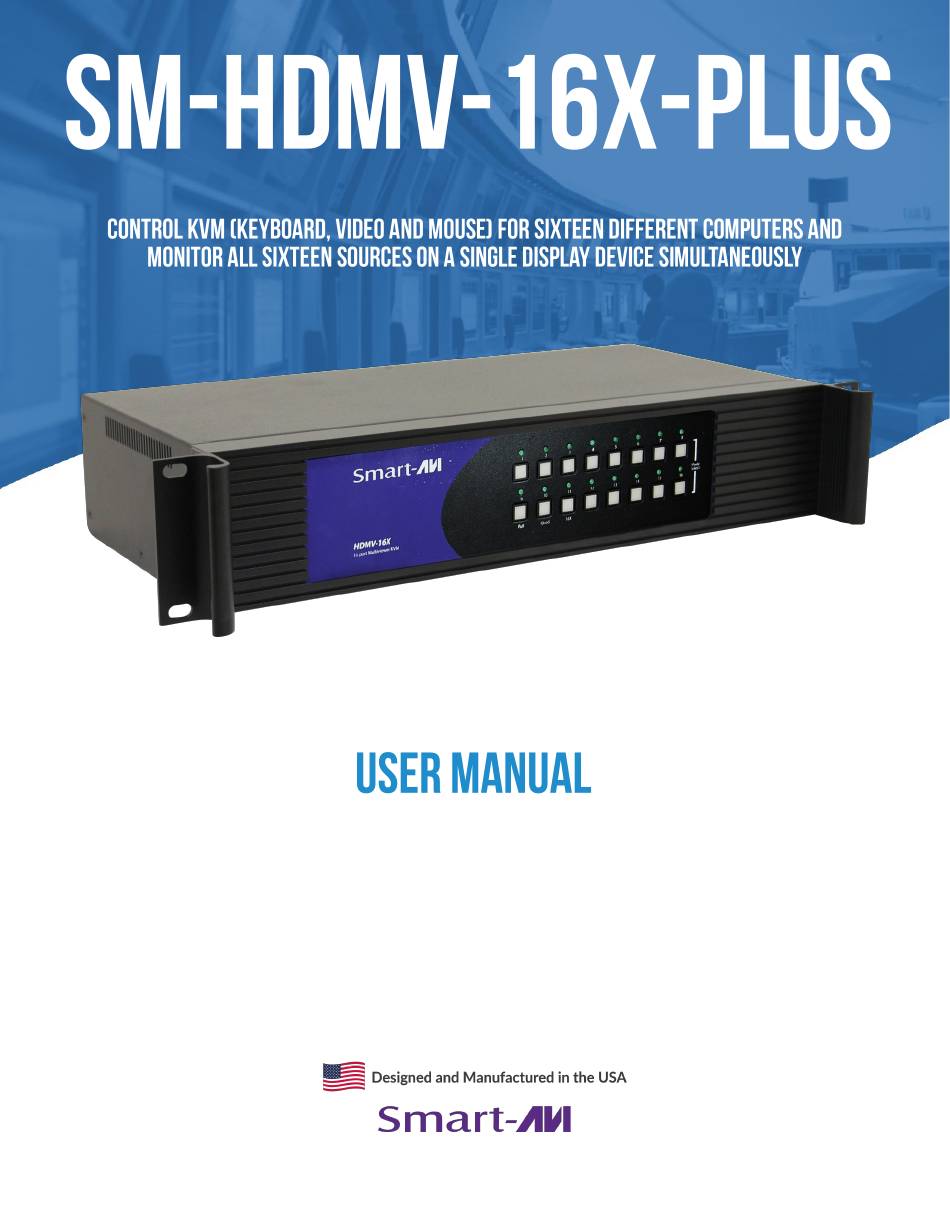

- Page 1 1-800-284-2131 www.smartavi.com 16-Port HDMI Multiviewer...
- Page 2 WHAT’S IN THE BOX?_____________________________________________________________________ 3 INTRODUCTION__________________________________________________________________________ 4 FEATURES________________________________________________________________________________ 4 TECHNICAL SPECIFICATIONS_____________________________________________________________ 5 HARDWARE INSTALLATION_______________________________________________________________ 6 USING THE FRONT PANEL BUTTONS______________________________________________________ 7 KVM OPERATION_________________________________________________________________________ 8 KVM CONTROL (Hotkeys)_________________________________________________________________ 8 RS-232 CONTROL_________________________________________________________________________ 9 LIMITED WARRANTY STATEMENT________________________________________________________ 10 16-Port HDMI Multiviewer...
- Page 3 SM-HDMV-16X-Plus 16-Port KVM HD Multiviewer PS12VDC3A 12V DC 3A power adapter with center-pin positive polarity User Manual Figure 3-1 16-Port HDMI Multiviewer...

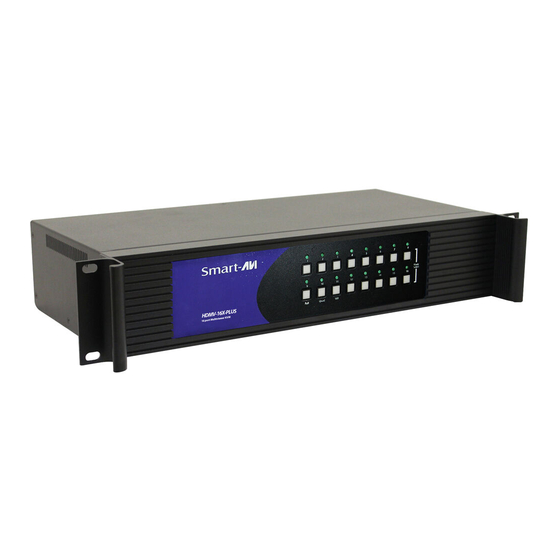

- Page 4 The HDMV Multi-viewer Switch allows you to view up to sixteen different high definition video sources simultaneously on one display device. Connections to video sources are managed via HDMI connectors. Advanced viewing options include 16x mode, quad-mode & full-screen mode. Use this device to simplify management of multiple sources by controlling them all through a single display using the front panel, RS-232 or Hotkeys.
- Page 5 VIDEO Resolution Up to 1080P (1920x1080@60Hz) HDTV Resolutions 80i,480p,720i,720p,1080i,1080p PC Resolution 800 x 600 up to 1920 x 1200 HDMI Version 1.4 Backward compatible HDCP Complient 1.0/2.0 DVI Compliance Single-link DVI-D 2.0 with adapter Input Interface (16) HDMI Type A 19-pin Female Output Interface (1) HDMI Type A 19-pin Female Input Video Signal...
- Page 6 The power connection and switch are located at the back of the unit as well as the RS-232 connection and all HDMI and USB input and output. Connect all peripheral devices first and turn them on before powering on the HDMV16X-Plus. The control software uses HDMI input port numbers that differ from those marked on the back panel.
- Page 7 To switch Input Channels, press the desired button on the front panel. The green LED above that button will light up to indicate that the specified channel now has control of the keyboard and mouse. To access the control menu to change the View Mode, press and hold buttons 8 and 16 on the front panel (labeled “Mode Select”) for 2 seconds, this will cause the 3 display buttons to blink.
-
Page 8: Command Description
To enable KVM functionality connect a USB keyboard to the USB slot on the back panel indicated by the keyboard symbol and connect a USB mouse to the USB slot on the back panel indicated by the mouse symbol. See Figure 6-2 on page 6 for these locations. Connect all computers or peripherals with a USB keyboard or mouse to the HDMV16X-Plus USB inputs shown on page 6, figure 6-2 with a USB type A to type B cable. - Page 9 Next connect to the device using PuTTY, HyperTerminal or a similar application. This software or download links can be found on the Smart-AVI website. Use the following settings for the connection: 9600 baud rate, no parity bits, 8 data bits, one stop bit, and no flow control.
- Page 10 A. Extent of limited warranty SmartAVI, Inc. warrants to the end-user customers that the SmartAVI product specified above will be free from defects in materials and workmanship for the duration of 1 year, which duration begins on the date of purchase by the customer. Customer is responsible for maintaining proof of date of purchase.
- Page 11 The information contained in this document is subject to change without notice. SmartAVI makes no warranty of any kind with regard to this material, including but not limited to, implied warranties of merchantability and fitness for particular purpose. SmartAVI will not be liable for errors contained herein or for incidental or consequential damages in connection with the furnishing, performance or use of this material.
