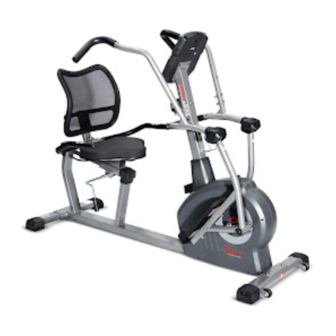

Sunny Health & Fitness ELITE INTERACTIVE SF-RBE420049 User Manual

Exercise recumbent bike
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
ELITE INTERACTIVE SERIES
EXERCISE RECUMBENT BIKE
SF-RBE420049
USER MANUAL
IMPORTANT! Please retain owner's manual for maintenance and adjustment instructions. Your
satisfaction is very important to us, PLEASE DO NOT RETURN UNTIL YOU HAVE CONTACTED
US: support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907-8669).

Advertisement

Table of Contents
loading

Related Manuals for Sunny Health & Fitness ELITE INTERACTIVE SF-RBE420049

Summary of Contents for Sunny Health & Fitness ELITE INTERACTIVE SF-RBE420049

  • Page 1 ELITE INTERACTIVE SERIES EXERCISE RECUMBENT BIKE SF-RBE420049 USER MANUAL IMPORTANT! Please retain owner’s manual for maintenance and adjustment instructions. Your satisfaction is very important to us, PLEASE DO NOT RETURN UNTIL YOU HAVE CONTACTED US: support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907-8669).

  • Page 2: Important Safety Information

    IMPORTANT SAFETY INFORMATION We thank you for choosing our product. To ensure your safety and health, please use this equipment correctly. It is important to read this entire manual before assembling and using the equipment. Safe and effective use can only be achieved if the equipment is assembled, maintained, and used properly.

  • Page 3: Pre-Assembly Check List

    PRE-ASSEMBLY CHECK LIST Before you start to assemble, please make sure all parts are included Description Spec. Qty. Description Spec. Qty. Main Frame Right Handrail Arm Left/Right Foot Bar Front Stabilizer 64/65 1SETS Cover Rear Stabilizer Left Foot Bar Front Post Right Foot Bar Rear Handlebar Left Pedal...

  • Page 4: Hardware Package

    HARDWARE PACKAGE Ordering Replacement Parts (U.S. and Canadian Customers only) Please provide the following information in order for us to accurately identify the part(s) needed:  The model number (found on cover of manual)  The product name (found on cover of manual) ...
  • Page 5 ASSEMBLY INSTRUCTIONS We value your experience using Sunny Health and Fitness products. For assistance with parts or troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907-8669). STEP 1: Unscrew 4 Screws (No. 11) from Main Frame (No. 1) with Allen Wrench (No. 142).
  • Page 6 We value your experience using Sunny Health and Fitness products. For assistance with parts or troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907-8669). STEP 3: Attach the Brake Handle (No. 30) to the Connecting Axle (No. 26) with 2 Screws (No.
  • Page 7 We value your experience using Sunny Health and Fitness products. For assistance with parts or troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907-8669). STEP 4: Remove 6 Screws (No. 11), 4 Washers (No. 10), 2 Big Arc Washers (No. 56) and 6 Spring Washers (No.
  • Page 8 We value your experience using Sunny Health and Fitness products. For assistance with parts or troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907-8669). STEP 5: Attach Bottle Holder (No. 95) to the Front Post (No. 4) with 2 Screws (No. 94).
  • Page 9 We value your experience using Sunny Health and Fitness products. For assistance with parts or troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907-8669). STEP 6: Attach the Left & Right Handrail Arms (No. 61 & No. 62) onto the Bearing (No. 69) that located on the Left/ Right Foot Bar (No.
  • Page 10 We value your experience using Sunny Health and Fitness products. For assistance with parts or troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907-8669). STEP 7: Attach the Left Pedal (No. 74) to the Left Foot Bar (No. 72) with 2 Bolts (No. 76), 2 Washers (No.
  • Page 11 We value your experience using Sunny Health and Fitness products. For assistance with parts or troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907-8669). STEP 9: Remove 2 Screws (No. 20), 2 Washers (No. 10) and 1 Handlebar Cover (No. 5) from the Seat Support Bracket (No.
  • Page 12 We value your experience using Sunny Health and Fitness products. For assistance with parts or troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907-8669). STEP 11: Attach the Backrest Cushion (No. 13) to the Seat Support Bracket (No. 9) with 4 Bolts (No.

  • Page 13: Battery Installation And Replacement

    BATTERY INSTALLATION & REPLACEMENT BATTERY INSTALLATION 1. Take out 2 AA batteries from computer box. 2. Press the buckle of battery cover on the Computer (No. 93), then remove battery cover. 3. Install 2 AA batteries into the battery case on the back of the Computer (No. 93). Pay attention to the battery + and –...
  • Page 14 ADJUSTMENTS GUIDE MOVING THE RECUMBENT BIKE Lift the Rear Stabilizer (No. 3) and tilt the recumbent bike until the Transportation Wheels (No. 49) touch the ground. Now you can transport the recumbent bike to the desired location with ease. ADJUSTING THE BALANCE In order to achieve a smooth and comfortable ride, you must ensure that the recumbent bike is stabled and secured.

  • Page 15: Exercise Computer

    EXERCISE COMPUTER FUNCTION BUTTONS MODE 1. Press the button to select hour, minute, year, month and date for setting. 2. Press the button to select TIME, DISTANCE, CALORIES and PULSE to preset. 3. Press the button for selection function display on main LCD, or enter after setting. 4.
  • Page 16 CALORIES Accumulates calories consumption during training from 0 to max. 999 calories. The user may also preset the target calorie before training by press SET & MODE button. Each setting increase is10 cal. Note : This data is a rough guide for comparison of different exercise sessions which can not be used in medical treatment.
  • Page 17 8. Recovery –When the PULSE is working, you can press “RECOVERY” button to start the recovery test function. The monitor will count down from 0:60 second to 0:00 and the heart beat symbol will be glitter till counting down to “0:00”. During 60 seconds counting period, please keep heart rate sensor is attached.

  • Page 18: App Connection

    APP CONNECTION: 1. Scan the QR code below to download the SunnyFit app onto your mobile device. 2. If this is your first time using the SunnyFit app, follow the in-app instructions to register for your free SunnyFit account and log in. 3.

  • Page 19: Exploded Diagram

    EXPLODED DIAGRAM 1...
  • Page 20 EXPLODED DIAGRAM 2...

  • Page 21: Troubleshooting

    TROUBLESHOOTING PROBLEM SOLUTION Remove the computer and verify that the wire from computer properly connected to the wire that comes from the front post. Check batteries correctly There is no display on the computer. positioned and battery springs are in proper contact with batteries.

  • Page 22: Parts List

    PARTS LIST Description Spec. Description Spec. Ф24*Ф30*520 Main Frame Foam Grip Front Stabilizer Handlebar Teleflex Rear Stabilizer Bolt M8*40 Ф8 Front Post Spring Washer Handlebar Cover Square End Cap 60*30 Rear Handlebar Screw ST4.2*15 Sliding Rail Sliding Rail Cover Seat Adjusting Tube Flexible Wire L=2500mm Seat Support Bracket...
  • Page 23 PARTS LIST Description Spec. Description Spec. Left Foot Bar Belt PJ375 Right Foot Bar Ф6 Left Pedal Spring Washer Right Pedal Bolt M6*15 Φ260 Bolt M8*50 Belt Pulley End Cap 30*30 Left Belt Cover Ф16*89*L23 Left Pedal Bolt Right Belt Cover Ф28*Ф17*0.3 Wave Washer Crank Cover...
  • Page 24 Bolt M8*85 Allen Wrench Square End Cap 80*40 Allen Wrench Ф8*Ф20*2.0 Plastic Washer Spanner S13,16 Shipping Tube Spanner S10,13,14,15 Allen Wrench Spanner S10,13,17,19 Version 1.0...
