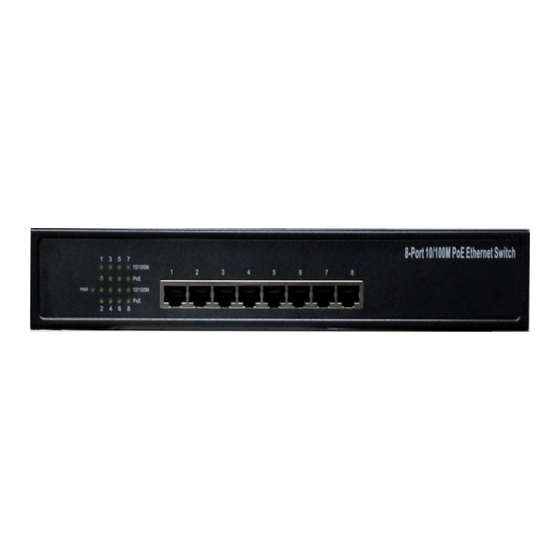

- Page 1 FEP-0840 8-Port Web Smart PoE Switch Quick Guide & User Manual V1.0 Digital Data Communications Asia Co., Ltd. http://www.level1.com http://www.level1.com...
- Page 2 Quick Guide Step1. Connect POE SWITCH with AC power cord to 100~240VAC. Step2. Connect the PoE AP device to LAN port 1, and your PC to LAN port 8 as the following connection. Step3. Turn on the power switch, it will light on the PWR LED, and perform self- diagnostic test.
- Page 3 Click the icon “PoE”, and then select “PoE Step6. Setting”. Select “Enable” and c lick on Port Step7. No.1 Update to power on the connected PoE AP “PoE Scheduling” to select time schedule for device for Port 1. You may also click Power on/off scheduling control.
-
Page 4: Table Of Contents
Table of Contents Introduction ........................ 7 Features ........................8 Power on Switch ....................8 LED Indicators ....................8 Switch Installations ..................... 9 Package Contents ....................9 Hardware Overview ..................9 Preparations for Site Installation..............11 Desktop Installation ..................11 Cabling Requirements ..................12 Power Connection ................... - Page 5 Port Management .................... 26 4.5.1 Port Configuration ................26 4.5.2 Port Mirroring ..................27 4.5.3 Bandwidth Control ................28 4.5.4 Broadcast Storm Control ..............34 VLAN Setting ....................35 4.6.1 VLAN Mode ..................35 4.6.2 VLAN Member ................... 36 Per Port Counter ..................... 39 QoS Setting .......................
- Page 6 Appendix B: Troubleshooting ..................54 B.1 Can NOT Access Web Page? ................54 B.2 Forget IP Address, User ID, and Password? ..........54 http://www.level1.com...
-
Page 7: Introduction
1 Introduction The POE SWITCH is an 8-Port Web-Smart Midspan PoE Switch with power on/off scheduling control. The web smart features are designed to deliver high levels of performance that are commensurate with Fast Ethernet networking, and to provide simple and easy installation in an environment where the power over Ethernet (PoE) are required for remote PoE devices. -
Page 8: Features
2 Features The POE SWITCH web smart PoE switch is equipped with an 8-port RJ45 connector for Fast Ethernet, and the corresponding LED indicators for each port. In addition, a built-in push button is provided for default reset, which is useful to reset back to the default IP address, user ID, and password. -
Page 9: Switch Installations
3 Switch Installations This chapter lists the package contents, and describes the hardware and detailed procedures for installation of the web management switch. For a quick setup, please refer to the quick guide at the beginning of this manual. 3.1 Package Contents Make sure that you have all the necessary accessories that come with your package, before you start the installation of the web management switch. - Page 10 LED Indicators: LED indicators display the network connection and PoE status of the switch. 100BASE-TX Fast Ethernet with PoE Ports (Port 1~8): These ports are with passive PoE capabilities, and will supply power to the connected PoE device under the control of the web management. This feature allows users to freely and safely mix legacy and PoE compatible devices on their network.
