LevelOne FEP-0531 User Manual

FEP-0531
User Manual

Brief introduction
Many thanks for purchasing Fast Ethernet POE Switch! This
product supports IEEE802.3U/100Base-Tx protocol, as well
as full duplex and half duplex mode. It provides 4 TX ports
and a UPLINK port, which can suit for most 10/100M
networks. This manual is for 100M converters.
Model Specifications
5 x UTP 10/100M adaptive, with 4 PSE port

Packing list
Please check the following items in the package before
installing the converter.
Fast Ethernet POE Switch
AC/DC adapter
User manual
Warranty card
Please contact the dealer immediately for any missing or
damaged items.

Interface
1. Interface
All RJ-45 copper interfaces support Auto-Negotiation for
optimal speed detection through RJ-45 CAT5 UTP cables
with a maximum length of 100 meters (or 328 feet). They
also support standard Auto-MDI/MDI-X that can detect the
type of connection to any Ethernet device without requiring
special straight or crossover cables.
2. Connection
All ports support 802.3af compliant Power Devices (PD) and
other network devices (e.g. work station, hub or switch).
Connect one end of the standard UTP CAT5 network cable
to the 10/100Mbps RJ-45 ports on the front panel of the
switch. Connect the other of the cable to the typical network
devices.
Panel
1. Front
1 piece
1 piece
1 copy
1 piece

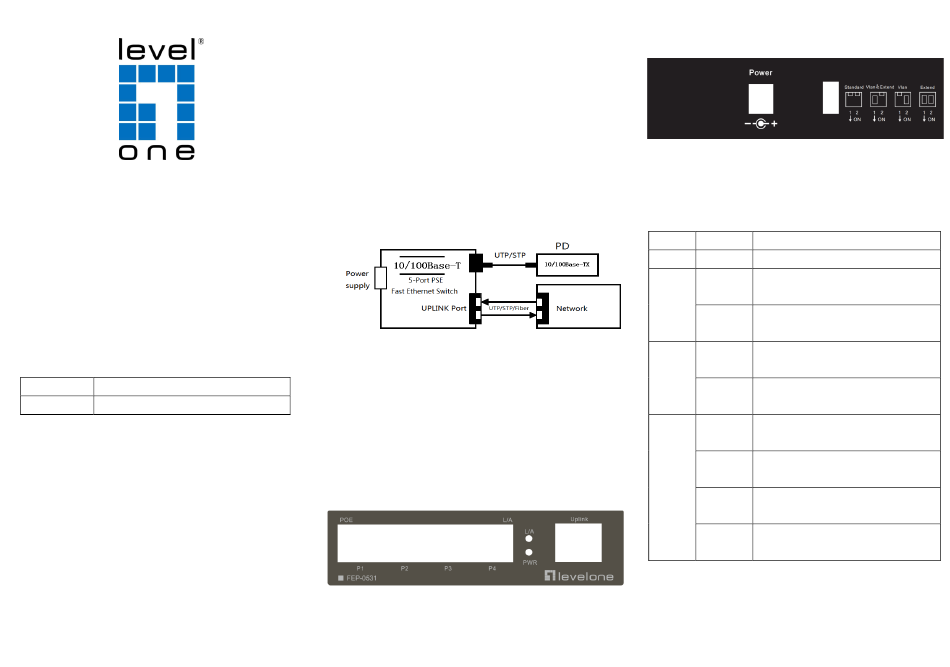

Fig.1 Basic Network Connection
1
2. Back

Explanation for LED indicator lamp
The LED indicator lamps serve as device monitoring and
error display. The following explains each LED indicator.
LED Status Explanation
PWR Green Lit when Power is available.
Lit when the connected port(s) is/are PSE
Yellow
POE starts to supply power
(P1~P4) Off when the connected port(s) is/are PSE
OFF
stop power supply
Lit when there is/are network device(s)
Green
L/A connect the corresponding port(s)
(P1~P4) Blink when the corresponding ports
Blink
is(are) transmitting data flows
Support 100 meters standard distance
Standard
transmission
Support 250 meters long distance
Two
Extend
transmission
bits DIP
switch Support 100M downlink port isolation,
VLAN
only uplink port communication
VLAN Support 10M Port isolation and 250
&Extend meters long distance transmission
