Reliable F1FR56 QREC Series Quick Start Manual

A complete line of quick response extended
coverage spray sprinklers for light hazard ap-
plications.
Horizontal Sidewall Sprinklers are approved
for installation 4" to 12" (102mm - 305mm) be-
low the ceiling.

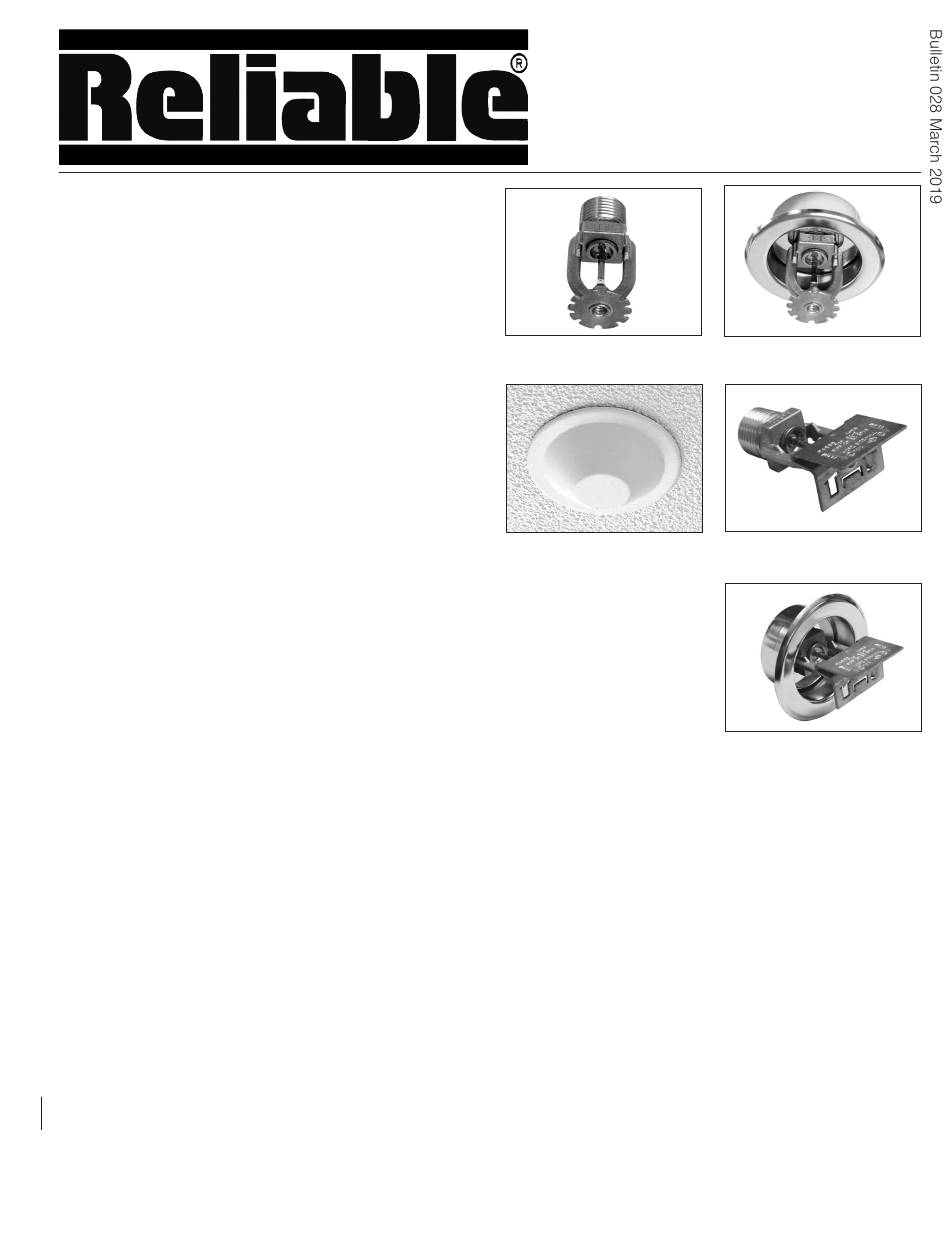

Model F1FR56 QREC Sprinkler Types

Pendent
Horizontal Sidewall EC-8
Model F1FR56 QREC Recessed Sprinkler Types
Recessed Extended Coverage Pendent F1/F2/FP
Recessed Extended coverage Horizontal Sidewall
Model F1FR56 QREC Concealed
Extended Coverage Pendent

Approval Organizations

1. Listed by Underwriters Laboratories, Inc. and
Certified for Canada (cULus)
2. Factory Mutual Approvals (FM) (See Application
section for specific approvals)

UL Listing Category

Sprinklers, Automatic & Open
Quick Response Extended Coverage Sprinkler (VNIV)

Product Description

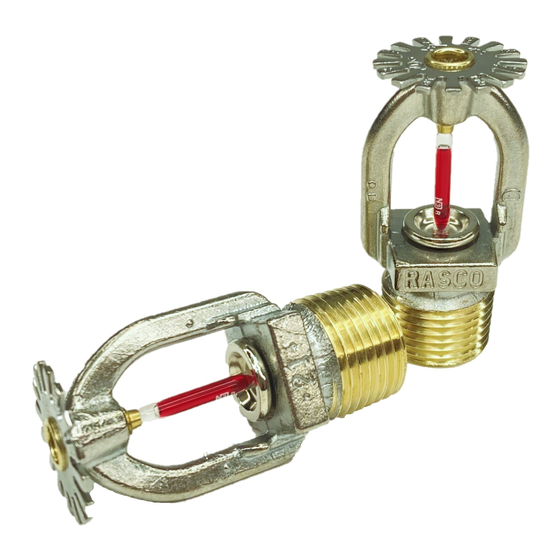

Reliable Models F1FR56 QREC and F1FR56 QREC Re-
cessed Sprinklers are quick response sprinklers which
combine the durability for a standard sprinkler with the at-
tractive low profile of a decorative sprinkler.
The Models F1FR56 QREC and F1FR56 QREC Recessed
Automatic Sprinklers utilize a 3.0mm frangible glass bulb.
These sprinklers have demonstrated response times in
laboratory tests which are five times faster than standard
response sprinklers. This quick response enables these
sprinklers to apply water to a fire faster than standard re-
sponse sprinklers of the same temperature rating.
Model F1FR56 QREC Quick Response Extended Cover-
age Concealed Sprinkler is an attractive, low profile con-
cealed sprinkler assembly. This sprinkler assembly uti-
lizes a Model F1FR56 QREC pendent sprinkler in a Model
CCP cup and push-on thread-off cover plate assembly.
The cup is securely factory threaded on the sprinkler's in-
let end. The assembly is shipped with a protective cap.
The sprinkler and cup are easily installed into the sprinkler
fitting using the Model GFR2 Sprinkler Wrench. The cover
plate assembly is attached to the sprinkler cup using a
flexible tooth threaded engagement. The cover plate is
attached to the skirt using 135°F (57°C) ordinary tempera-
ture classification solder.
Reliable Automatic Sprinkler Co., Inc., 103 Fairview Park Drive, Elmsford, New York 10523
Model F1FR56 QREC Series
K 5.6 (80 metric)
Quick Response
Extended Coverage Sprinklers
Extended Coverage
Pendent
Extended Coverage
Pendent Concealed
When the ceiling temperature rises, the solder holding
the cover plate melts, allowing the release of this part and
thus exposing the Model F1FR56 QREC sprinkler inside to
the rising ambient temperature.
The Temperature rating of the sprinkler identified by the
color of the glass bulb.
The glass bulb consists of an accurately controlled
amount of special fluid hermetically sealed inside a pre-
cisely manufactured glass capsule. This glass bulb is spe-
cially constructed to provide fast thermal response.

Application

Quick response sprinklers are used in fixed fire protection
systems: Wet, Dry, Deluge or Preaction. Care must be exer-
cised that the orifice size, temperature rating, deflector style
and sprinkler type are in accordance with the latest published
standards of the National Fire Protection Association or the
approving authority having jurisdiction. Quick response sprin-
klers are intended for installation as specified in NFPA 13.
Bulletin 028 March 2019
Recessed Extended
Coverage Pendent F1/F2
Extended Coverage
Horizontal Sidewall EC-8
Recessed Extended
Coverage Horizontal
Sidewall EC-8
