Reliable F1FR56 QREC Series Bulletin

A complete line of quick response extended
coverage spray sprinklers for light hazard
applications.
Horizontal Sidewall Sprinklers are approved
for installation 4" to 12" (102mm - 305mm)
below the ceiling.

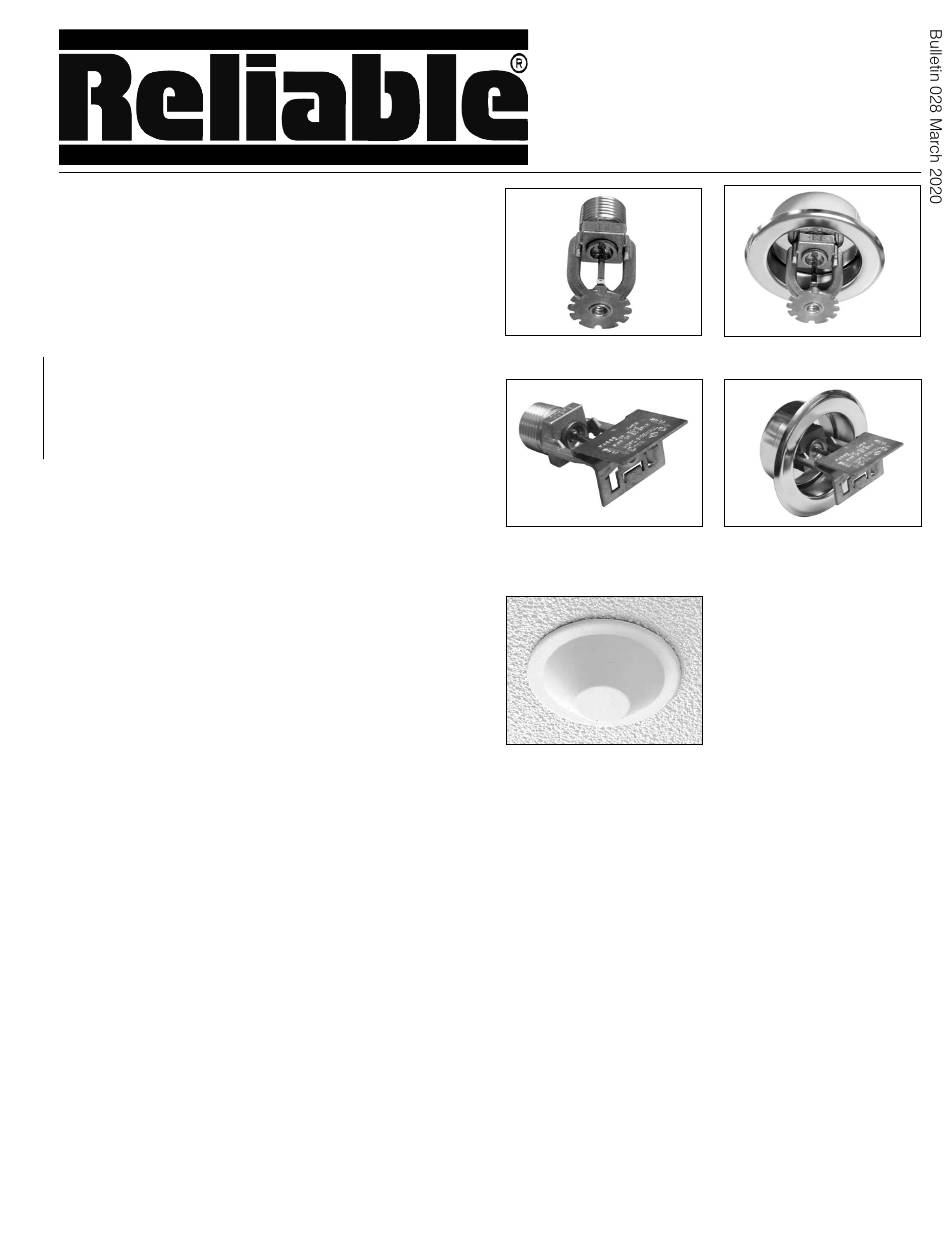

Model F1FR56 QREC Sprinkler Types
Extended Coverage Pendent
Extended Coverage Recessed Pendent F1/F2/FP
Extended Coverage Horizontal Sidewall
Extended Coverage Recessed Horizontal Sidewall F1/F2
Extended Coverage Concealed Pendent CCP
Model F1FR56 QREC Recessed Sprinkler Types
Recessed Extended Coverage Pendent F1/F2/FP
Recessed Extended coverage Horizontal Sidewall
Model F1FR56 QREC Concealed
Extended Coverage Pendent
Approval Organizations
1. Listed by Underwriters Laboratories, Inc. and
Certified for Canada (cULus)
2. Factory Mutual Approvals (FM) (See Application
section for specific approvals)
UL Listing Category
Sprinklers, Automatic & Open
Quick Response Extended Coverage Sprinkler (VNIV)
Product Description
Reliable Models F1FR56 QREC and F1FR56 QREC
Recessed Sprinklers are quick response sprinklers which
combine the durability for a standard sprinkler with the
attractive low profile of a decorative sprinkler.
The Models F1FR56 QREC and F1FR56 QREC
Recessed Automatic Sprinklers utilize a 3.0mm frangible
glass bulb. These sprinklers have demonstrated
response times in laboratory tests which are five times
faster than standard response sprinklers. This quick
response enables these sprinklers to apply water to a
fire faster than standard response sprinklers of the same
temperature rating.
Model F1FR56 QREC Quick Response Extended
Coverage Concealed Sprinkler is an attractive, low profile
concealed sprinkler assembly. This sprinkler assembly
utilizes a Model F1FR56 QREC pendent sprinkler in a
Model CCP cup and push-on thread-off cover plate
assembly. The cup is securely factory threaded on
the sprinkler's inlet end. The assembly is shipped with
a protective cap. The sprinkler and cup are easily
Reliable Automatic Sprinkler Co., Inc., 103 Fairview Park Drive, Elmsford, New York 10523
Model F1FR56 QREC Series
K 5.6 (80 metric)
Quick Response
Extended Coverage Sprinklers
Extended Coverage
Pendent
Extended Coverage
Horizontal Sidewall EC-8
Extended Coverage
Pendent Concealed
installed into the sprinkler fitting using the Model GFR2
Sprinkler Wrench. The cover plate assembly is attached
to the sprinkler cup using a flexible tooth threaded
engagement. The cover plate is attached to the skirt
using 135°F (57°C) ordinary temperature classification
solder.
When the ceiling temperature rises, the solder holding
the cover plate melts, allowing the release of this part and
thus exposing the Model F1FR56 QREC sprinkler inside
to the rising ambient temperature.
The Temperature rating of the sprinkler identified by the
color of the glass bulb.
The glass bulb consists of an accurately controlled
amount of special fluid hermetically sealed inside a
precisely manufactured glass capsule. This glass bulb is
specially constructed to provide fast thermal response.
Bulletin 028 March 2020
Recessed Extended
Coverage Pendent F1/F2
Recessed Extended
Coverage Horizontal
Sidewall F1/F2
