(Lowrance Broadband Sounder)
The LBS-1 is a digital sonar optimizer designed to enhance sonar echo
clarity. The broadband sounder was created to deliver the most striking
underwater definition possible, with digitally-purified marking, includ-
ing separation of fish, structure, thermoclines and bottom detail while
minimizing surface and turbulent water clutter.
This document explains how to connect the LBS-1 to a compatible
Lowrance display unit. The broadband sounder connects directly be-
tween the transducer and display unit. Read the following instructions
carefully before attempting to install the LBS-1.

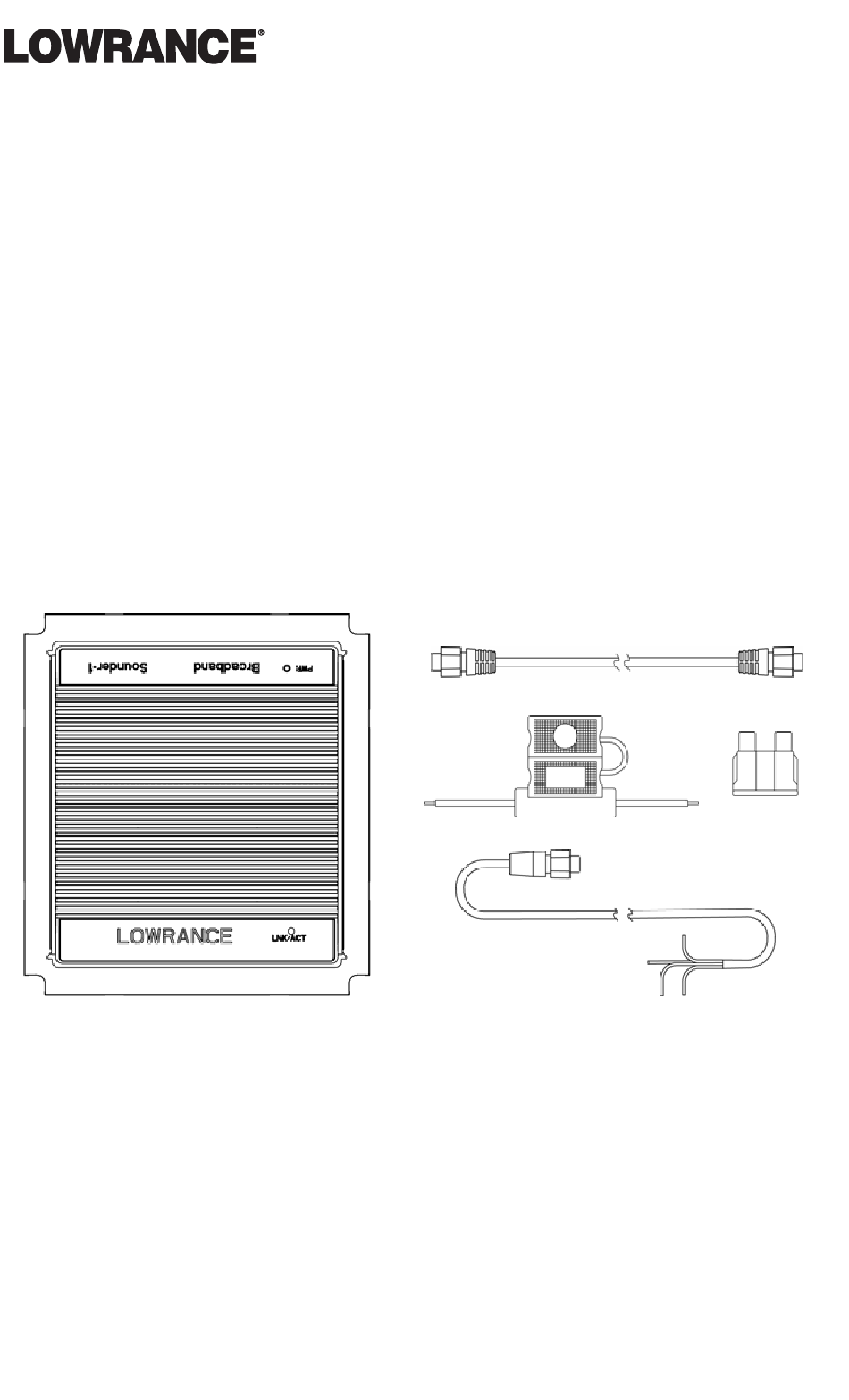

Included Components
Included with the LBS-1:
• Six-foot (five pin) Ethernet cable. The Ethernet cable connects the
LBS-1 to the display unit.
• Six-foot (four pin) power cable. This cable has a connector plug at one
end for connecting to the LBS-1 and 4 wires (red, black, yellow and
blue) on the other end for connecting to the power supply.
• Fuse and fuse holder. The fuse holder connects to the red power cable
wire between the power source and broadband sounder.
LBS-1
Installation Instructions
Ethernet cable
Fuse
holder
Power cable
1
Pub. 988-0170-001
Fuse
Advertisement
Related Manuals for Lowrance LBS-1
Summary of Contents for Lowrance LBS-1
- Page 1 LBS-1 to the display unit. • Six-foot (four pin) power cable. This cable has a connector plug at one end for connecting to the LBS-1 and 4 wires (red, black, yellow and blue) on the other end for connecting to the power supply.
-
Page 2: Unit Dimensions
The PWR indicator light turns green to indicate the LBS-1 is powered on and active. If the PWR indicator light is not red or green, it may mean the unit is not receiving power from the power... -
Page 3: Power Cable
Mounting the Broadband Sounder The LBS-1 is waterproof to IPX-7 and is designed to work with all 5" (or larger) Lowrance 2007 (and later) color display units. The display... - Page 4 • Lowrance specified cables are used. The following diagram shows how the LBS-1 connects to a display unit and power source. Notice that in this example the yellow wire for the LBS-1 power cable has a switch (not included) allowing the broadband sounder to be powered on or off.
- Page 5 Black Blue LBS-1 Battery Transducer cable If the LBS-1 is connected directly to the battery, the LBS-1 will continue to draw Transducer power even when it is not in operation. It is recommended that the yellow power cable wire be fitted with an on/off switch, allowing it to be powered off when not in use.
- Page 6 The LBS-1 is designed for use on a DC power system rated from 9 to 32 volts. Power should be fed directly to the broadband sounder via its own dedicated power cable and protected using the provided fuse and fuse holder on the red (positive) wire.
- Page 7 Display Unit Operation with Broadband Sounder If you are not familiar with your units display menus, consult the prod- uct manual provided with the display unit. When the LBS-1 is properly connected, and both the display unit and broadband sounder are pow- ered on, a new menu option appears at the bottom of the Sonar menu.
-
Page 8: Product Specifications
Accessories ® • Skimmer transducer and transducer cable • Navico Expansion Port (NEP-1) Product Specifications Voltage input································· 9v to 32v DC Output power································ 250 Watts RMS; 2,000 Watts (peak-to-peak) Sonar Frequency···························50 kHz, 83 kHz, 200 kHz Communication·····························Ethernet 10/100 Physical: Size: (HWD) 2.3"x 8.3"x7.4" (57.62x210.17x188.17 mm) Weight: 1.82 lbs. - Page 10 NAVICO FULL ONE-YEAR LOWRANCE WARRANTY "We," "our," or "us" refers to NAVICO, the manufacturer of this product. "You" or "your" refers to the first person who purchases this product as a consumer item for personal, family or household use. We warrant this product against defects or malfunctions in materials and workmanship, and against failure to conform to this product's written specifications, all for one (1) year from the date of original purchase by you.
- Page 11 To obtain service outside Canada and the USA: If you have technical, return or repair questions, contact the dealer in the country where you pur- chased your unit. To locate a dealer near you, visit our web site, www.lowrance.com and look for the Dealer Locator.
- Page 12 Pub. 988-0170-001 © Copyright 2008 All Rights Reserved Printed in USA 011408 Lowrance Electronics, Inc.
