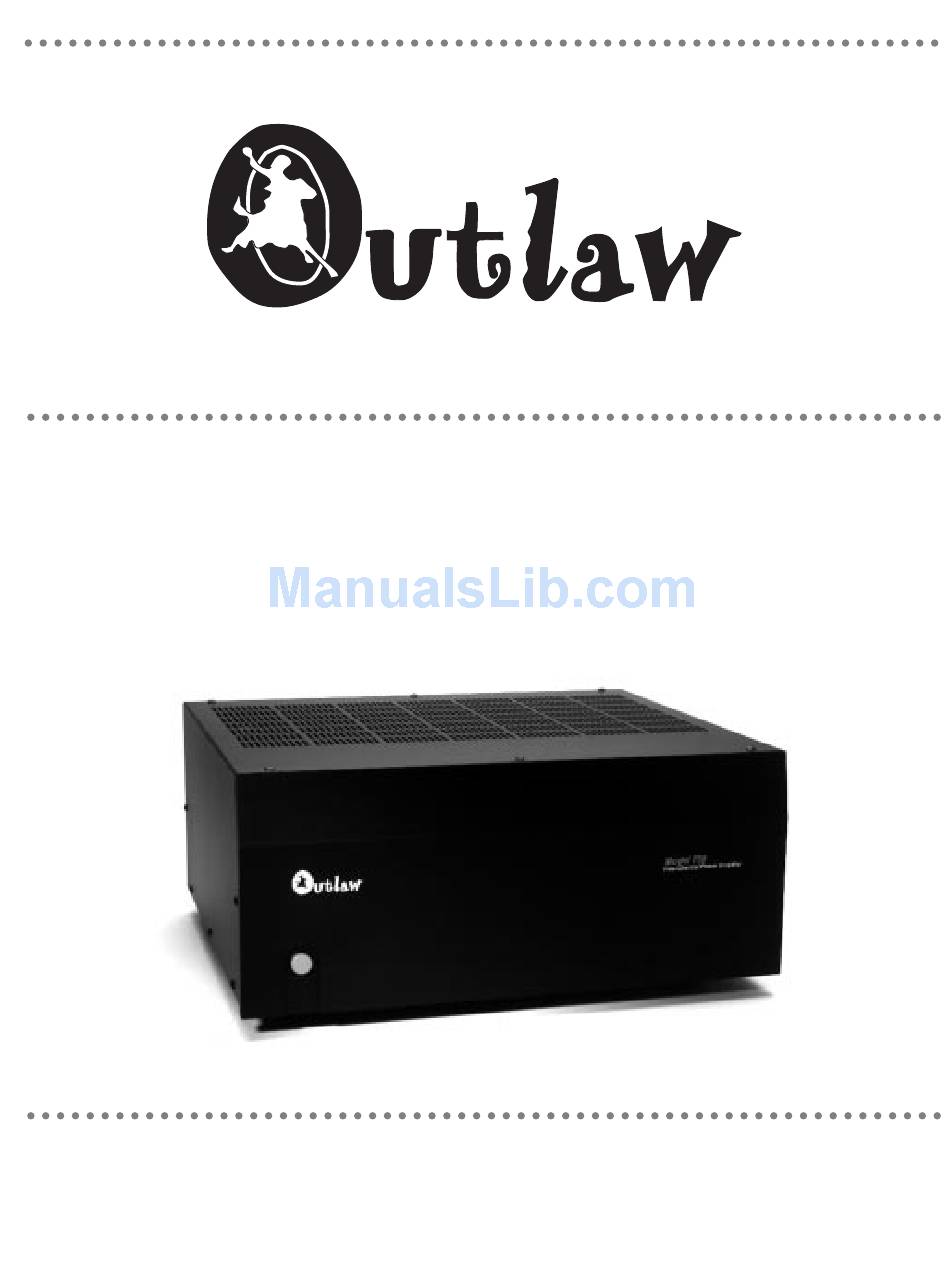

Outlaw Model 750 Power Amplifier
Owner' s Manual
Outlaw Audio Inc., 18 Denbow Road
Durham, NH 03824
Tel. (800) 392-1393, Fax (603) 868-6634
www.outlawaudio.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the 750 and is the answer not in the manual?

Questions and answers

Summary of Contents for Outlaw 750

  • Page 1 Outlaw Model 750 Power Amplifier Owner’ s Manual Outlaw Audio Inc., 18 Denbow Road Durham, NH 03824 Tel. (800) 392-1393, Fax (603) 868-6634 www.outlawaudio.com...
  • Page 2 The Outlaw Model 750 Instruction Manual Congratulations! As the owner of an Outlaw Model 750 Five-Channel Power Amplifier, you are in possession of a unique product. Designed and manufactured in the United States, the Outlaw 750 has been carefully designed to deliver the best possible sonic performance. We welcome you as a member of our Outlaw band, and hope that your new Outlaw 750 will bring many years of enjoyable listening to your music or home theater system.
  • Page 3 The Outlaw Model 750 Instruction Manual Outlaw Model 750 Design Description: The Outlaw 750 is a state of the art, high performance, audio power amplifier. It is built utilizing totally complementary circuitry from input to output. The high current power supply is driven by a custom designed 1.5 KVA torrodial transformer with two separate windings for each of the five...
  • Page 4 Before You Install Your Outlaw Model 750: • Verify The Line Voltage Your new Outlaw 750 amplifier has been factory configured for 120 (+/- 3%) volt AC lines. Connecting the amplifier to a line voltage other than that for which it is intended can create a safety and fire hazard, and may damage the amplifier.
  • Page 5 As with all electrical devices, do not run power cords under rugs or carpets or place heavy objects on them. Damaged power cords should be replaced immediately by Outlaw Audio or an authorized service technician with cords meeting factory specifications.
  • Page 6 • Remote Trigger Input: This is the input jack for remote turn-on control of the Outlaw 750. Connect it to a compatible trigger output from a processor or other product that has an output of 3-32 VDC.
  • Page 7 • Remote Turn-On Using Products Equipped With a 12 Volt Trigger Jack - Press the front panel power switch on the Outlaw 750 so that it is in the ON position. Then, using an accessory cable with a 3.5mm mono mini-plug on each end, connect the trigger-output jack on the rear of the source device to the trigger-input jack on the back panel of the Outlaw 750.
  • Page 8 Outlaw Model 750 Speaker Connections • Wires and Cables To assure that the high quality signals produced by your Outlaw amplifier are carried to your speakers without loss of clarity or resolution, we recommend that you use high quality speaker wire.
  • Page 9 The Outlaw Model 750 Instruction Manual Outputs SURROUND LEFT From Preamplifier Audio Cables Inputs To Amplifier OUTLAW AUDIO DURHAM NEW HAMPSHIRE U.S.A. Speaker Level Outputs serial number ATTENTION: DESIGNED, ENGINEERED AND MANUFACTURED IN THE UNITED STATES OF AMERICA Speaker Wires...
  • Page 10 The Outlaw Model 750 Instruction Manual Next, loosen the knobs of the amplifier’s speaker output terminals, far enough so that the pass- through hole is revealed. Note that one conductor of the speaker cable should have no markings, and the other should have a red line, brand name markings, a colored thread, or some other positive indication.
  • Page 11 Now you are ready for listening: First, turn on the source components and processor in your system. It is always a good idea to turn on your Model 750 LAST. This avoids the possibility of any turn on pops or transients from other equipment being amplified and sent to your speakers where they may cause damage.
  • Page 12 To assure proper sound field imaging, it is always a good idea to re-set the output levels of the channels on your processor when using the Outlaw 750 for the first time. The circuitry in the 750 may be different from your previous amplifier, and by checking the output levels you will make certain that the processor, amplifier and speakers are properly matched.
  • Page 13 Under some conditions, such as a shorted speaker wire, DC voltage on an input connection or thermal overload, the Outlaw 750 will place itself in a protect mode to prevent damage to the amplifier. When this happens the amplifier will mute to protect both the amplifier and speakers from damage.
  • Page 14 The Outlaw Model 750 Instruction Manual • A Few Words About Hum and Noise Audible hum, or a discernable low frequency noise, is one of the most common problems in audio/video systems. This hum, which may be present even when the volume is at a low level or when the power is off, is usually caused by a problem known as “ground loops”.
  • Page 15 The Outlaw Model 750 Instruction Manual Suggestion #1: To determine if a cable TV connection is responsible for the hum, first turn all components off. Disconnect the cable TV feed to your system at the first place where it connects to your components. Alternatively, disconnect the cable TV wire where it is connected at the wall outlet.
  • Page 16 If you decide to return the Model 750, the only cost you will be responsible for is the shipping charge to return it to us. When your amplifier arrives, we will inspect it to insure that it was shipped back to us in original condition.
  • Page 17 The Outlaw Model 750 Instruction Manual Outlaw Model 750 Specifications: Power Output: 5 x 165 watts @ 8 ohms, FTC: 20 - 20kHz, 0.05% THD, All Channels Driven, 5 x 250 watts @ 4 ohms, FTC: 20 - 20kHz, 0.05% THD, All Channels Driven Frequency Response: 20Hz.
  • Page 18 The Outlaw Model 750 Instruction Manual Outlaw Model 750 Limited Warranty This warranty protects the owner of the Outlaw 750 Power Amplifier (the PRODUCT) for five (5) years from the date of purchase. This warranty covers all defects in material and workmanship with the following specific exceptions.
  • Page 19 In the event that you wish to return your Outlaw Model 750 amplifier back to us, for any reason, please call to arrange for a Return Authorization Number. This will insure that your problem is discussed with a service technician who will determine if there is a quick solution to your problem.
