2.2.2 Installing the LinkPort/TX32A Adapter
Follow the procedure below to install the LinkPort/TX32A card:
1.
2.

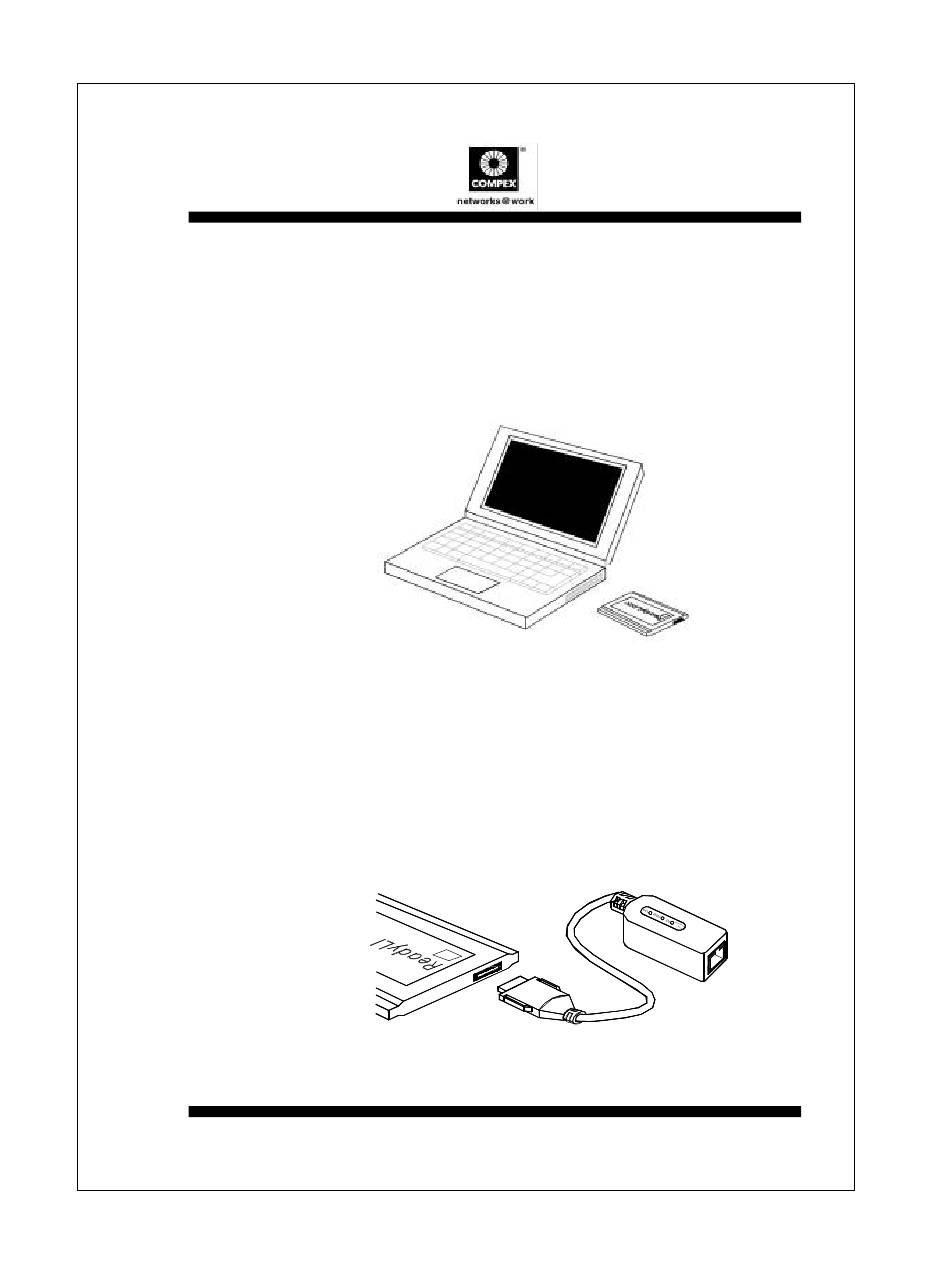

Figure 2-2.3 Insert the LinkPort/TX32A into the Socket
3.
Figure 2-2.4 Plug 15-pin Flat connector to 15-pin Mating connector
Chapter 2: Hardware Installation
Turn off the host computer.
With the card's 68-pin connector facing the PCMCIA
CardBus slot, slide the card all the way into the PCMCIA
CardBus slot as illustrated in Fig.2-2.3
Plug the Ethernet adapter cable to the 15-pin connector
on the LinkPort/TX32A card as shown in Fig.2-2.4.
Note: Attention should be paid when removing the 15-pin
connector. Please press the both sides of the connectors
before pulling out of the PC Card.
2-3
