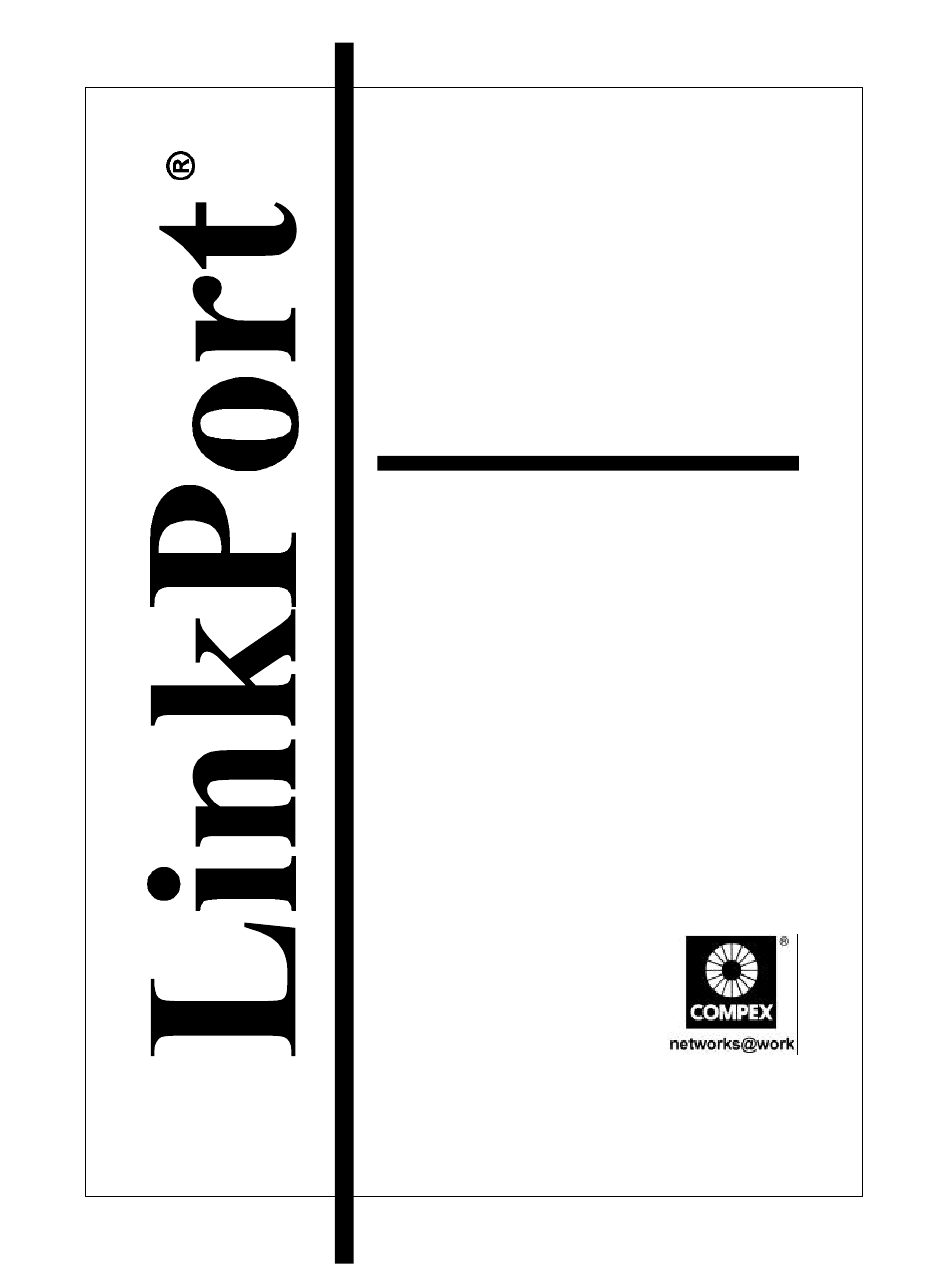

- Page 1 Compex ® ® LinkPort CardBus Fast Ethernet Adapter LinkPort/TX32A 10/100 PCMCIA Fast Ethernet Adapter LinkPort/TX16A Version 1.4C...
- Page 2 Compex LinkPort/TX32A CardBus Fast Ethernet Adapter Compex LinkPort/TX16A 10/100 PCMCIA Fast Ethernet Adapter User’s Manual Version 1.4C M-0151-V1.4C Manual Number: February 2000 Manual Release Date: Printed in the Republic of Singapore...
-
Page 3: Table Of Contents
1.2 Features …………………………………….. 1.3 Quick Installation …………………………… 2. Hardware Installation ………………………… 2.1 Contents of Package ……………………….. 2.2 LinkPort/TX32A……………………………. 2.2.1 Hardware Description ………...……….. 2.2.2 Installing the LinkPort/TX32A……….. 2.3 LinkPort/TX16A……………………………… 2.3.1 Hardware Description………………….. 2.3.2 Installing the LinkPort/TX16A………… 3. Windows Installation…………………………… 3.1 Windows 98 ……………………………….. -
Page 4: About This Manual
About this Manual This is a user’s guide for your Compex CardBus Fast Ethernet Card (LinkPort/TX32A) and Compex 10/100 PCMCIA Fast Ethernet Card (LinkPort/TX16A). Please read this manual before you attempt to install the product. This manual includes the following topics: §... -
Page 5: Introduction
(LinkPort/TX32A) or Compex 10/100 PCMCIA Fast Ethernet Adapter (LinkPort/TX16A). LinkPort/TX32A and LinkPort/TX16A cards are network adapter cards for notebook computers and comply with the PCMCIA TYPE II standard. They provide 10Mbps and 100Mbps auto-sensing features which easily enable you to connect to Ethernet networks of different speeds without having to reconfigure notebook each time. -
Page 6: Quick Installation
Transmit/Receive LED indicators. 1.3 Quick Installation This section briefly outlines the steps needed to install the LinkPort/TX32A and LinkPort/TX16A cards, their driver software and how to connect them to the network. (Read Chapter 2 and 3 for details) 1. Install card to your notebook computer. -
Page 7: Hardware Installation
2.2 LinkPort/TX32A 2.2.1 Hardware Description The LinkPort/TX32A card is encased in a stainless compact frame that is easily transportable. It has a 68-pin connector and a 15-pin flat connector for attaching to the notebook computer and ethernet adapter cable respectively (Fig.2-2.1) - Page 8 16-bit PCMCIA card. This mechanism can protect the 3.3V CardBus card from mis-insertion to 5V 16-bit PCMCIA slot (Fig. 2-2.2). Protection grid Figure 2-2.1 CardBus Fast Ethernet Adapter (LinkPort/TX32A) Traditional PC Card (5V) CardBus Card (3.3V) PCMCIA Card Figure 2-2.2 Hardkey of CardBus and Traditional...
-
Page 9: Installing The Linkport/Tx32A
2.2.2 Installing the LinkPort/TX32A Adapter Follow the procedure below to install the LinkPort/TX32A card: Turn off the host computer. With the card’s 68-pin connector facing the PCMCIA CardBus slot, slide the card all the way into the PCMCIA CardBus slot as illustrated in Fig.2-2.3 Figure 2-2.3 Insert the LinkPort/TX32A into the Socket... -
Page 10: Linkport/Tx16A
4. Connect the Ethernet adapter cable to network to a Hub or Switch as shown in Fig.2-2.5 Figure 2-2.5 Connecting to a Hub Power on the computer. 2.3 Section B: LinkPort/TX16A 2.3.1 Hardware Description The LinkPort/TX16A card is encased in a stainless compact frame that is easily transportable. - Page 11 Media Coupler The LinkPort Coupler with the female RJ connector at the end is for attaching the card to the network. Fig.2-3.2 shows the LinkPort Coupler. "Link" LED "Act" LED "100M" LED Figure 2-3.2: Media Coupler of LinkPort/TX16A LED Indicators There are three LED indicators on top of the Coupler (Fig.2-3.3) "Link"...
-
Page 12: Installing The Linkport/Tx16A
The frequency of flashing increases with the network traffic. ‘10/100’ LED: This LED monitors the line speed of the card connection. 100Base-TX connection when both ‘Link’ LED and ‘10/100’ LED light up. 10Base-T connection when ‘Link’ LED is ON and ‘10/100’ LED is OFF. ‘Link’... - Page 13 Connect unshielded twisted pair (UTP) cable from network or repeater to the RJ-45 connector of media coupler before loading any network driver. Power on the computer. Figure 2-3.4: Installing and connecting LinkPort/TX16A to network Chapter 2: Hardware Installation...
-
Page 14: Windows Installation
CD-ROM Specify a location Check on Floppy Disk Drive and click NEXT. * Note: Before you click NEXT, insert Compex LinkPort\TX32A driver disk in drive A. Windows will locate the PCMCIA device and display the followings: "Compex LinkPort\TX32A Cardbus Fast Ethernet Adapter"... -
Page 15: Windows 95
Refer to Windows documents for further details. When completed, Windows will again prompt to restart the machine. Click YES. When Windows had rebooted, Compex LinkPort\TX32A adapter is ready to access the network. 3.2 Windows 95 There are at lease 2 different releases version of Windows 95. - Page 16 Section A: Installation for Windows 95 Release Version 2 or OSR2 (with Internet Explorer). Insert the LinkPort/TX32A adapter in the notebook CardBus slot and start up Windows 95. Windows will automatically detect the LinkPort/TX32A adapter and display "New Hardware Found" then "PCMCIA-Ethernet Adapter"...
-
Page 17: Windows 2000
CD-ROM and the LinkPort/TX32A driver disk. When completed, Windows will prompt to Reboot the notebook. Click OK. LinkPort/TX32A adapter is now ready to service the network. 3.3 Windows 2000 The installation for LinkPort\TX32A adapter for Windows 2000 is a menu driven through Windows interface. - Page 18 Windows will continue to copy all related files from Windows CDROM. When completed, the message will display: "Windows has finished installing the software for this device" Click Finished. Compex LinkPort\TX32A adapter is ready to access the network. Chapter 3: Windows Installation...
-
Page 19: Windows Nt V4.0
Click on [Have Disk] button to select driver not found in Windows default list of network adapters. Type in the drive and path, A:\WINNT and click NEXT. "Compex LinkPort\TX32A Cardbus Fast Ethernet Adapter" selection will display. Select it. Leave the Bus Number selected at 0. -
Page 20: Software Driver Installation For Novell Netware 3.X/4.X Client
4.1 System Requirements 4.1.1 Hardware Requirements Notebook must be equipped with TYPE II CardBus slot and CardBus Socket controller for LinkPort/TX32A. But must have Type II PC card socket for LinkPort/TX16A. 4.1.2 Firmware Requirements Fully compliant with Rev. 2.1 or above PCI BIOS supplied with the PC. -
Page 21: Driver Installation
Tel: 801-429-7000 Fax: 801-429-5224 4.2 Driver Installation Before your computer system can recognize your LinkPort/TX32A or LinkPort/TX16A card, its enabler programs must first be installed to enable the card for DOS base OS. For Windows, it is plug and play. - Page 22 with the LinkPort. (Note: Client driver should be loaded after Card and Socket Services are loaded). These services allow the PCMCIA card to automatically configure itself. If you do not have the Card and Socket Services installed, run the INSTALL program found on your installation diskette. At DOS prompt, type A:\INSTALL.
-
Page 23: Network Operating Systems (Nos)
Please refer to these documents to install the network driver for the adapter. As new and updated NOS become available, update drivers and new release diskettes will be made available in the Compex Website, FTP site and BBS servers. For details refer to Appendix 2. Chapter 4: Software Installation... -
Page 24: Disclaimer
Trademark Information: Compex , ReadyLINK , and MicroHub are registered trademarks of Compex, Inc. All brand and product names are trademarks or registered trademarks of their respective owners. Notice: Copyright © 2000 by Compex, Inc. All rights reserved. Reproduction, adaptation, or translation without prior permission of Compex, Inc.is prohibited, except as allowed under the copyright... -
Page 25: Appendix 2
Fax: 49 (0) 6074 - 93974 (24-hour access) BBS: Asia, Australia, New Zealand, Middle East and the rest of the World Compex Systems Pte Ltd Write 135, Joo Seng Road #08-01, PM Industrial Building Singapore 368363 Tel: (65) 286-1805 (8 a.m.-5 p.m. local time) -
Page 26: Notes
NOTES Notes Appendix 3... - Page 27 Compex, Inc. 4051 E. La Palma, Unit A Anaheim, CA 92807 USA (714) 630-7302 © 2000 by Compex, Inc. All rights reserved. Printed in Singapore Compex CardBus Fast Ethernet Adapter (LinkPort/TX32A) Compex 10/100 PCMCIA Fast Ethernet Adapter (LinkPort/TX16A) Manual Number: M-0151-V1.4C...
