Summary of Contents for Compex WLP54G 3a

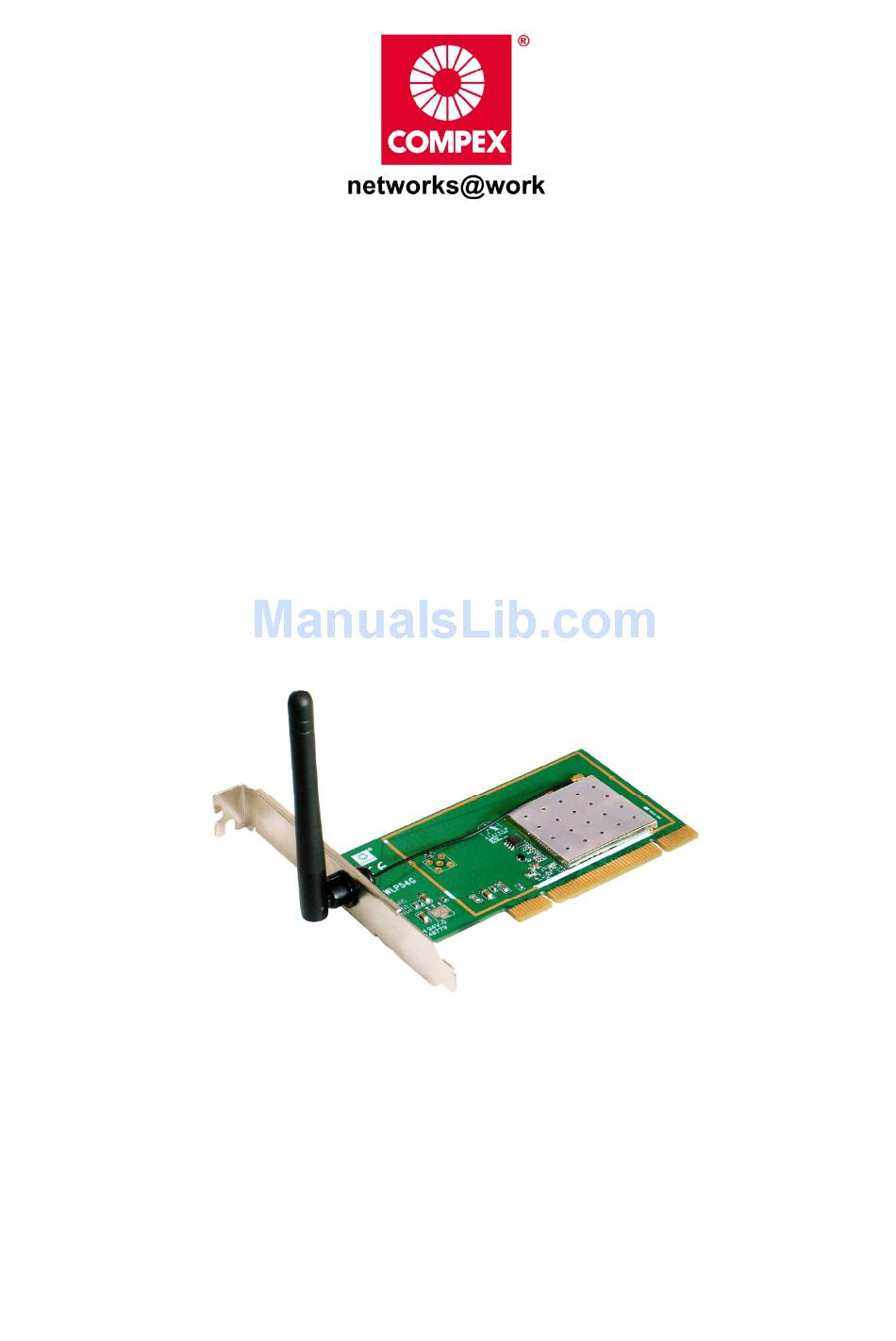

- Page 1 Quick Install Guide Wireless-G Network PCI Adapter WLP54G 3a...
-
Page 2: Table Of Contents
TABLE OF CONTENTS INTRODUCTION..............1 ..............1 ACKAGING ONTENT DRIVERS & UTILITY INSTALLATION........2 UNPLUG PCI ADAPTER FROM THE SYSTEM.......11 UN-INSTALL COMPEX WLP54G 3A UTILITY.......12... -
Page 3: 1: Introduction
IEEE 802.1x Authentication and 64-bit or 128- bit WEP (Wired Equivalent Privacy). Compex iWavePort WLP54G supports easy Plug and Play installation. Compex iWavePort WLP54G combines simplicity, data privacy and reliability for your wireless network. Packaging Content Actual product appearance may slightly differ depending on the hardware version. -
Page 4: 2: Drivers & Utility Installation
Turn off your PC and switch off the power from the power point. Then insert Compex iWavePort WLP54G into your PCI slot as shown above. Power up your PC. Next, insert the Product CD into your computer CD-ROM drive. Click on Driver/Utility and the system will run the setup.exe... - Page 5 Chapter 2 Driver & Utility Installation Next, the Atheros Client Installation Program screen appears. Click on the Next> button to proceed. When the License Agreement screen appears, you are required to read and accept the agreement to continue. Click on the Next> button to proceed.
- Page 6 Chapter 2 Driver & Utility Installation Select your preferred setup: Install Client Utilities and Driver (Recommended) option You are recommended to select this setup type. This option will install both the drivers and utility that support your PCI adapter. Install Driver Only option (For Windows XP user only) Select this option if you are going to use the Wireless Zero Configuration Utility to configure your PCI adapter.
- Page 7 Chapter 2 Driver & Utility Installation For Windows XP users, If you are using Windows XP as operating system, the following screen will appear. Read the notice carefully and click on the Next> button to proceed. Select your choice of tool to assist you in configuring your PCI adapter. Click on the Next>...
- Page 8 Chapter 2 Driver & Utility Installation Third Party Supplicant option (continued..) If you have selected Third Party Supplicant configuration tool, a screen similar to that on the right will appear, prompting you to enable/disable the system tray icon. Click on the checkbox besides Enable Atheros System Tray Utility and click on the Next>...
- Page 9 Chapter 2 Driver & Utility Installation Once a similar screen similar to the one shown below appears, click on the Continue Anyway button to continue the installation. Click on the Finish button to complete the installation. In the Atheros Client Installation Program window, click Yes to restart your PC now.
- Page 10 Chapter 2 Driver & Utility Installation To confirm if the driver has been successfully installed on your system, Proceed to your desktop, right click on My Computer and select Properties. Select the Hardware tab and click on Device Manager.
- Page 11 Chapter 2 Driver & Utility Installation The folder name, Atheros AR5005GS Wireless Network Adapter will appear in the Network Adapters section. This indicates that the driver for Compex WLP54G been successfully installed on your system! To activate the utility program, double click on the icon shown in the system tray.
- Page 12 To use the Atheros Client Utility, go to the Start Menu followed by Programs. Then select Atheros. From Atheros, select Atheros Client Utility. You may now start to configure your Compex WLP54G. For details on using the utility, refer to the User’s Manual stored in the Product...
-
Page 13: 3: Unplug Pci Adapter From The System
Chapter 3 Un-install Compex WLP54G Utility 3: Unplug PCI Adapter from the System To safely unplug your PCI adapter from your system, Go to the Start menu to select Shutdown. Power off your PC. The LEDs on the PCI adapter will be turned off. -
Page 14: 4: Un-Install Compex Wlp54G 3A Utility
Also note that if you wish to un-install BOTH the drivers and utility, do not remove your Compex WLP54G from the PCI slot of your PC. When you un-install the WLP54G software, any existing profiles will be removed. - Page 15 Chapter 4 Un-install Compex WLP54G Utility Wait until you see the Atheros Client Installation Program screen. Select Uninstall the previous installation. Then click on the Next> button to proceed. The prompt screen appears to notify you that the uninstall option requires the system to be rebooted at the end of the uninstall process.
- Page 16 Chapter 4 Un-install Compex WLP54G Utility After about 30 seconds, you will be asked to decide whether to remove the device driver or not. If Yes, the device driver will be removed. Otherwise if NO, the device driver will not be removed.
- Page 17 Compex, Inc. may make improvements and/or changes to the product and/or specifications of the product described in this guide, without prior notice. Compex, Inc will not be liable for any technical inaccuracies or typographical errors found in this guide. Changes are periodically made to the information contained herein and will be incorporated into later versions of the guide.
- Page 18 WARRANTY REGISTRATION CARD Register via the Internet at http://www.cpx.com [M-0088-V2.4C] or http://www.compex.com.sg To activate the warranty, please complete this card and return to Compex within ninety (90) days from the date of purchase. Please e-mail this warranty card to support@compex.com.sg. Product:...
- Page 19 Manual Number: M-0494-V1.1C Version 1.1 July 2005...
