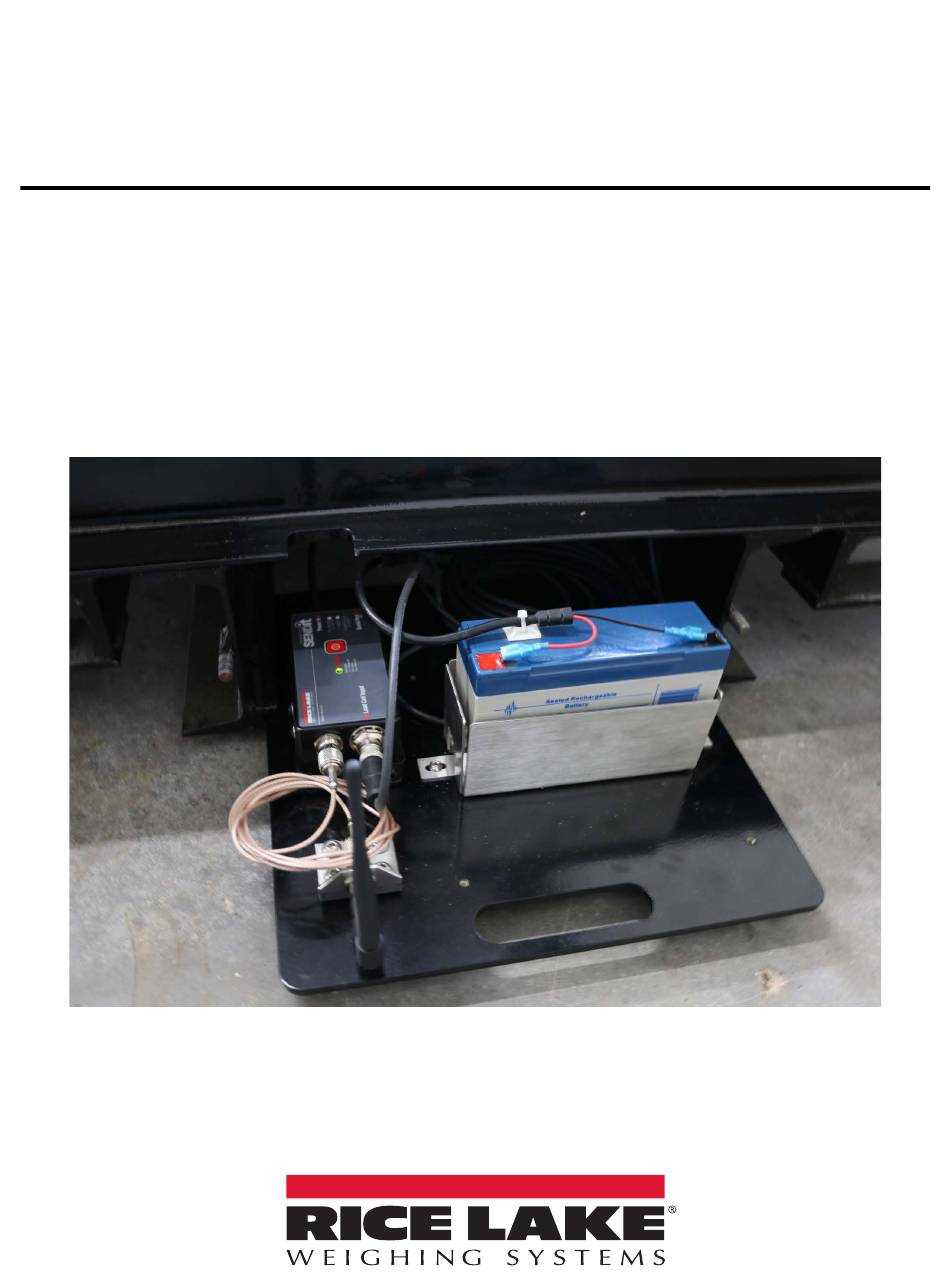

- Page 1 RoughDeck HP SENDit Portability Frames SENDit Kit Assembly Installation Manual February 27, 2023 PN 216475 Rev A...
- Page 2 All information contained within this publication is, to the best of our knowledge, complete and accurate at the time of publication. Rice Lake Weighing Systems reserves the right to make changes to the technology, features, specifications and design of the equipment without notice.
- Page 3 Description February 27, 2023 Initial manual release with product launch Table i. Revision Letter History Technical training seminars are available through Rice Lake Weighing Systems. Course descriptions and dates can be viewed at www.ricelake.com/training or obtained by calling 715-234-9171 and asking for the training department.
-
Page 4: Table Of Contents
Routine Calibration................21 Rice Lake continually offers web-based video training on a growing selection of product-related topics at no cost. -
Page 5: Introduction
Do not operate or work on this equipment unless this manual has been read and all instructions are understood. Failure to follow the instructions or heed the warnings could result in injury or death. Contact any Rice Lake Weighing Systems dealer for replacement manuals. -
Page 6: Sendit Kit Overview
Cordset IP68 M12 4-Pin Male Shielded 164865 Cable Assembly, Serial I/O DCE D9 Sockets 150964 Table 1-1. Non-NTEP SENDit Kit Parts NOTE: The 9-pin cable (Item G) is only needed for the initial SENDit transmitter calibration. www.RiceLake.com Visit our website... -
Page 7: Ntep Kit
Power Adapter, 18W 6VDC Wall Mount. Universal Input 90-264VAC. 2.1mm Coax Power Plug. 160110 International Plugs Contains blades for international mains. US, UK, Europe, Aus, China Table 1-3. Power Connection Options © Rice Lake Weighing Systems ● All Rights Reserved... -
Page 8: Sendit Front Panel
RoughDeck HP SENDit Portability Frames SENDit Front Panel Figure 1-3. Transmitter Front Panel Figure 1-4. Receiver Front Panel Item No. Description Load Cell connector (Transmitter) - located on the side of the unit. mV/V Output (Receiver) - located on the side of the unit. Transmitter Power LED –... -
Page 9: Fcc Compliance
What is the part number for the spare battery? 162173 Will leaving a battery on the charger cause damage? The charger has a “float” mode, meaning the battery will not be overcharged or damaged. © Rice Lake Weighing Systems ● All Rights Reserved... -
Page 10: Installation
SENDit transmitter and receiver units are factory paired. Take care when unpacking orders of multiple units to keep the paired sets together. In the event a transmitter or receiver must be replaced or the units must be re-paired, contact Rice Lake Weighing Systems and have the Serial Number ready for the transmitter or receiver. -
Page 11: Assembly And Wiring
4. Using a 3/32 inch hex key wrench, install SENDit Transmitter onto mounting plate assembly using the provided 3/32 inch screws. NOTE: Blue thread lock is recommended for installing the lock washers on the 3/32 inch screws during the SENDit Transmitter installation. Figure 2-3. SENDit Transmitter Installation © Rice Lake Weighing Systems ● All Rights Reserved... - Page 12 RoughDeck HP SENDit Portability Frames 5. Set the antenna bracket mount in its designated mounting location. NOTE: The vertical side of the antenna bracket mount needs to face away from the SENDit transmitter. As shown in Figure 2-5. 6. Using the 5/32 inch hex key wrench, install antenna bracket mount onto the mounting plate assembly with provided 5/ 32 inch screws.
-
Page 13: Wire Connections
3. Wind up all loose wiring and place in a secure location on the mounting plate. IMPORTANT: All wires must be wound up and placed away from the RoughDeck mounting plate insertion slots to avoid pinching and wire damage. © Rice Lake Weighing Systems ● All Rights Reserved... -
Page 14: Installing The Mounting Plate On The Roughdeck Hp Frame
RoughDeck HP SENDit Portability Frames Installing the Mounting Plate on the RoughDeck HP Frame IMPORTANT: The scale must be lifted from a side that is away from the junction box. WARNING: The RoughDeck HP is heavy and could cause bodily harm if body parts are caught under it when installing. Do not lift the scale while loaded. - Page 15 13. Install wing nuts on the baseplate cover. See Figure 2-11. NOTE: Access to the mounting plate is needed during calibration (Section 3.0 on page 17). Figure 2-11. Cover Plate Installation © Rice Lake Weighing Systems ● All Rights Reserved...
-
Page 16: Connecting The Sendit Transmitter To The Sendit Receiver (Non-Ntep)
3. Power on the SENDit Transmitter on the mounting plate in the frame. 4. Power on the SENDit Receiver. The SENDit transmitter and the SENDit receiver should automatically pair together. If they do not pair, contact Rice Lake Weighing Systems for assistance. -
Page 17: Calibration
1. Power on the transmitter and receiver units. 2. On the connected computer, navigate to the MSI mV Scale Calibration program. 3. Double click 4. Select Calibration from the drop-down menu. Figure 3-1. Calibration 5. Press © Rice Lake Weighing Systems ● All Rights Reserved... - Page 18 RoughDeck HP SENDit Portability Frames Select the COM port the SENDit receiver is connected to from the drop-down menu. NOTE: If no COM port selection is available, ensure the serial cables are properly connected, the drivers are installed properly and that the SENDit Pair is powered up. Once an acceptable connection has been made, restart the Calibration program. NOTE: The drivers are for USB-to-Serial conversion that can be used to connect the computer to the scale.
- Page 19 14. Enter the test weight total value in the weight dialogue box. 15. Press . Calibration Complete displays. Figure 3-7. Calibration Complete 16. Press to return to the calibration start display. © Rice Lake Weighing Systems ● All Rights Reserved...
-
Page 20: Initial Calibration With The Sendit Transmitter (Ntep)
RoughDeck HP SENDit Portability Frames Initial Calibration with the SENDit Transmitter (NTEP) The NTEP SENDit connects to an MSI-8004HD. 1. Power on the SENDit transmitter and MSI-8004HD. 2. Using the 9-pin serial cable, connect the transmitter to a computer. This allows setup with the MSI TranSend mV/ SENDit Scale Calibration program. -
Page 21: Routine Calibration
18. Press to exit calibration. displays momentarily, then the unit returns to weigh mode. ZERO Repeat this procedure to calibrate all scales that are connected to the MSI-8004HD remote display. © Rice Lake Weighing Systems ● All Rights Reserved... - Page 22 RoughDeck HP SENDit Portability Frames www.RiceLake.com Visit our website...
- Page 24 © Rice Lake Weighing Systems Content subject to change without notice. 230 W. Coleman St. • Rice Lake, WI 54868 • USA U.S. 800-472-6703 • Canada/Mexico 800-321-6703 • International 715-234-9171 • Europe +31 (0)26 472 1319 February 27, 2023 PN 216475 Rev A...
