Summary of Contents for Dyness WIFI-M01

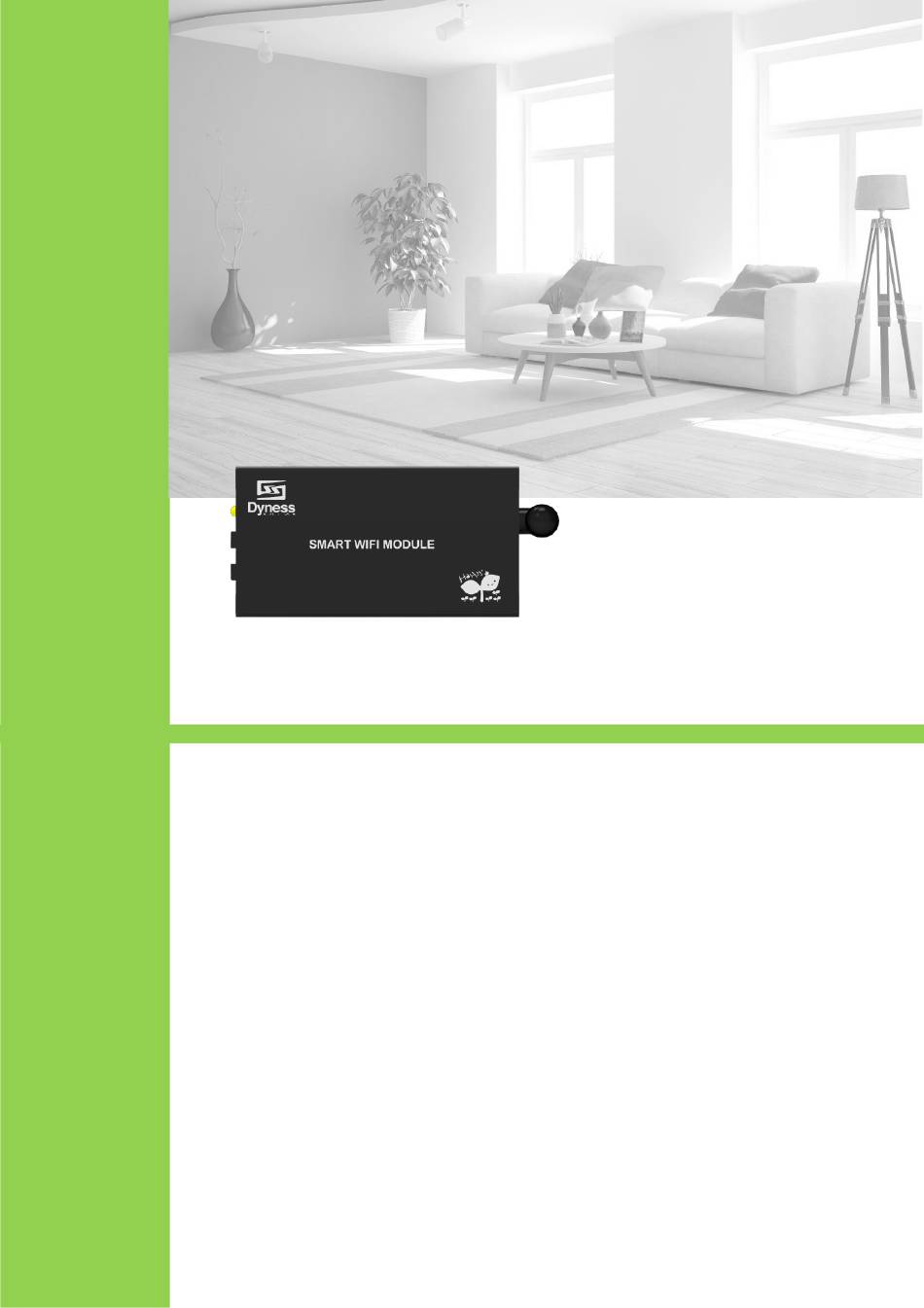

- Page 1 WIFI-M01 System User Manual...
- Page 2 Customer can check the related information on the website of Jiangsu Daqin New Energy Technology (taizhou) Co., Ltd when the product or technology is updated. URL：http://www.dyness-tech.com Please note that the product can be modified without prior notice. Revision History Revision NO.
- Page 3 WIFI-MO1 System User Manual S a f e t y P r e c a u t i o n s Warning 1. Please do not put the system into water or fire, in case of explosion or any other situation that might endanger your life.
- Page 4 M2M and other Internet of Things applications, and is an important component of intelligent hardware. Dyness WiFI-M01 system is used together with the battery, and the user can monitor the data through the Dyness Smart App, which is more convenient, efficient and intelligent.
-
Page 5: Table Of Contents
ERFORMANCE ARAMETER 2.3 I ....................3 NTERFACE EFINITION 2.3.1 Figure2-3.1 WIFI-M01 Front Panel of battery module ............ 3 2.3.2 Communication port ...................... 3 3 INSTALLATION AND CONFIGURATION ..............4 3.1 R ................... 4 EADY FOR INSTALLATION 3.1.1 Environmental requirements................... 4 3.1.2 Equipment preparation .................... -
Page 6: Introduction
WIFI-MO1 System User Manual 1 Introduction 1.1 Brief Introduction WiFi-M01 System is a very convenient product. The addition of WiFi System makes the battery more intelligent. The users can monitor the battery data through Dyness Smart APP anytime and anywhere, which is very convenient. -
Page 7: Product Specification
Protection Product Dimension Weight Voltage Level WIFI-M01 DC5V 75mm*25mm*40mm 200g IP20 2.2 Performance Parameter Table2-2 WIFI-M01 performance parameter Nominal Voltage Operating Voltage Range 4.5~5.5V Frequency 100MHZ Connection Type Wi-Fi/Bluetooth Protocol 802.11 B/G/N20 1-14@2.4GHz (CH1-11 for US/CA, CH1-13 for Channel EU/CN) -
Page 8: Interface Definition
WIFI-MO1 System User Manual 2.3 Interface Definition WIFI-M01 product panel interface configuration and function. This section details the interface functions of the front panel of the device。 2.3.1 Figure2-3.1 WIFI-M01 Front Panel of battery module item Name Definition Power display... -
Page 9: Installation And Configuration
Equipment that may be used are shown in table 3-1： Table 3-1 Name Dyness battery (with WiFi function) WiFi module network cable （both crystal heads are RJ11（6p6c），wires pin to pin，Dyness supply the cable） mobile phone (the Dyness smart app has been downloaded) WiFi （ 2.4GHz ）... -
Page 10: Equipment Connection
WIFI-MO1 System User Manual 3.2 Equipment connection 3.2.1 connection preparation Scan the QR code or click the URL below to download the APP https://testapp.tuya.com/dynesstech?version=1.0.0&appId=205732055 Register after the APP is installed，click “Sign Up”，choose“ Local Region”， Input “Phone number or email address”，Click “Get Verification Code” ，Input Verification Code，Registration completed. -
Page 11: Steps Of Connection (Ap Mode)
2, The mobile phone is connected to the 2.4GHz wireless network ,enter "home page" of the app, then click the" ","Add manually" , "Dyness-LV". 3, Please choose device’s interface of the app in AP Mode, click the RESET Button of the WiFi module once, waiting for the WiFi module green light is... - Page 12 WIFI-MO1 System User Manual 4, Click the RESET Button of the WiFi module again, waiting for the green light is blinking slowly, click on the "confirm the indicator is blinking slowly" of the APP. Click "Next" continue...
- Page 13 WIFI-MO1 System User Manual 5, Enter the WiFi name and password your mobile phone is using.then click "next" , On the page that pops up,choose the WiFi which name is SmartLife- XXXX,then click "Go to Connect". 6, After connected to the WiFi " SmartLife-XXXX " ,then Return to the APP interface and you can see "Adding device..."...
- Page 14 WIFI-MO1 System User Manual...
-
Page 15: Troubleshooting
The network connection the network isn’t 2.Whether to connect to a has timed out configured successfully hotspot 3. Verify that the WIFI password is correct If you have any technical help or question, please contact Dyness in time. - Page 16 Daqin New Energy Tech (Taizhou) Co., Ltd Address: Building 13, Kunshan Jiangyan Industrial Park, Chenzhuang West Road, Jiangyan District, Taizhou City, Jiangsu Province, China, 225500. Email: sales@dyness-tech.com Website:www.dyness-tech.com.cn...
