About this Practice:
This practice has been reissued to:
• Add lamp replacement procedure
to Installation section.
Reissued Practices: Updated and
new content can be identified by a
banner in the right margin.
Issue date: February 1999
Copyright 1999 by Dantel, Inc. • Dantel is a registered trademark of Dantel, Inc. • ISO 9001 Registered
B23-41070 A

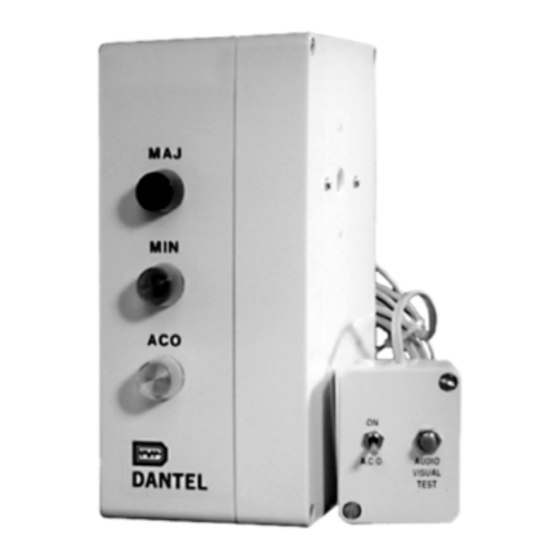

D
ISPLAY
Table of Contents
Ordering Information ........................................................................... 2
General Description .............................................................................. 2
Circuit Description ............................................................................... 2
Application Information ....................................................................... 4
Installation ............................................................................................ 9
Operation ............................................................................................ 12
Technical Specifications ..................................................................... 12
Warranty ............................................................................................. 14
CAUTION
•
Install or remove modules from the shelf only when the power is off.
If you install a module in the shelf with the power on, the internal
circuitry may suffer damage and the product warranty will be void.
•
Remove and install circuit boards only in a static-safe environment
(use antistatic wrist straps, smocks, footwear, etc.).
•
Keep circuit boards in their antistatic bags when they are not in use.
•
Do not ship or store circuit boards near strong electrostatic, electromag-
netic, magnetic, or radioactive fields.
•
For more complete information on electrostatic discharge safety
precautions, refer to Bellcore
Printed in the U.S.A.
I
& O
NSTALLATION
41070-0299 <90-00125>
LARM
U
NIT
Technical Reference # TR-NWT-000870.
TM
M
PERATION
ANUAL
Advertisement
Related Manuals for Dantel B23-41070
Summary of Contents for Dantel B23-41070
-
Page 1: Table Of Contents
For more complete information on electrostatic discharge safety precautions, refer to Bellcore Technical Reference # TR-NWT-000870. Issue date: February 1999 Copyright 1999 by Dantel, Inc. • Dantel is a registered trademark of Dantel, Inc. • ISO 9001 Registered Printed in the U.S.A. -
Page 2: Ordering Information
ORDERING INFORMATION NOTE: This section lists the different options available for this product. To order any of the avail- able options, contact Dantel Inside Sales through our toll-free number, 1-800-432-6835. OPTION NUMBER FEATURES B23-41070-00 Alarm Display Unit A25-00020-00 Replacement Lamp #48PSB... - Page 3 CIRCUIT DESCRIPTION ♦ Depending on which relay is energized, current goes to the MAJ or MIN lamp and to the audible alarm. ♦ The audible alarm sounds when there is an alarm if the re- mote ON/ACO switch is in the ON position. You can change the alarm volume by adjusting a screw on the right side of the display box.
-
Page 4: Application Information
ULTIPLE LARM RANSMITTERS Inputs to the Alarm Display Unit can come from the A through D alarm level relay outputs from Dantel’s 46009 and 46010 Multiple Alarm Transmitters (MATs). Refer to Fig. 2. . 2 - T , 46009 46010 M... - Page 5 UDIBLE LARM ODULE You can tie alarm outputs from the relays of Dantel’s 46017 Summary Audible Alarm Module (SAAM) to the Alarm Display Unit’s inputs. The SAAM has two groups of alarms. Each group has eight inputs but only one output. As a result, the SAAM can accept only two levels of alarms, which can come from MATs or Dantel’s 46020 Multiple Alarm Processor (MAP).
- Page 6 UMMARY LARM ODULE Dantel’s 46019 Summary Alarm Module (SAM) has four inputs to accept the A-D alarm outputs of a MAP. The SAM relay outputs are wired to the Alarm Display Unit’s inputs. Refer to Fig. 4. . 4 - T...
- Page 7 ONTROL OINT ODULES Dantel’s 46028 and 46029 Control Point Modules (CPMs) can “echo” alarms from MATs. If you use this application, you can connect the outputs of the CPMs to the Alarm Display Unit’s inputs for alarm indication. Refer to Fig. 5.
- Page 8 APPLICATION INFORMATION TATUS ONITOR The audible and visual alarm outputs from Dantel’s 46001 Status Monitor can be wired to the Alarm Display Unit’s inputs. Refer to Fig. 6. . 6 - T , 46001 S YPICAL ELAY ONNECTIONS TATUS ONITOR...
-
Page 9: Installation
INSTALLATION To install the 41070 Alarm Display Unit, refer to Fig. 7, and follow these steps: 1. Remove the cover. Take the cover off the display box to gain access to the wire wrap pins inside. . 7 - W OCATIONS 2. - Page 10 The unit operates at -48 VDC. to the +48V pin. For -24 VDC operation, contact Dantel’s Field Service Depart- ment. 8. Wire the relay outputs, if needed. Each of the three relays in the display box has a set of contacts for remote sending of the alarm inputs.
- Page 11 Using a twisting motion, gently pry up on the lens until it pops off. Pull out the defective lamp. Insert new lamp. Press lens back on. The lamps are type 48PSB and can be ordered from your local electronics store or from Dantel using part number A25-00020-00. 41070-0299 <90-00125>...
-
Page 12: Operation
OPERATION o make sure the lamps and audible alarm are working, push the AUDIO-VISUAL TEST button on the remote switch box. To enable the audible alarm, put the ON/ACO switch on the remote switch box in the ON position. To disable the audible alarm, put the ON/ACO switch in the ACO position. - Page 13 NOTES 41070-0299 <90-00125>...
-
Page 14: Warranty
To ensure expedient processing of your order, provide a purchase order number and shipping and billing information when requesting an RMA number. Also, when the units are returned to Dantel, include a descrip- tion of the failure symptoms for each unit returned. Send defective equipment to: Dantel, Inc.
