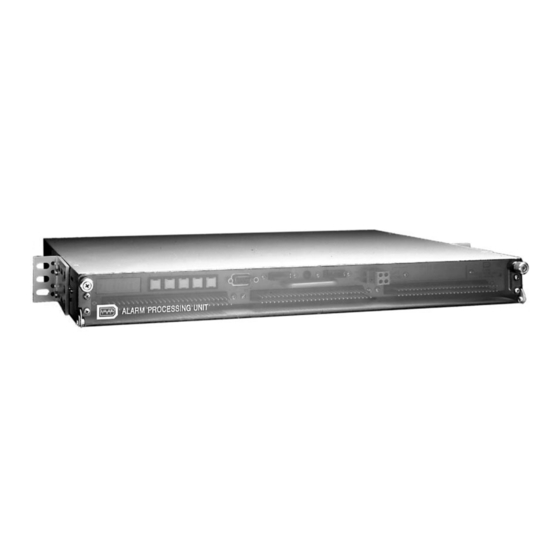

Dantel 46131 Installation & Operation Manual

Alarm processing unit
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
About this Practice:
This practice has been reissued to:
• Move Troubleshooting section to
inside the Installation section.
• Document RS-485 capability on
the receive side of responder ports
1 and 2, and the 8 TBOS ports
(multiple references).
• Update discussion of port activity
monitoring in the Installation and
Operation sections.
Reissued Practices: Updated and
new content can be identified by a
banner in the right margin.
Issue date: May 1998
Copyright 1998 by Dantel, Inc. • Dantel is a registered trademark of Dantel, Inc. • ISO 9001 Registered
46131 A
P
ROCESSING

Table of Contents

Ordering Information ........................................................................... 2
General Description .............................................................................. 2
Circuit Description ............................................................................... 3
Installation ............................................................................................ 6
Operation ............................................................................................ 28
Subassembly Installation ................................................................... 31
Circuit Board Replacement ................................................................ 35
Technical Specifications ..................................................................... 36
Warranty ............................................................................................. 38
CAUTION
•
Install or remove modules from the shelf only when the power is off.
If you install a module in the shelf with the power on, the internal
circuitry may suffer damage and the product warranty will be void.
•
Remove and install circuit boards only in a static-safe environment
(use antistatic wrist straps, smocks, footwear, etc.).
•
Keep circuit boards in their antistatic bags when they are not in use.
•
Do not ship or store circuit boards near strong electrostatic, electromag-
netic, magnetic, or radioactive fields.
•
For more complete information on electrostatic discharge safety
precautions, refer to Bellcore
Printed in the U.S.A.
I
NSTALLATION
LARM
(APU)
TM
Technical Reference # TR-NWT-000870.
& O
M
PERATION
ANUAL
46131-0598 <90-00018>
U
NIT

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 46131 and is the answer not in the manual?

Questions and answers

Related Manuals for Dantel 46131

Summary of Contents for Dantel 46131

  • Page 1: Table Of Contents

    For more complete information on electrostatic discharge safety Issue date: May 1998 precautions, refer to Bellcore Technical Reference # TR-NWT-000870. Copyright 1998 by Dantel, Inc. • Dantel is a registered trademark of Dantel, Inc. • ISO 9001 Registered Printed in the U.S.A.

  • Page 2: Ordering Information

    ORDERING INFORMATION NOTE: This section lists the different options available for this product. To order any of the avail- able options, contact Dantel Inside Sales through our toll-free number, 1-800-432-6835. OPTION NUMBER FEATURES A15-46131-00 Alarm Processing Unit; 32 discrete alarm inputs, 8 control outputs, 8 serial (TBOS) alarm...

  • Page 3: Circuit Description

    CIRCUIT DESCRIPTION ig.1 shows the functional schematic for the 46131 Alarm Processing Unit. ISCRETE LARM NPUTS All options The main APU circuit board has 32 discrete alarm inputs that are optically isolated. Alarms 1-24 each have a single input that requires a ground to activate the alarm circuitry.
  • Page 4 RS-232 RD SEVEN-SEGMENT DISPLAYS OPTICALLY RESPONDER PORT 2 ISOLATED INPUT ACK COS -BATT Power Supply BACK PANEL CONNECTOR CIRCUIT RESET X201 2 AMP -BATT 1 2 3 CURRENT LIMITER OUTPUT FUSE ALARM CIRCUIT RJ-11 +5 VDC CONFIGURATION PORT 46131-0598 <90-00018>...
  • Page 5 (1) when all the alarms clear or (2) when a timer expires after 15 minues. Manually reset the relay either by applying a ground at the ACK COS input or by pushing the front panel acknowlege button. 46131-0598 <90-00018>...

  • Page 6: Installation

    If the fuse fails, the fuse alarm (FA) LED on the front panel lights. A relay also operates an external alarm. INSTALLATION his section describes those steps necessary to install the 46131 APU. These include Equipment Mounting, Switch and Strap Settings, Wiring, Configuration, 202 Modem Checkout, and Troubleshooting. QUIPMENT...
  • Page 7 From the rear of the APU, install the other ESD stud and lockwasher into the frame next to the APU. Secure tightly, ensur- ing proper grounding of the ESD stud. Place an ESD label next to the ESD stud. End of equipment mounting. 46131-0598 <90-00018>...
  • Page 8 UP -20 to -40 dBm output DOWN -1 to -20 dBm output S802 S803 (Responder Port S804 Responder Termination) S805 Ports S806 S801 (TBOS Port X801 EXPANSION CARD A = RS-232 Termination) B = RS-422/485 SUBASSEMBLY X802 . . . CONTINUED 46131-0598 <90-00018>...
  • Page 9 ON * RS-422/485 Receive Not Terminated * Factory Settings NOTE: To change the switches, remove the 202 modem subassembly (options -20 and -21 only). Terminate a port (switch ON) if it is not used..CONTINUED 46131-0598 <90-00018>...
  • Page 10 Control Outputs 11-12 Normally Closed S1 Position A * Control Outputs 13-14 Normally Open S1 Position B Control Outputs 13-14 Normally Closed S1 Position A * Control Outputs 15-16 Normally Open S1 Position B Control Outputs 15-16 Normally Closed * Factory Settings 46131-0598 <90-00018>...
  • Page 11 -01 and -21). Wire the inputs to equipment that puts out a ground signal when there is an alarm. P2 is available for ground reference. . 6 - C ONNECTOR LOCATIONS FOR IRING MODEM -BATT FUNCTIONS PUSHBUTTONS READOUTS AUXILIARY ALARM FUNCTIONS PROCESSING UNIT -BATT 46131 . . . CONTINUED 46131-0598 <90-00018>...
  • Page 12 Discrete Input 63 Discrete Input 14 Discrete Input 64 . 7 - A LARM NPUTS ALARM INPUTS 1-24 AND 33-64 ALARM ALARM PROCESSING UNIT SOURCE Ground Return to Pins P2-53 and 55 or Other Ground Reference . . . CONTINUED 46131-0598 <90-00018>...
  • Page 13 Control Relay Output 6 Ground Out (use for alarm Control Relay Output 7 point ground reference) Control Relay Output 7 Negative Battery Out (for alarm points 25-32 if battery reference is needed.) . . . CONTINUED 46131-0598 <90-00018>...
  • Page 14 TBOS serial interrogator ports, the three responder ports, and the configuration port. The wiring is for all options except for the 202 modem responder port, which is for options -20 and -21 only. End of this wiring section. 46131-0598 <90-00018>...
  • Page 15 Not Used TBOS Serial Port 8 RX+ Not Used TBOS Serial Port 8 TX- Not Used TBOS Serial Port 8 TX+ Not Used Not Used Not Used Configuration Port TXD Configuration Port RXD Configuration Port GND Not Used 46131-0598 <90-00018>...
  • Page 16 RS-232 interface when connecting to a terminal. Pin 9 has +5 VDC on it. A special cable is available from Dantel that has pin 9 open. You can order the cable by part number A15-46133-00.
  • Page 17 F1 - Moves the Help screen up one line. F2 - Moves the Help screen down one line. F5 - Exits the Help screen. ♦ Configure the interrogator ports, responder ports, and the expansion board as described on the next page. End of section. 46131-0598 <90-00018>...
  • Page 18 Configure each responder port as described below for DCPF, DCP, TBOS, or TABS protocol. To configure a responder port for DCPF protocol: Use the F1 through F4 keys on the paddle to configure the port. Verify the DCPF protocol is selected..CONTINUED 46131-0598 <90-00018>...
  • Page 19 NOTE: With DCP protocol, certain address combinations result in reporting failures. The problem, a loss of synchronization in the addressing sequence, is inherent in DCP. Dantel recommends DCPF protocol because it maintains synchronization. End of section. . 10 - DCP...
  • Page 20 SING A ERMINAL Apply power to the APU and the dumb terminal or computer. Press push button 5 on the front of the APU until the letters “Crt” appear on the APU’s LED display..CONTINUED 46131-0598 <90-00018>...
  • Page 21 1, 2 and 4 (ports 1 and 2 are RS-232/422/485, port 3 is not used, and port 4 is the 202 modem port). Configure each responder port for DCP, DCPF, TBOS, or TABS protocol. The configuration steps for each protocol are listed separately below. 46131-0598 <90-00018>...
  • Page 22 1 = 300, 2 = 600, 3 = 1200, 4 = 2400, 5 = 4800, 6 = 9600. For port 4, the 202 modem port, the baud must be 1200. SELECT PARITY - Set for none. Type 1 if the parity is not set for none. 46131-0598 <90-00018>...
  • Page 23 With DCP protocol, certain address combinations result in reporting failures. The problem, a loss of synchronization in the addressing sequence, is inherent in DCP. Dantel recommends DCPF protocol because it maintains synchronization. Configuring a responder port for TBOS protocol: Type 2 from the configuration screen to display the responder port prompts.
  • Page 24 In the COS mode, the relay will close at the first alarm. If additional alarms occur, the relay will pulse once whenever there is a new alarm. The relay will open either when the COS timer expires in 15 minutes or when the alarms are acknowl- 46131-0598 <90-00018>...
  • Page 25 There is no other adjustment for this circuit. ROUBLESHOOTING USES There is a two-ampere fuse on the front panel of the APU. It protects power going to the APU and to pins P2-54 and P2-56. 46131-0598 <90-00018>...
  • Page 26 1, 3, and 5 simultaneously. LED T To test the operation of the front panel LEDs, press the front panel buttons 1 and 3 simultaneously. A “8” will appear on each LED display if all the segments of that LED are working. 46131-0598 <90-00018>...
  • Page 27 INSTALLATION I - C ABLE ONFIGURATION ORKSHEET 46131-0598 <90-00018>...

  • Page 28: Operation

    = TBOS port number (1-8) y = Display number within port zz = Point number within display -or- D zz where D = Discrete zz = Discrete number If there are no more alarms, “LOC” appears on the display. 46131-0598 <90-00018>...
  • Page 29 LED display returns to the alarm mode. YSTEM ESET Press buttons 1, 3, and 5 simultaneously. LED T Press buttons 1 and 3 simultaneously. All “8”s appear on the LED display if all the segments are working. 46131-0598 <90-00018>...
  • Page 30 With a dB meter (bridging), check the signal level at the XMT test points on the APU modem subassembly. Adjust the XMT LVL to obtain the level required for the application. Place the front panel TST (test) switch in the off (up) position..CONTINUED 46131-0598 <90-00018>...

  • Page 31: Subassembly Installation

    0 to -40 dBm, depending on the setting of switch S1 on the modem subassembly. There is no other adjustment for this circuit. SUBASSEMBLY INSTALLATION he 46131 APU has four options: 32 discrete alarm inputs 8 serial (TBOS) alarm interrogator ports 8 control outputs...
  • Page 32 Disconnect the 10-position connector in the middle of the main circuit board. Disconnect the 20-position connector on the left side of the main circuit board. Pull the main circuit board out ot the three 56-pin edge connectors on the front panel..CONTINUED 46131-0598 <90-00018>...
  • Page 33 202 Modem subassembly, the front panel of the subassembly should appear straight in the opening in the front panel of the APU. Reinstall the two screws in the lower left and lower right corners of the front panel..CONTINUED 46131-0598 <90-00018>...
  • Page 34 APU modem subassembly with a dB meter (bridging). The signal level should be 0 to -40 dBm, depending on the setting of switch S1 on the modem subassembly. There is no other adjustment for this circuit. Close the plastic front cover. Installation is complete. 46131-0598 <90-00018>...

  • Page 35: Circuit Board Replacement

    If you replaced the main circuit board, refer to the Configuration section of the Installation chapter to configure the APU. If you replaced the 202 modem subassembly, refer to the 202 Mo- dem Checkout section of the Installation chapter to set the sig- nal levels. End of section. 46131-0598 <90-00018>...

  • Page 36: Technical Specifications

    TECHNICAL SPECIFICATIONS - 46131 APU ECHNICAL PECIFICATIONS DESCRIPTION VALUE Input Voltage -21 to -56 VDC Input Current, max. (+15%) @ -21 VDC 520 mA @ -24 VDC 490 mA @ -48 VDC 395 mA @ -56 VDC 390 mA Heat Dissipation, max. (+15%) @ -21 VDC 37.3 Btu/Hr...
  • Page 37 TECHNICAL SPECIFICATONS - 46131 APU ( ECHNICAL PECIFICATIONS CONTINUED DESCRIPTION VALUE Configuration Port Communications ASCII Interface RS-232 Data Rate 9600 baud Change-of-State (COS) Relay Contact Type Normally Open, Dry Contact Contact Ratings 1A @ 24 VDC; 0.5A @ 125 VAC...

  • Page 38: Warranty

    To ensure expedient processing of your order, provide a purchase order number and shipping and billing information when requesting an RMA number. Also, when the units are returned to Dantel, include a descrip- tion of the failure symptoms for each unit returned. Send defective equipment to: Dantel, Inc.
