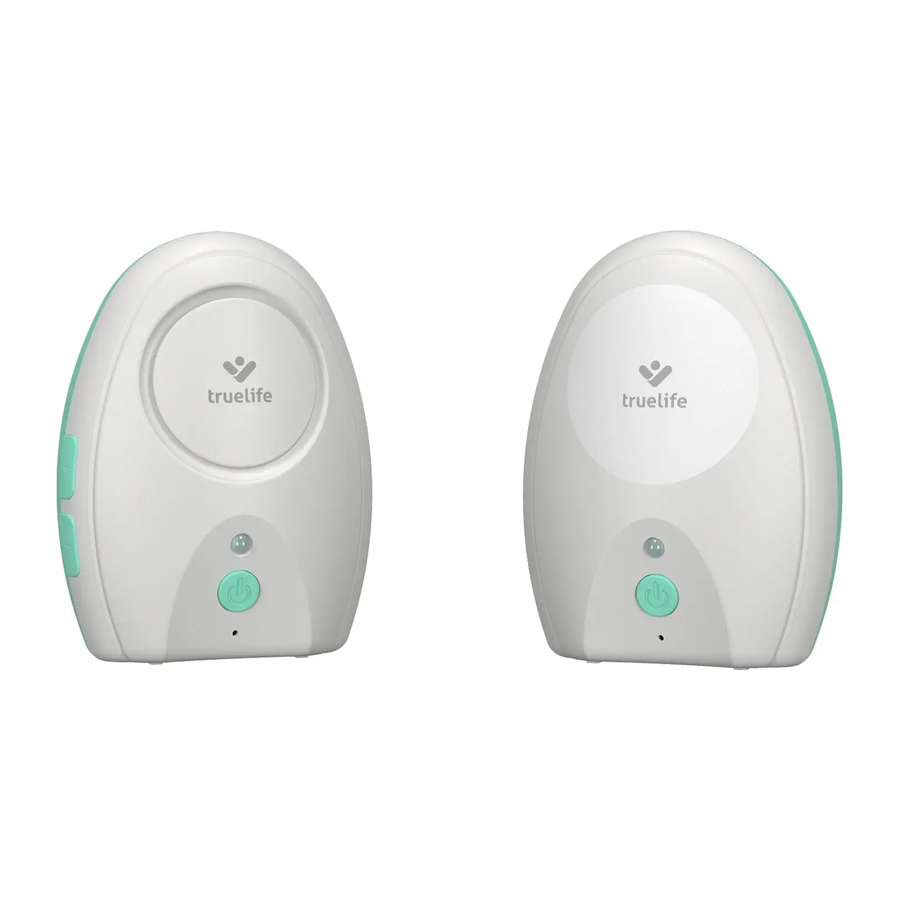

Truelife NannyTone VM Lite - Baby Monitor Manual

BOX CONTENTS

• Parent unit
• Baby unit
• 2 × micro USB cable
• 3 × AAA rechargeable batteries (inside the device)
• 3 × AAA batteries (non-rechargeable)
• Manual

DESCRIPTION OF PARENT UNIT

1. Power LED indicator
2. Power button (hold)
3. Volume control
4. Loudspeaker
5. Clip
6. Channel switch
7. Micro USB charging port
8. Battery compartment

DESCRIPTION OF THE BABY UNIT

1. Power LED indicator
2. Power button (hold)
   Night light on/off (press)
3. Night light
4. Microphone
5. Clip
6. Channel switch
7. Micro USB charging port
8. Battery compartment

GETTING STARTED

1. Parent unit

The parent unit is supplied with 3 rechargeable batteries inside the unit.

1. Hold down the power button for 2 seconds and the parent unit will turn on.
2. The green LED lights up when it is working properly.

Attention: Use only the supplied rechargeable batteries!
Attention: Under no circumstances charge the parent unit using non-rechargeable batteries!

2. Baby unit

Attention: For safety reasons, the baby unit requires a permanent connection to the mains.

Attention: If the baby unit is connected to the mains, it is strictly forbidden to use any batteries inside the unit. Failure to do so may result in damage to the equipment or a fire or explosion. The device does not have a charging circuit and therefore does not serve to recharge the batteries!

Attention: If the situation so requires, when it is not possible to connect the baby unit to the mains, you can power the baby unit with the supplied standard non-rechargeable batteries as another backup power source.

Attention: Keep cables out of the reach of children. Danger of strangulation!


Attention: Do not use quick chargers to power the baby unit and charge the parent unit!

NIGHT LIGHT

To turn the baby unit night light on or off, press the power button on the baby unit.

RANGE

• With increasing distance between the baby unit and the parent unit, the signal may be interrupted and thus the audio may gradually drop out. Loss of connection due to too great a distance from the baby unit will be indicated by the parent unit flashing a red LED and beeping every 3 seconds.
• The units have a tested distance of up to 50 m in the building and up to 700 m in the open.
• The range is conditioned depending on the environment where the baby monitor is used. Thick walls, reinforced concrete structures or steel structures can reduce the signal in the same way as, for example, the signals of other networks.

CHARGING

Use only the rechargeable batteries and cables that come included.

Parent unit

• When the device is switched on, charging is indicated by a flashing green LED. When fully charged, the LED lights up green.
• If the device is switched off, charging is indicated by a green flashing LED with the red LED continuously lit. When fully charged, the LED goes out.
• If the battery is low, the LED will flash red and the parent unit will beep every 30 seconds.

Baby unit

• The unit is not rechargeable.
• If non-rechargeable batteries are used, the unit will alert you to a low battery with a flashing red LED.

SPECIFICATIONS

Communication type: unidirectional
Frequency of two channels: 863.3Mhz and 864.5MHz
Range: 50 m in the building and 700 m in an open space
Parent unit battery life: 10-15 h (3 × AAA 1.2 V - rechargeable battery)
Baby unit battery life: 8 -12 h (3 × AAA 1.5 V - non-rechargeable battery)
Battery type: 3 × Alkaline AAA 1.5 V and 3 × NiMH AAA 1.2 V

MANUFACTURER'S LIABILITY

A warranty for manufacturing defects is provided for TrueLife products. In case of such defects, elem6 s.r.o. is obligated to repair or replace the defective part or product with a comparable part or product at its own discretion. Transfer, change or any other unauthorized handling of the product are not covered by this warranty. This includes situations that the product is lost or damaged due to a defect, negligence or other product faults. The warranty does not apply to damage following from use, accident or usual wear. Company elem6 s.r.o. does not accept any liability for any accidents, injuries, death, loss or other claims related to or following from the use of this product. Under no circumstances shall elem6 s.r.o. be held responsible for incidental or consequential damage related to or following from the use of this product or any of its parts. Returning or replacement of spare parts and/or the product may be subject to transportation, handling, replacement and/ or completion fees.

SAFETY WHEN WORKING WITH THE DEVICE

1. Carefully read the enclosed safety instructions.
2. For proper handling of the product, download and read the latest version of the manual, which can be downloaded at: https://www.truelife.eu/.
3. Use only the supplied rechargeable batteries for the parent unit.
4. When using batteries in the baby unit, use the supplied non-rechargeable batteries or choose Alkaline 1.5V AAA.
