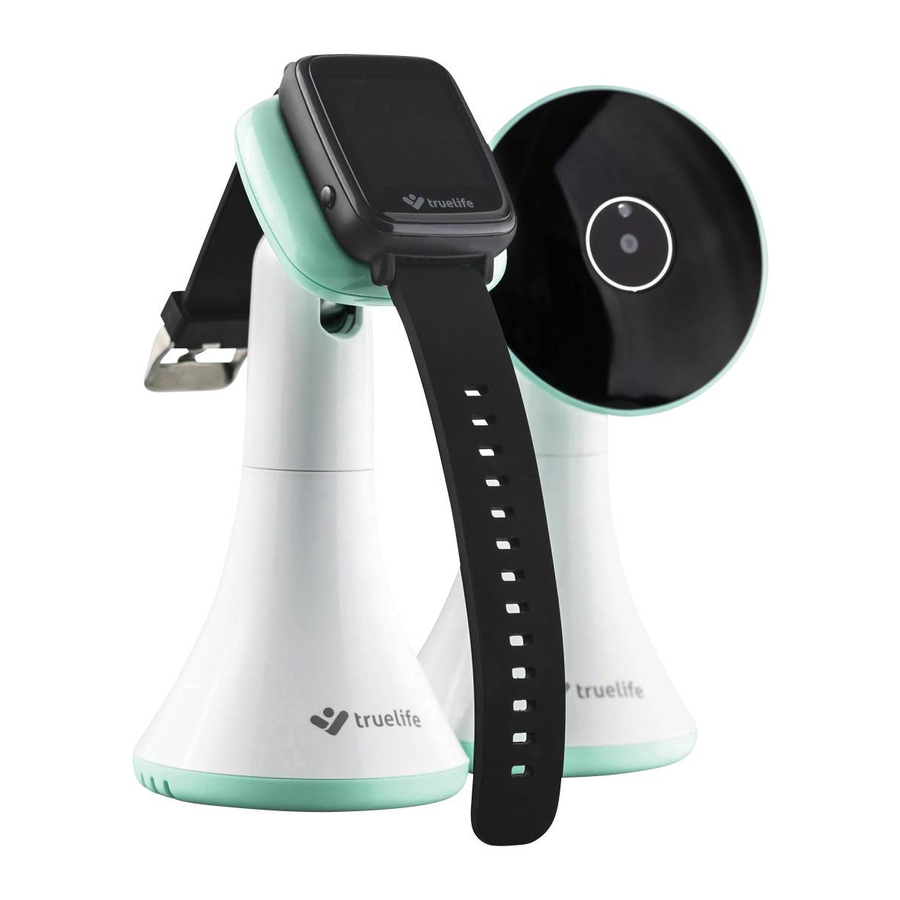

TrueLife NannyWatch A15 - Baby Monitor Manual

Table of Contents

Contents

1 Parent unit description
2 Baby unit description
3 Charging stand description
4 Installation
5 Screen
6 Menu
7 Pairing
8 Alarm
9 VOX
10 Settings
11 Contents of packaging
12 Manufacturer's liability
13 Documents / Resources
- 13.1 References
- 13.2 Download manual

Parent unit description

LCD screen
Increase volume / Move up/ Turn on/off VOX
Decrease volume / Move down / Push to Talk button
MENU / OK / Turn lullabies on/off
Turn on / Back / View time
Wireless charging
Speaker
Microphone

Baby unit description

Light sensor
Camera lens
LED indicator of whether the device is On or Off
Infrared LED light
Speaker
Pairing button
Microphone
Charging input
Temperature sensor

Charging stand description

Wireless connector for charging of the parent unit
Charging input

Installation

Connect the adapter to the charging input of the baby unit and connect it to a socket.
Place the parent unit to the charging stand and connect the stand to a socket.
The screen of the parent unit will show a charging icon, meaning that the battery is charging.
You can hang the baby unit on the wall or place it somewhere near the baby.
The camera head is adjustable, you can turn it in whichever direction you want.
Pair the devices – see the "Pairing" section.

Screen

Signal strength indicator
Temperature in the baby's room*
Lullaby signalization
VOX mode indicator
Active alarm indicator
Battery status
Indicator of active Push to Talk (microphone)
Date and time
*Note: The thermometer in the baby unit is not certified and the displayed temperature is only indicative.

Press the "Menu/OK" button to enter the menu.

Camera settings
Alarm settings
VOX function settings
General settings

Press "Move up" and "Move down" to move from one option to another and press "MENU/OK" to confirm your selection. Press "Back" to return.

Pairing

In the Menu, confirm the "Camera" option for pairing. Confirm "Register" by pressing "Menu/Ok". Then, hold the button at the back of the camera until the pairing is complete.
*Note: The parent and baby units are paired by default and do not need to be paired again. Choose this option if you want to perform a new pairing of the units, e.g., when the signal is constantly being lost.

Alarm

Confirm "Alarm" in the menu. Press "Move down" to move between the values and press "Move up" to change the value as required.

VOX

This enables and/or disables the VOX function, sets its sensitivity and turns vibrations on and off. If the VOX mode is enabled, during live view the screen is turned off after a moment of silence and the sound transmission is reduced to save battery.

Settings

Enter the "Settings" to set the language, time and date, temperature units, wave length, and screen backlight. "Settings" also includes information about the system and current Firmware.

Contents of packaging

Parent unit + power adapter
Baby unit + power adapter
Charging stand
Manual

Manufacturer's liability

A warranty for manufacturing defects is provided for TrueLife products. In case of such defects, elem6 s.r.o. is obligated to repair or replace the defective part or product with a comparable part or product at its own discretion. Transfer, change or any other unauthorized handling of the product are not covered by this warranty. This includes situations that the product is lost or damaged due to a defect, negligence or other product faults. The warranty does not apply to damage following from use, accident or usual wear. Company elem6 s.r.o. does not accept any liability for any accidents, injuries, death, loss or other claims related to or following from the use of this product. Under no circumstances shall elem6 s.r.o. be held responsible for incidental or consequential damage related to or following from the use of this product or any of its parts. Returning or replacement of spare parts and/or the product may be subject to transportation, handling, replacement and/or completion fees.
Typing and printing errors are reserved.

SAFE USE OF THE DEVICE:

Read the attached safety instructions carefully.
In order to correct use the product, make sure to read the latest version of the manual – available for download at www.truelife.eu.
Typing and printing errors are reserved.

Manufacturer:
elem6 s.r.o., Braškovská 15, 16100 Prague 6, Czech Republic
