NOTE: THIS PAGE REPLACES PAGE 15 IN YOUR PLAN

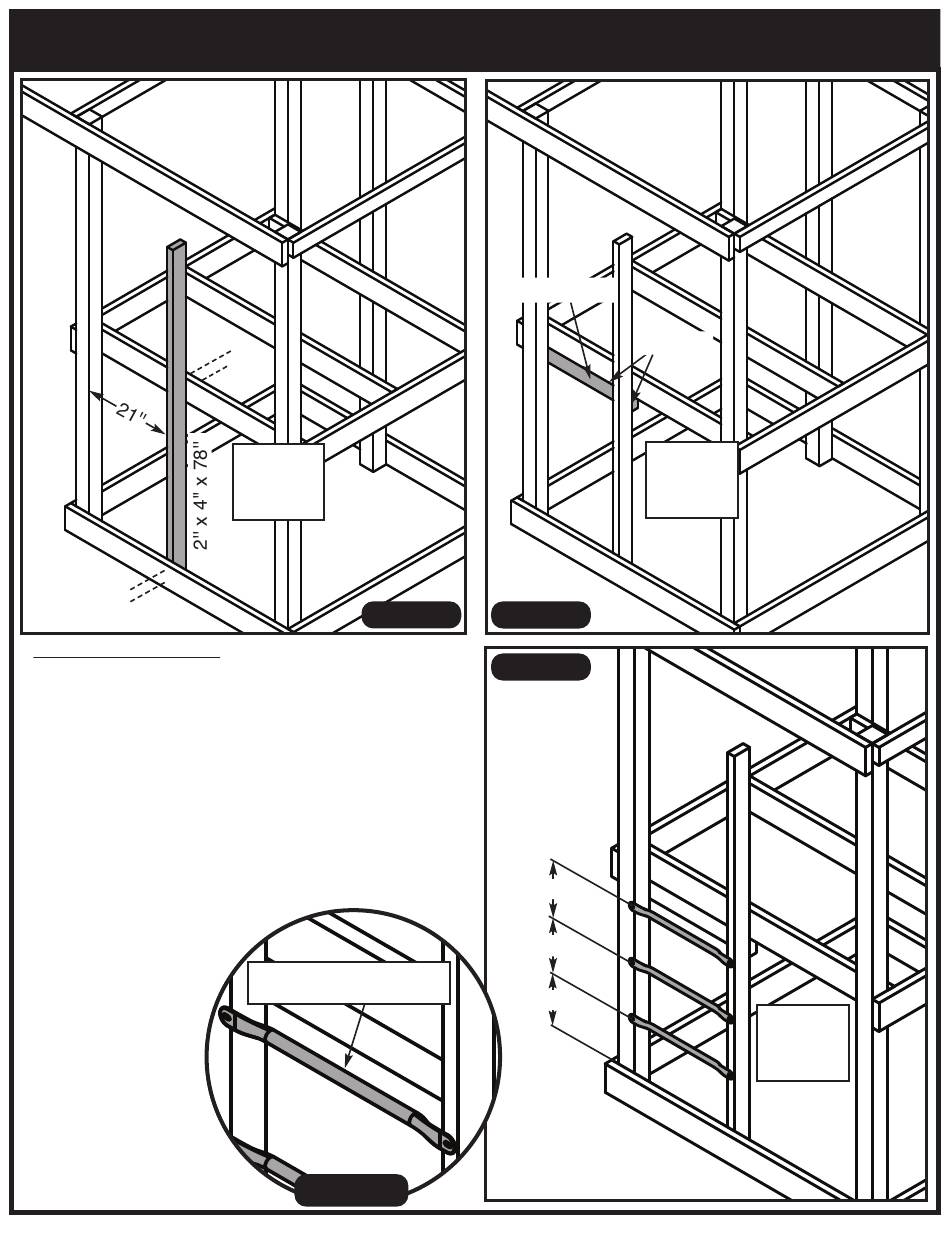

B. Ladder Assembly
1. Install 2'' x 4'' x 78'' Ladder Support Board as
shown in (Fig. 8).
2. Install 2'' x 4'' x 26'' Ladder Spacer Board as
shown in (Fig. 8a).
3. Attach Metal Ladder Rungs as shown in
(Fig. 9).
NOTE: For safety purposes, the body of the
Metal Ladder Rungs must face inward, towards
the tower, as shown in (Fig. 9a).
© PlayCore Inc. 2013
(2)
16D
galvanized
nails per joint
Fig. 8
Body of Rung Must Face
Inward
Fig. 9a
2'' x 4'' x 26''
Fig. 8a
Fig. 9
10-7/8''
10-7/8''
10-3/8''
Printed in the USA
FLUSH
(2)
16D
galvanized
nails per joint
(2)
2'' Lag
Screws
per rung
LA 6725
