- Page 1 TEMP-WM and TEMP-DM Transmitter INSTRUCTION MANUAL - V1.0x F NOVUS AUTOMATION 1/11...
-
Page 2: Table Of Contents
MECHANICAL INSTALLATION ..................................4 3.2. ELECTRICAL INSTALLATION ..................................5 3.2.1 INSTALLATION RECOMMENDATIONS ............................5 CONFIGURATION......................................5 SOFTWARE AND APP ....................................6 4.1.1 SIGNOW SOFTWARE ..................................6 4.1.2 TXCONFIG SOFTWARE ...................................7 4.1.3 SIGNOW APP ....................................8 SMARTPHONE CONNECTIONS ................................9 SPECIFICATIONS ......................................10 CERTIFICATIONS ........................................10 WARRANTY ........................................11 NOVUS AUTOMATION 2/11... -
Page 3: Safety Alerts
All safety recommendations appearing in this manual must be followed to ensure personal safety and prevent damage to the instrument or system. If the instrument is used in a manner other than that specified in this manual, the device’s safety protections may not be effective. NOVUS AUTOMATION 3/11... -
Page 4: Presentation

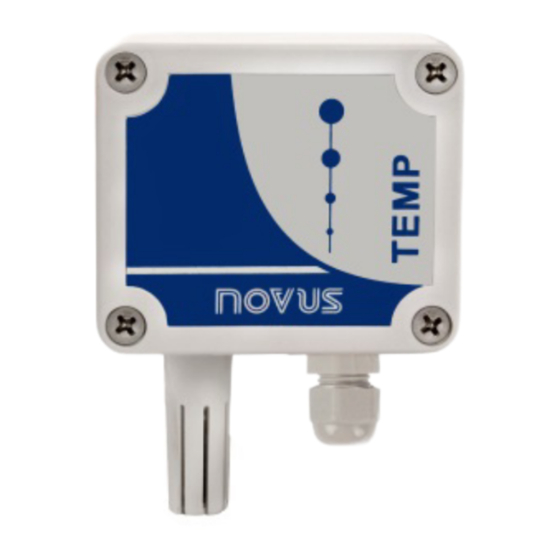

Model TEMP-DM dimensions The model TEMP-WM (Wall Mount) was designed to be mounted directly onto a wall. With the cover off, the user can access the 2 fixing points and the signal connector, as shown in Figure 3. The transmitter sensor capsule must be placed faced down in order to assure the specified accuracy and protection level. -
Page 5: Electrical Installation
SMARTPHONE CONNECTIONS chapter). On NOVUS website, you can download the configuration software for free. To install it, simply run the file SigNowSetup.exe or the file TxConfigIISetup.exe and follow the instructions in the installer. The SigNow setup application can be downloaded for free from the Google Play Store or the App Store. -
Page 6: Software And App
When selecting the Maximum option, the output current is > mA (up-scale). Typically used in heating systems. 6. Zero correction: Allows you to make small sensor corrections. In the SigNow manual, available on NOVUS website, you can get more specific information about the buttons and the process of diagnostics and firmware update. -
Page 7: Txconfig Software
• 0 °C of zero correction. • Upscale when sensor fails. Serial port configuration errors may occur when other software are sharing the same serial port. Close all serial port applications prior to using the TxConfig software. NOVUS AUTOMATION 7/11... -
Page 8: Signow App
When you open the Config section, you can configure the parameters displayed in the SIGNOW SOFTWARE section. In the SigNow manual, available on NOVUS website, you can find more information about the buttons and the diagnostic process. NOVUS AUTOMATION 8/11... -
Page 9: Smartphone Connections
To do this, as shown in Figure 12, you need to observe how to connect the OTG cable to the equipment: Figure 12 – OTG cable If you position the cable end incorrectly, it is possible that the device will not be recognized by the application. NOVUS AUTOMATION 9/11... -
Page 10: Specifications
Temperature measurement Measuring Range: Configurable between -50 and 120 °C (see Operating limits) Factory setting: 0 and 100 °C TEMP-WM model: Electronic circuit: -20 to 65 °C TEMP-DM model: Electronic circuit: -20 to 65 °C Operating limits Sensor and Probe: -40 to 100 °C Note: For temperatures above 65 °C or below -20 °C, a maximum of 50 % of the probe length (TEMP-DM) -
Page 11: Warranty
WARRANTY Warranty conditions are available on our web site www.novusautomation.com/warranty. NOVUS AUTOMATION 11/11...
